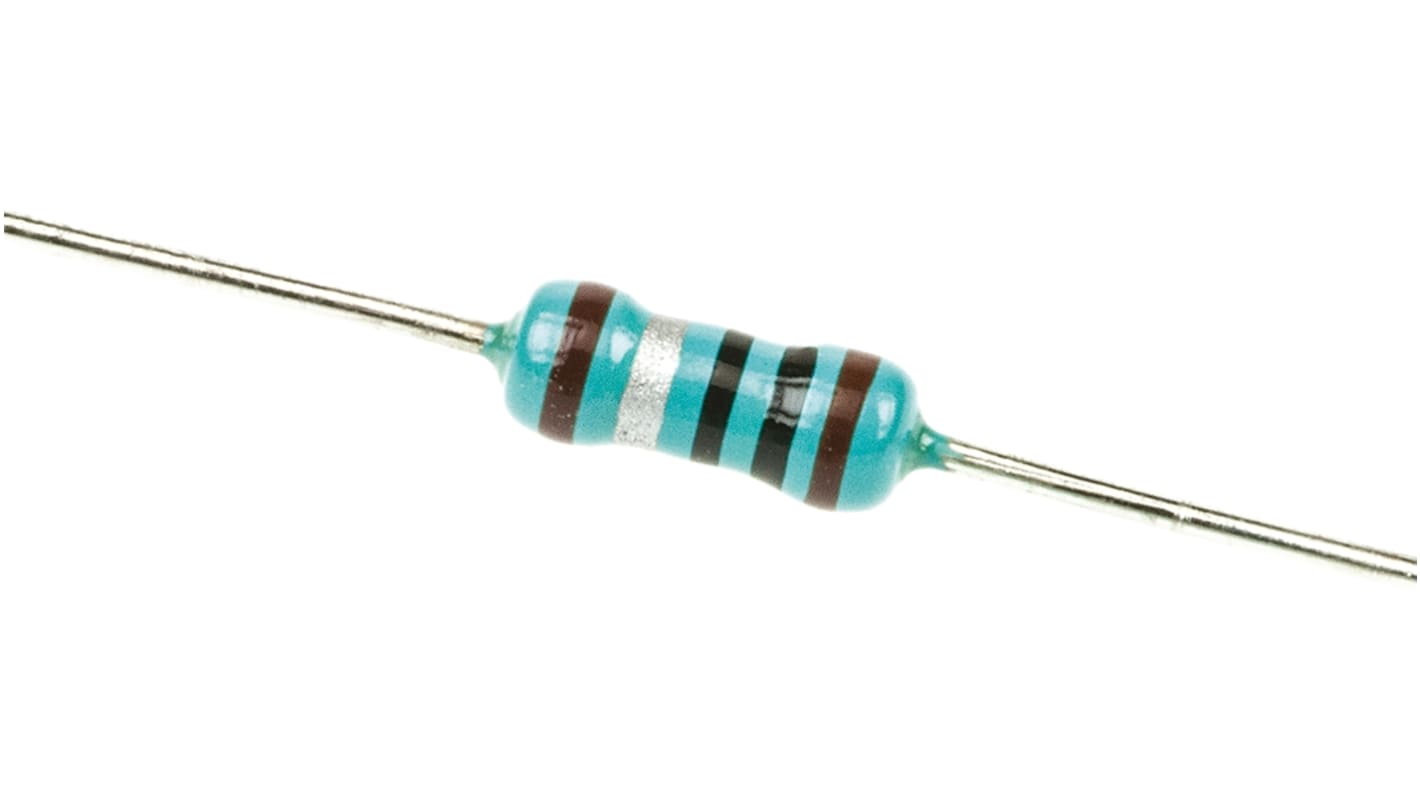

TE Connectivity 1Ω Metal Film Resistor 0.6W ±1% LR1F1R0

View all Through Hole Resistors
Discontinued
RS Stock No.:
150-565
Mfr. Part No.:
LR1F1R0
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Resistance

1Ω

Power Rating

0.6W

Tolerance

±1%

Technology

Metal Film

Series

LR1

Maximum Operating Temperature

+155°C

Temperature Coefficient

±100ppm/°C

Minimum Operating Temperature

-55°C

Priced to Clear

Yes

COO (Country of Origin):
TH

TE Connectivity LR1F Series 0.6W Metal Film Resistors


The LR1F series of superior quality metal film resistors from TE Connectivity feature a 1% tolerance and temperature coefficients down to 50 ppm. The LR1L series is a low Ohmic value range from 0.1 to 0.82 ohm with a power rating or 0.6W. Ideally suited for applications where low resistance and small size are required. Metal film resistors have excellent stability under load as well as being reliable under severe environmental conditions. They exhibit very low noise current and voltage coefficients. They are available in a wide range of resistance values and are suitable for general purpose and precision applications.

• Superior quality metal film
• 1% tolerance
• Temperature coefficients down to 50 ppm
• Available from 0.1 to 0.82 ohms
• Low resistance and small size
• Low noise current and voltage coefficients
• 0.6W Power Rated

Note

This series of resistors is now rated at 0.6W (commercial spec) and 0.25W (CECC military spec)
