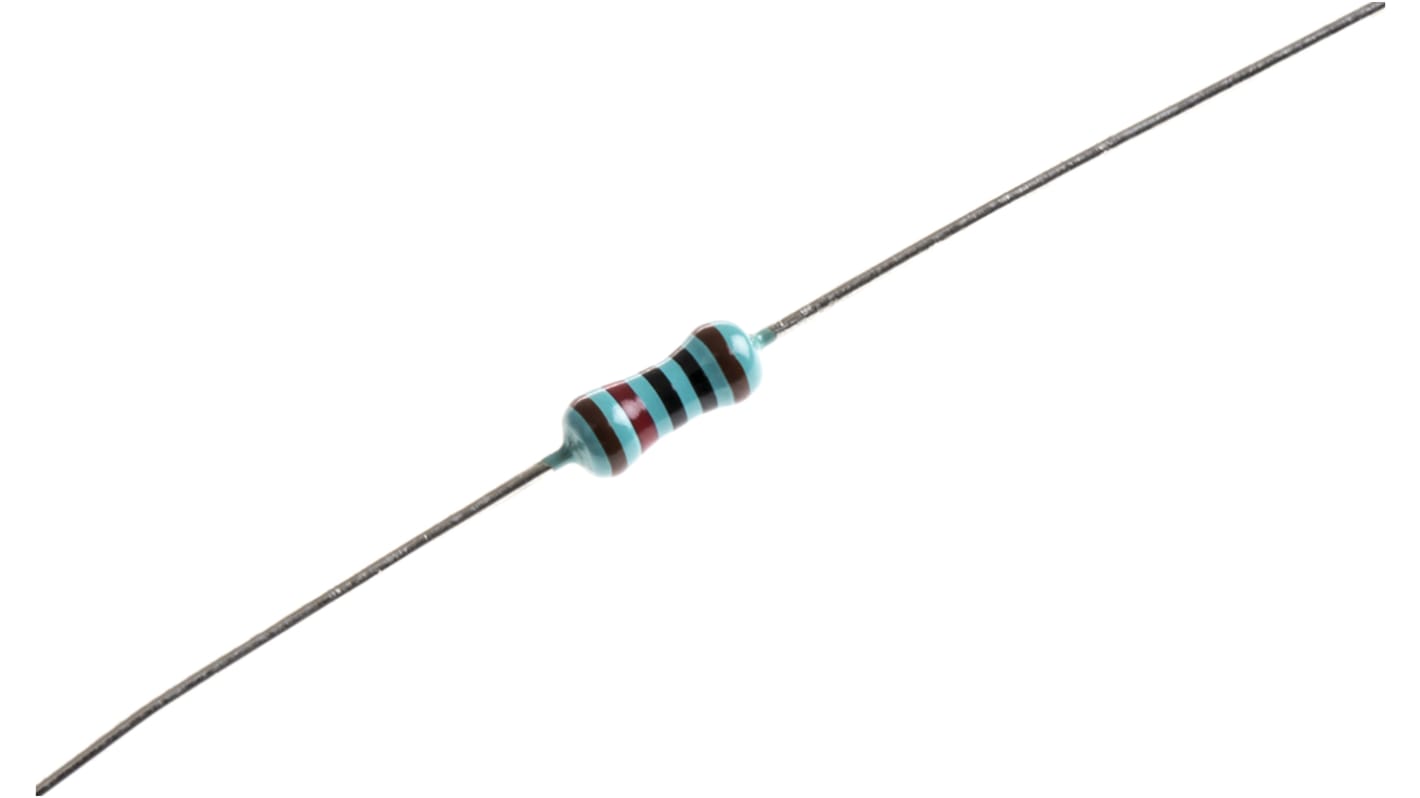

TE Connectivity 10kΩ Metal Film Metal Film Fixed Resistor 0.6W ±1% LR1F10K
- RS Stock No.:
- 148-736
- Mfr. Part No.:
- LR1F10K
- Brand:
- TE Connectivity
View all Through Hole Resistors
Discontinued product
Alternative
£0.072
Each (In a Bag of 20)
RS Stock No.: 125-1164
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 148-736
- Mfr. Part No.:
- LR1F10K
- Brand:
- TE Connectivity
- COO (Country of Origin):
- TH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
TE Connectivity 0.6W LR1F Series 10R - 1M0, Axial
The LR1F series resistors from TE Connectivity are axial resistors featuring a superior quality metal film with 1% tolerance and a temperature coefficient down to 50 ppm. Ideally suited where low resistance and small sizes are required, the resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element.
Metal film resistors have excellent stability under load and severe environmental conditions. The LR1F series are suitable for both general purpose applications as well as those precision applications in industry.
Metal film resistors have excellent stability under load and severe environmental conditions. The LR1F series are suitable for both general purpose applications as well as those precision applications in industry.
• Very low noise current
• Low voltage coefficients
• Ideal for low resistance and where a compact solution is required
• Available in a wide range of resistance values
• Suitable for general purpose and precision applications
• Excellent stability under load and severe environmental conditions
• 3 case sizes are available in 0.25, 0.6, 0.75W
• Compatible with automatic insertion equipment as well as cutting and bending machines
• Low voltage coefficients
• Ideal for low resistance and where a compact solution is required
• Available in a wide range of resistance values
• Suitable for general purpose and precision applications
• Excellent stability under load and severe environmental conditions
• 3 case sizes are available in 0.25, 0.6, 0.75W
• Compatible with automatic insertion equipment as well as cutting and bending machines
Specifications
| Attribute | Value |
| Resistance | 10kΩ |
| Power Rating | 0.6W |
| Tolerance | ±1% |
| Technology | Metal Film |
| Series | LR1 |
| Maximum Operating Temperature | +155°C |
| Temperature Coefficient | ±50ppm/°C |
| Minimum Operating Temperature | -55°C |
