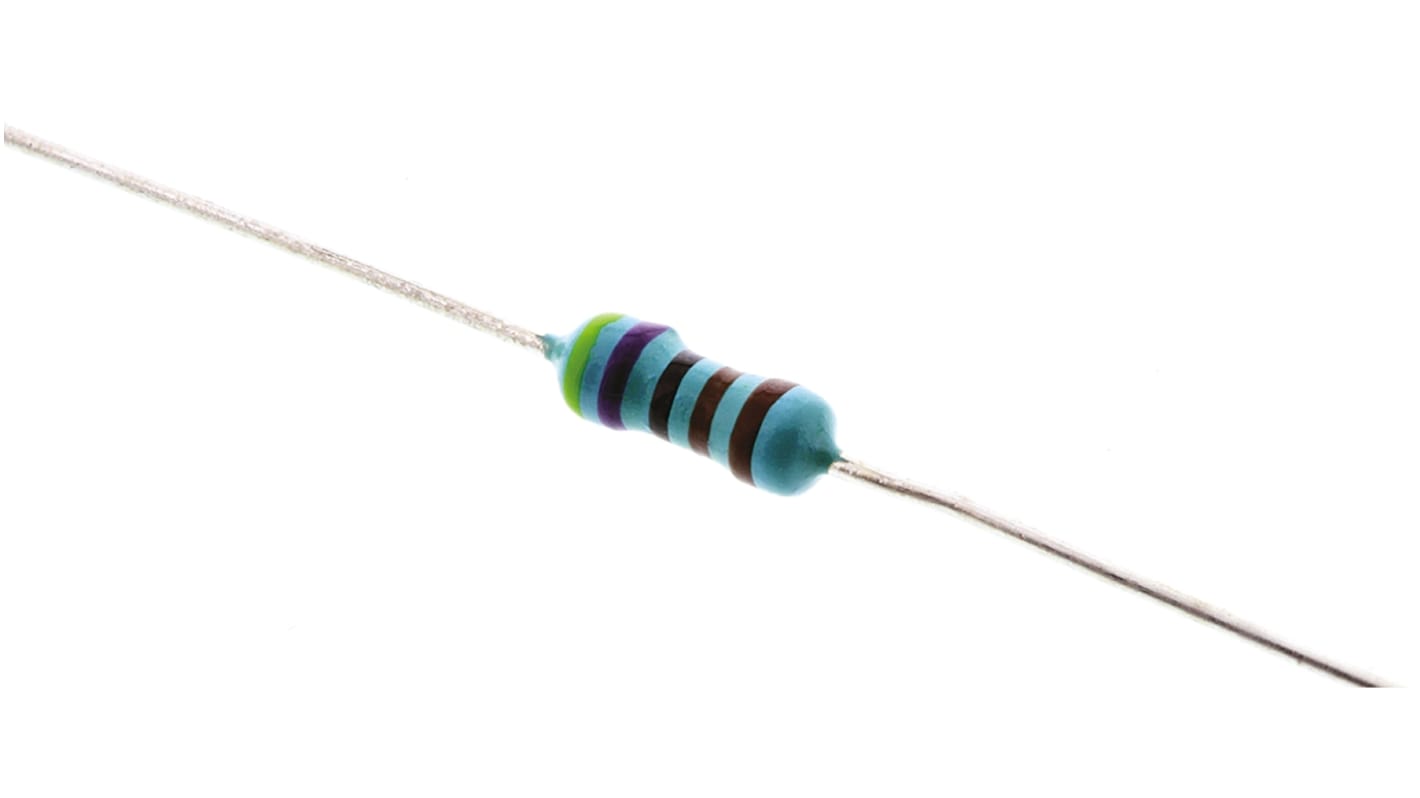

    TE Connectivity 4.7kΩ Metal Film Metal Film Fixed Resistor 0.6W ±1% LR1F4K7

    RS Stock No.:
    148-663
    Mfr. Part No.:
    LR1F4K7
    Brand:
    TE Connectivity
    TE Connectivity
    View all Through Hole Resistors
    Discontinued product

    Alternative

    TE Connectivity 4.7kΩ Metal Film Metal Film Resistor 0.6W ±1% LR1F4K7

    £0.05

    Each (In a Bag of 20)

    RS Stock No.125-1163
    RS Stock No.:
    148-663
    Mfr. Part No.:
    LR1F4K7
    Brand:
    TE Connectivity
    COO (Country of Origin):
    TH

    Legislation and Compliance

    COO (Country of Origin):
    TH

    Product Details

    TE Connectivity 0.6W LR1F Series 10R - 1M0, Axial


    The LR1F series resistors from TE Connectivity are axial resistors featuring a superior quality metal film with 1% tolerance and a temperature coefficient down to 50 ppm. Ideally suited where low resistance and small sizes are required, the resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element.

    Metal film resistors have excellent stability under load and severe environmental conditions. The LR1F series are suitable for both general purpose applications as well as those precision applications in industry.

    • Very low noise current
    • Low voltage coefficients
    • Ideal for low resistance and where a compact solution is required
    • Available in a wide range of resistance values
    • Suitable for general purpose and precision applications
    • Excellent stability under load and severe environmental conditions
    • 3 case sizes are available in 0.25, 0.6, 0.75W
    • Compatible with automatic insertion equipment as well as cutting and bending machines


    Specifications

    AttributeValue
    Resistance4.7kΩ
    Power Rating0.6W
    Tolerance±1%
    TechnologyMetal Film
    SeriesLR1
    Temperature Coefficient±50ppm/°C
    Maximum Operating Temperature+155°C
    Minimum Operating Temperature-55°C
