RS PRO Plain, M4 Steel Threaded Insert, 9mm diameter 6mm Depth 11.3mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

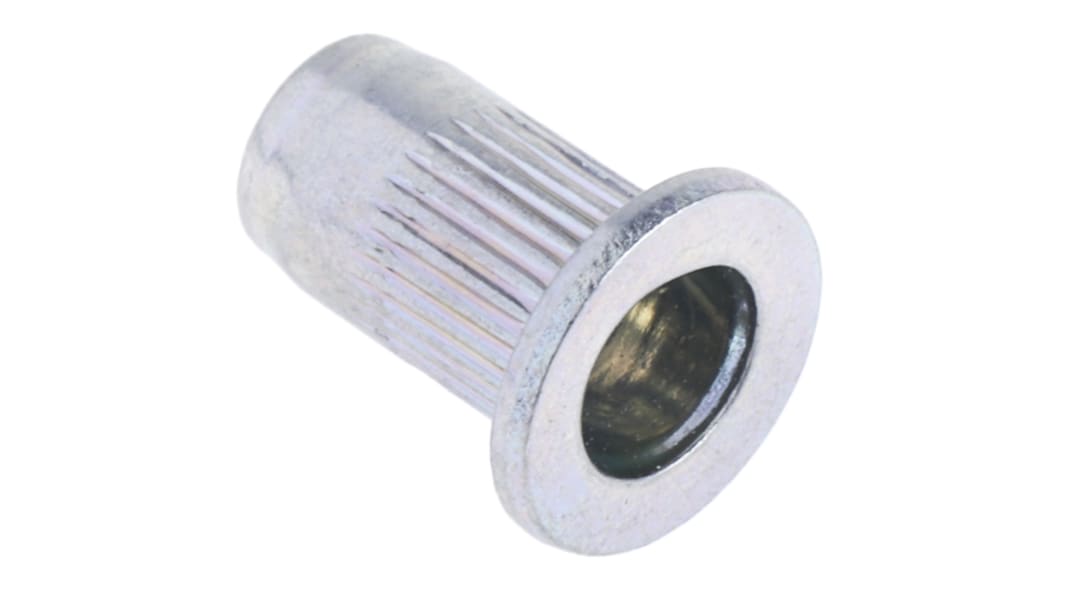

Crimp nuts

Crimp nuts for screw fixing to thin panels wherever rear access is impossible.
When fitting, the serrated part of the nut expands inside the hole to provide high torque resistance.
The special design of these nuts ensures excellent resistance to rotation and vibration.
Both flanged and flush type nuts can be fitted with the same tool.

Note

Nuts sold separately, for the full kit please refer to RS stock no 425-7480

//media.rs-online.com/t_line/LF425753-01.gif
Specifications
Attribute Value
Thread Size M4
Flange Diameter 9mm
Fixing Hole Diameter 6mm
Body Outside Diameter 9mm
Body Depth 11.3mm
Material Steel
Finish Plain
Thickness of Material Maximum 3mm
Thickness of Material Minimum 0.5mm
15 in stock for FREE next working day delivery
65 available from Europe for delivery within 1 working day(s)
Price 1 Lot of 100
£ 12.56
(exc. VAT)
£ 15.07
(inc. VAT)
Lot(s)
Per Lot
Per unit*
1 +
£12.56
£0.126
*price indicative
