Jumo frostTHERM Changeover Thermostats, 16A, 230 V, -10 → +15 °C
- RS Stock No.:
- 285-7811
- Distrelec Article No.:
- 301-42-365
- Mfr. Part No.:
- 604100/20-5-140-3000-0-40/404
- Brand:
- Jumo
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£112.45
(exc. VAT)
£134.94
(inc. VAT)
- RS Stock No.:
- 285-7811
- Distrelec Article No.:
- 301-42-365
- Mfr. Part No.:
- 604100/20-5-140-3000-0-40/404
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Jumo | |
Contact Rating | 16A | |
Switch Configuration | Changeover | |
Supply Voltage | 230 V | |
Temperature Range | -10 → +15 °C | |
Series | frostTHERM | |
Select all | ||
---|---|---|
Brand Jumo | ||
Contact Rating 16A | ||
Switch Configuration Changeover | ||
Supply Voltage 230 V | ||
Temperature Range -10 → +15 °C | ||
Series frostTHERM | ||
- COO (Country of Origin):
- DE

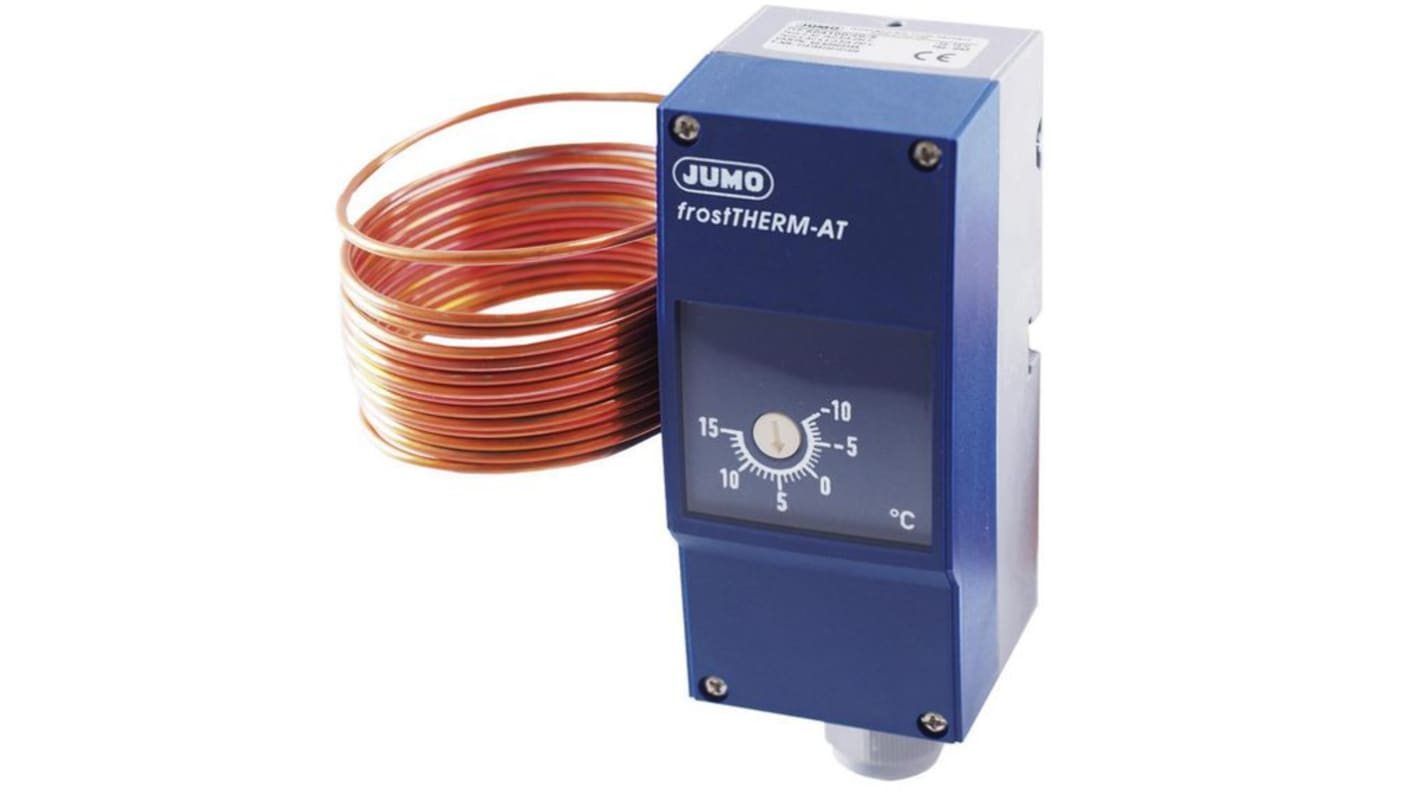

The surface-mounted thermostat with a single-pole snap-action switch. It is designed for temperature monitoring in ventilation and air conditioning systems to prevent damage caused by frost. The thermostat features a low switching differential, high reproducibility, and automatic or manual reset options for added convenience.
Connection technology reduces installation time by 50%
Maximum switching capacity of 16 A at 230 V
Protection types include IP40-IP65 for AT and IP20 for DR
High application flexibility and latest connection technology
Suitable for wall, pipe, and DIN rail mounting
Push-In terminal technology allows for easy and safe wiring
Direct switching of loads up to 16 A at 230 V AC without needing a contactor
Snap-action switch with single-pole changeover contact for high switching reliability
Adjustable switching point and high accuracy of +/- 2°C
Compact design with various probe line lengths available
Maximum switching capacity of 16 A at 230 V
Protection types include IP40-IP65 for AT and IP20 for DR
High application flexibility and latest connection technology
Suitable for wall, pipe, and DIN rail mounting
Push-In terminal technology allows for easy and safe wiring
Direct switching of loads up to 16 A at 230 V AC without needing a contactor
Snap-action switch with single-pole changeover contact for high switching reliability
Adjustable switching point and high accuracy of +/- 2°C
Compact design with various probe line lengths available
