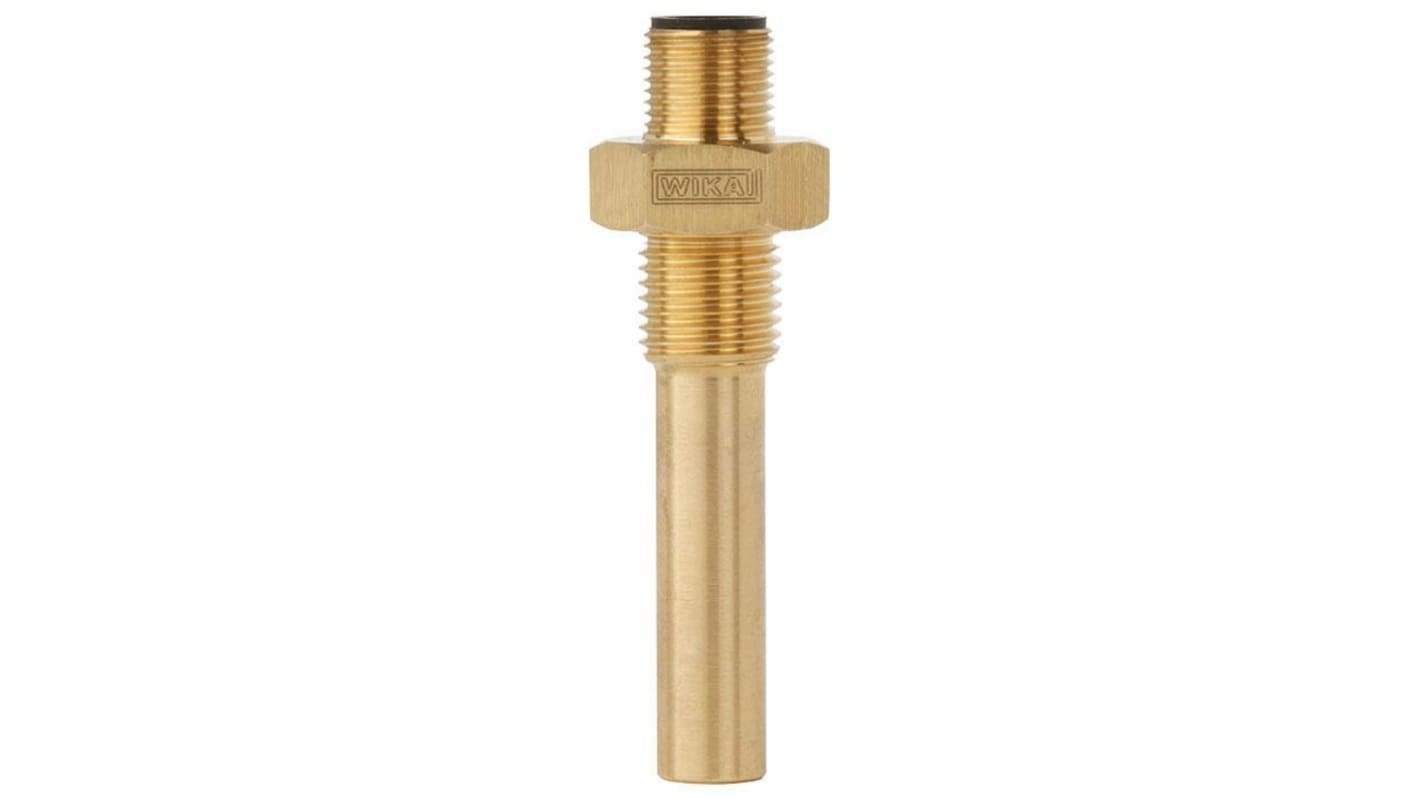

WIKA Bi-Metallic Thermostat, Closes at -40 °C, 100 °C Max, Automatic Reset, 1 x NO, 4 A, Threaded
- RS Stock No.:
- 268-9321
- Mfr. Part No.:
- 48783953
- Brand:
- WIKA
Subtotal (1 unit)*
£72.93
(exc. VAT)
£87.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £72.93 |
*price indicative
- RS Stock No.:
- 268-9321
- Mfr. Part No.:
- 48783953
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Minimum Operating Temperature | -40°C | |
| Product Type | Thermostat | |
| Maximum Operating Temperature | 100°C | |
| Closing Temperature | -40°C | |
| Thermostat Type | Bi-Metallic | |
| Contact Configuration | 1 x NO | |
| Contact Current | 4A | |
| Contact DC Voltage | 12V dc | |
| Series | TFS35 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Mount Type | Threaded | |
| Reset Type | Automatic | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Minimum Operating Temperature -40°C | ||
Product Type Thermostat | ||
Maximum Operating Temperature 100°C | ||
Closing Temperature -40°C | ||
Thermostat Type Bi-Metallic | ||
Contact Configuration 1 x NO | ||
Contact Current 4A | ||
Contact DC Voltage 12V dc | ||
Series TFS35 | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Mount Type Threaded | ||
Reset Type Automatic | ||
- COO (Country of Origin):
- DE
The WIKA Temperature switch is generally used in industry for limiting temperature to monitor the temperature of machinery and equipment. Temperature sensing is carried out by a bimetal disc, which snaps over when the nominal switching temperature is reached.
Automatic reset
No additional voltage supply
