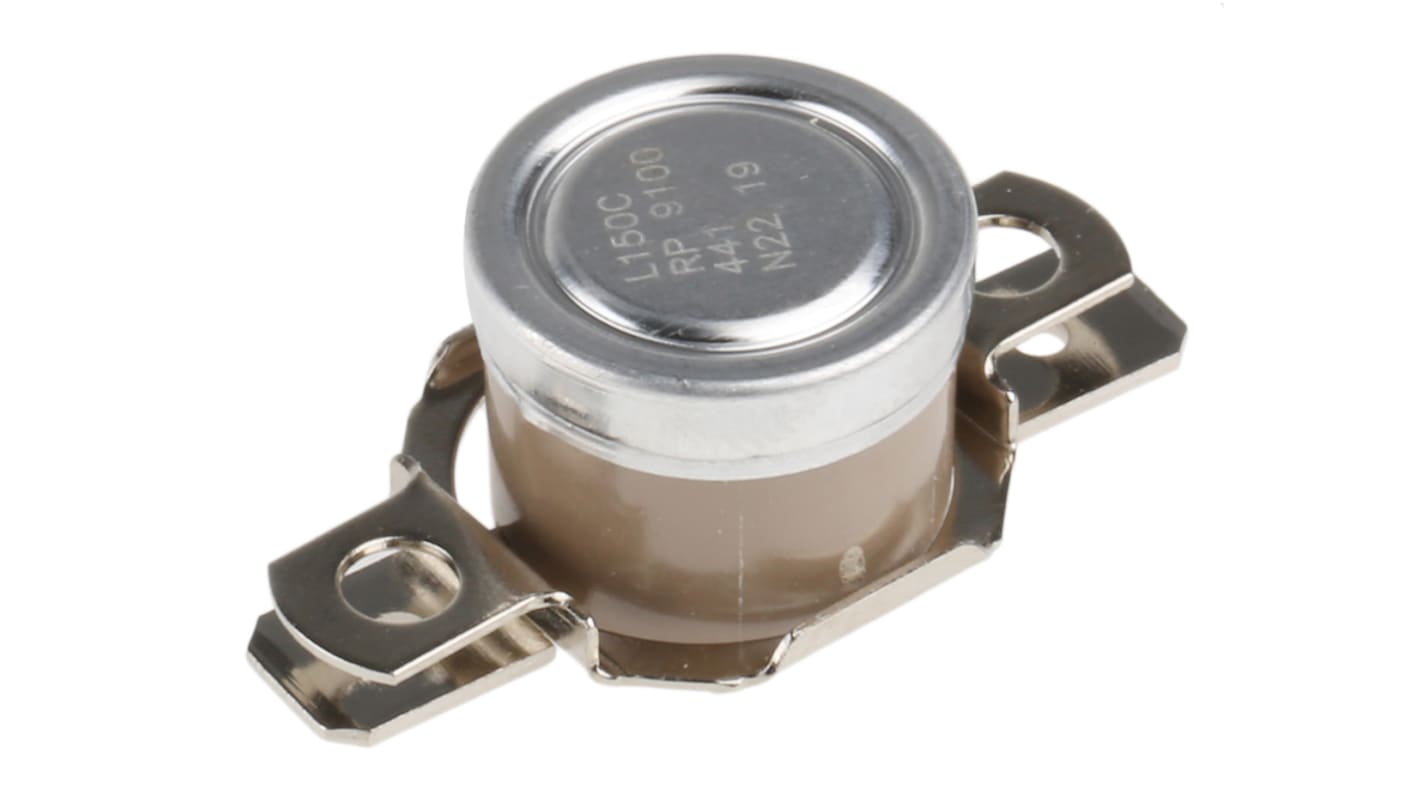

Honeywell Bi-Metallic Thermostat, Opens at +150°C, Closes at +135°C, +186°C Max, NC, Automatic Reset

View all Thermostatic Switches
Bulk discount available

Subtotal (1 unit)*

£32.31

(exc. VAT)

£38.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 242 unit(s) ready to ship
  • Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£32.31
5 - 9£31.24
10 +£29.83

*price indicative

RS Stock No.:
229-5812
Distrelec Article No.:
303-99-492
Mfr. Part No.:
2455RP-91000441
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Minimum Temperature

0°C

Maximum Temperature

+186°C

Opening Temperature

+150°C

Thermostat Type

Bi-Metallic

Closing Temperature

+135°C

Switch Configuration

NC

Contact Rating

10A

Contact Voltage Rating

250V ac

Terminal Type

Solder Tab

Reset Type

Automatic

COO (Country of Origin):
CN

Basic Bi-MetallicThermostat


PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Note

The contacts are NOT silver plated and are unsuitable for use with low current dc applications

Honeywell Bimetallic Thermostat, 250V AC, +150°C Opening Temperature - 2455RP Series - 2455RP 9100-441 L150C


Use this bimetallic thermostat switch from Honeywell to automatically regulate the temperature of your set-up. Its open-on-rise design means the contacts will open once the temperature has reached +150°C to prevent overheating. The circuit closes once the temperature falls to +135°C, reactivating the thermostat. The switch is housed in a PPS (polyphenylene sulfide) material that's resistant to impact and heat, making it suitable for use in demanding environments. Its metal end cap is highly durable and effectively conducts heat for efficient use.

Features & Benefits


• Nominal voltage of 24V DC and 250V AC for use in heavy-duty applications
• Current rating of 10A for use in demanding applications

Applications


• Air conditioners
• Commercial buildings
• Boiler systems

How do I install and connect this thermostat switch?


You can install this switch directly on the mounting face of the thermostat. It features solder tab terminals so you can securely connect it to the thermostat's wiring using a soldering iron. The floating steel bracket is highly durable and offers secure and simple mounting.
