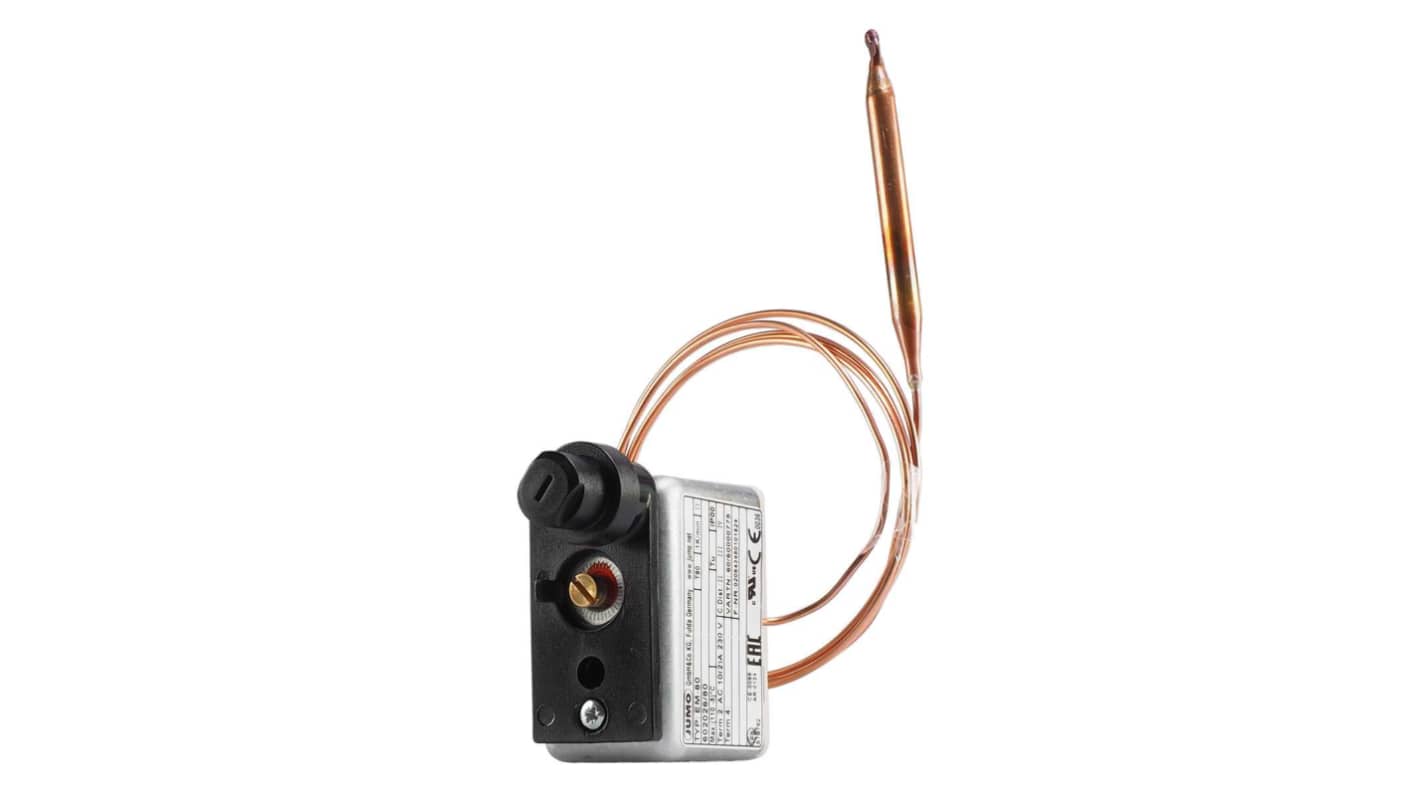

Jumo Capillary Thermostat, 110 °C Max Concurrently Switching Neutral, Automatic Reset, 16 A, Panel Mount

View all Thermostatic Switches

Subtotal (1 unit)*

£129.06

(exc. VAT)

£154.87

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£129.06

*price indicative

RS Stock No.:
278-951
Mfr. Part No.:
602026/80-000-110-1000-40-10-00-00-000-00-6 710
Brand:
Jumo
Find similar products by selecting one or more attributes.
Select all

Brand

Jumo

Minimum Operating Temperature

0°C

Product Type

Thermostat

Maximum Operating Temperature

110°C

Thermostat Type

Capillary

Contact AC Voltage

230V ac

Terminal Type

Twin-Purpose Terminal

Contact DC Voltage

60V dc

Contact Current

16A

Standards/Approvals

PED, DIN EN 14597, RoHS, DIN 46244, UL

Hazardous Area Certification

No

Series

602026

Switch Function

Concurrently Switching Neutral

Reset Type

Automatic

Mount Type

Panel Mount

COO (Country of Origin):
DE
The Jumo 1 pole mechanical panel mounting thermostat is very robust due to its zinc-plated sheet steel case and can also be used in rough conditions. It operates according to the fluid expansion principle and can be used up to a maximum permissible probe temperature of 126°C without any problems. The maximum permissible ambient temperature at the switch head (protection class IP00) is 80 °C, which is fixed using a fixing nut M10 x 1. The safety temperature limiter is characterized by a high switching point accuracy of +0/-5 K. The electrical connection is made at the tab connectors (A 6.3 x 0.8 DIN 46244) of the switching unit, which can directly switch a maximum permissible switching capacity of AC 230 V/16. The temperature limiter is very flexible and is used in heating, air conditioning and ventilation technology as well as in the plastics industry, apparatus and furnace construction and for temperature monitoring in laboratories and climatic chambers.

Approved according to DIN EN 14597 UL and EAC

Smooth round sensor made of copper has a diameter of 6 mm with a probe length of approx. 84 mm

Capillary of the thermostat is also made of copper and can be laid flexibly with a bending radius of 5 mm

Unlocking differential of approx. 10 K

switch off point is fixed by setting in the factory
