RS PRO Type K Exposed Junction Thermocouple 1m Length, 0.076mm Diameter, -75°C → +260°C
- RS Stock No.:
- 804-7981
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£23.43
(exc. VAT)
£28.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 141 unit(s) shipping from 27 October 2025
- Plus 36 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £23.43 |
| 5 - 9 | £22.26 |
| 10 + | £21.11 |
*price indicative
- RS Stock No.:
- 804-7981
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thermocouple Type | K | |
| Probe Diameter | 0.076mm | |
| Probe Length | 1m | |
| Maximum Temperature Sensed | +260°C | |
| Probe Material | PFA | |
| Termination Type | Bare Wire Tail | |
| Cable Length | 1m | |
| Standards Met | IEC, RoHS Compliant | |
| Minimum Temperature Sensed | -75°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thermocouple Type K | ||
Probe Diameter 0.076mm | ||
Probe Length 1m | ||
Maximum Temperature Sensed +260°C | ||
Probe Material PFA | ||
Termination Type Bare Wire Tail | ||
Cable Length 1m | ||
Standards Met IEC, RoHS Compliant | ||
Minimum Temperature Sensed -75°C | ||
- COO (Country of Origin):
- GB

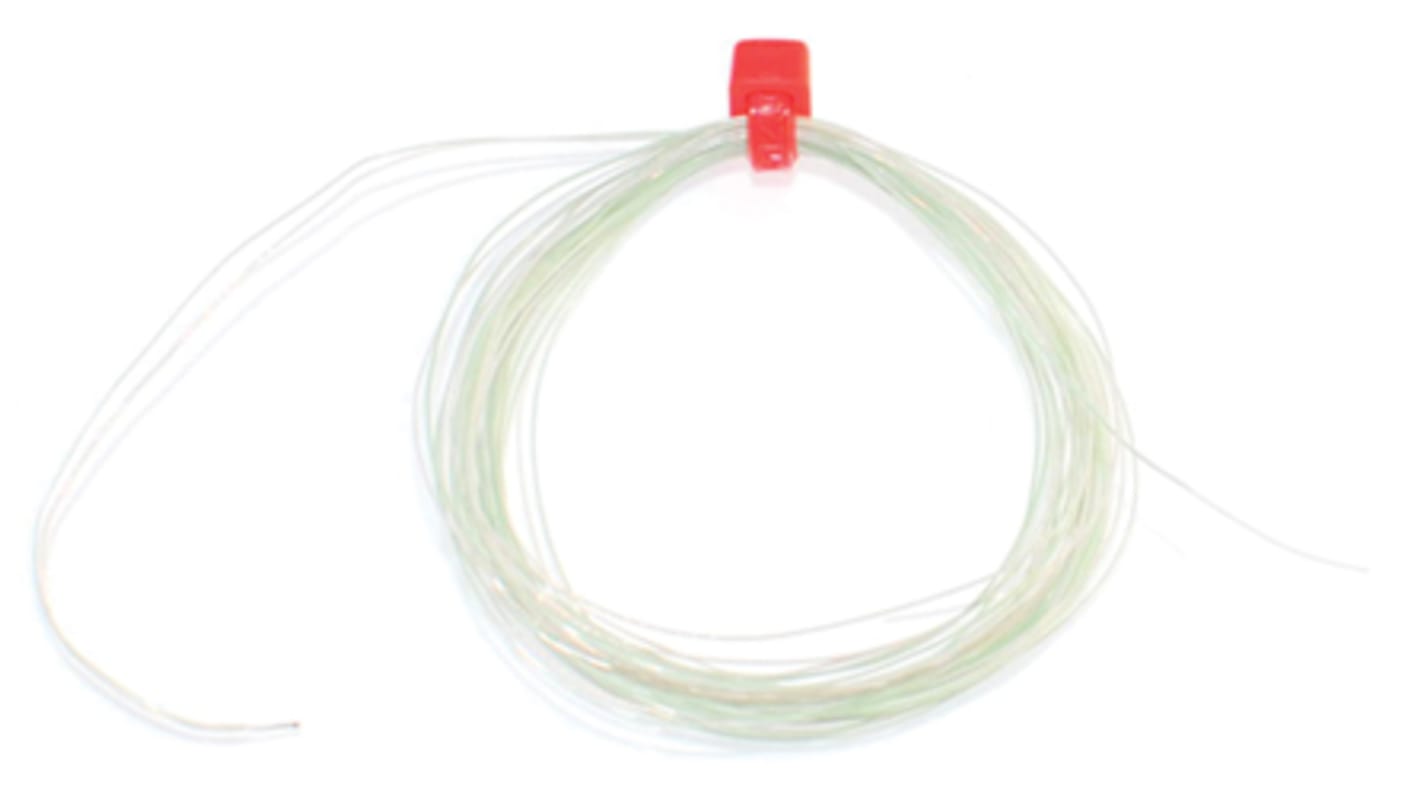

RS PRO Type K Thermocouple 1 m Length, -75°C to +260°C
Use this thermocouple from RS PRO to reliably measure temperatures ranging from -75°C to +260°C. It comes colour-coded in green in accordance with IEC (International Electrotechnical Commission) standards, making it easily identifiable as a Type K thermocouple.
To ensure a fast response time, the probe has an exposed welded tip. This tip is extremely sensitive for quick and accurate temperature detection. The thin 0.075 mm wire diameter also aids in rapid data collection, as it allows for a faster thermal response. The wire is beaded to ensure a fast-reacting junction.
For added protection, the wires are insulated with Teflon® for resistance to moisture and humidity. This thermocouple is suitable for test and development applications.
To ensure a fast response time, the probe has an exposed welded tip. This tip is extremely sensitive for quick and accurate temperature detection. The thin 0.075 mm wire diameter also aids in rapid data collection, as it allows for a faster thermal response. The wire is beaded to ensure a fast-reacting junction.
For added protection, the wires are insulated with Teflon® for resistance to moisture and humidity. This thermocouple is suitable for test and development applications.
Features and Benefits
• Fine gauge welded tip thermocouple accessory type
• Green colour
• Cable connector type
• For use with Type K thermocouples
• Maximum temperature sensed of +260°C
• Minimum temperature sensed of -75°C
• Probe length of 1 m
• IEC standards met
• Cable termination type
• Type K thermocouple
• Green colour
• Cable connector type
• For use with Type K thermocouples
• Maximum temperature sensed of +260°C
• Minimum temperature sensed of -75°C
• Probe length of 1 m
• IEC standards met
• Cable termination type
• Type K thermocouple
