RS PRO Type K Thermocouple Cable/Wire, 100m, Unscreened, PFA Insulation, +260°C Max, 1/0.3mm

RS Stock No.:: 200-0626
Brand:: RS PRO

RS PRO Type K Thermocouple Cable/Wire, 100m, Unscreened, PFA Insulation, +260°C Max, 1/0.3mm

Subtotal (1 unit)*

£185.40

(exc. VAT)

£222.48

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

4 units(s) shipping from 03 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£185.40

*price indicative

RS Stock No.:: 200-0626
Brand:: RS PRO

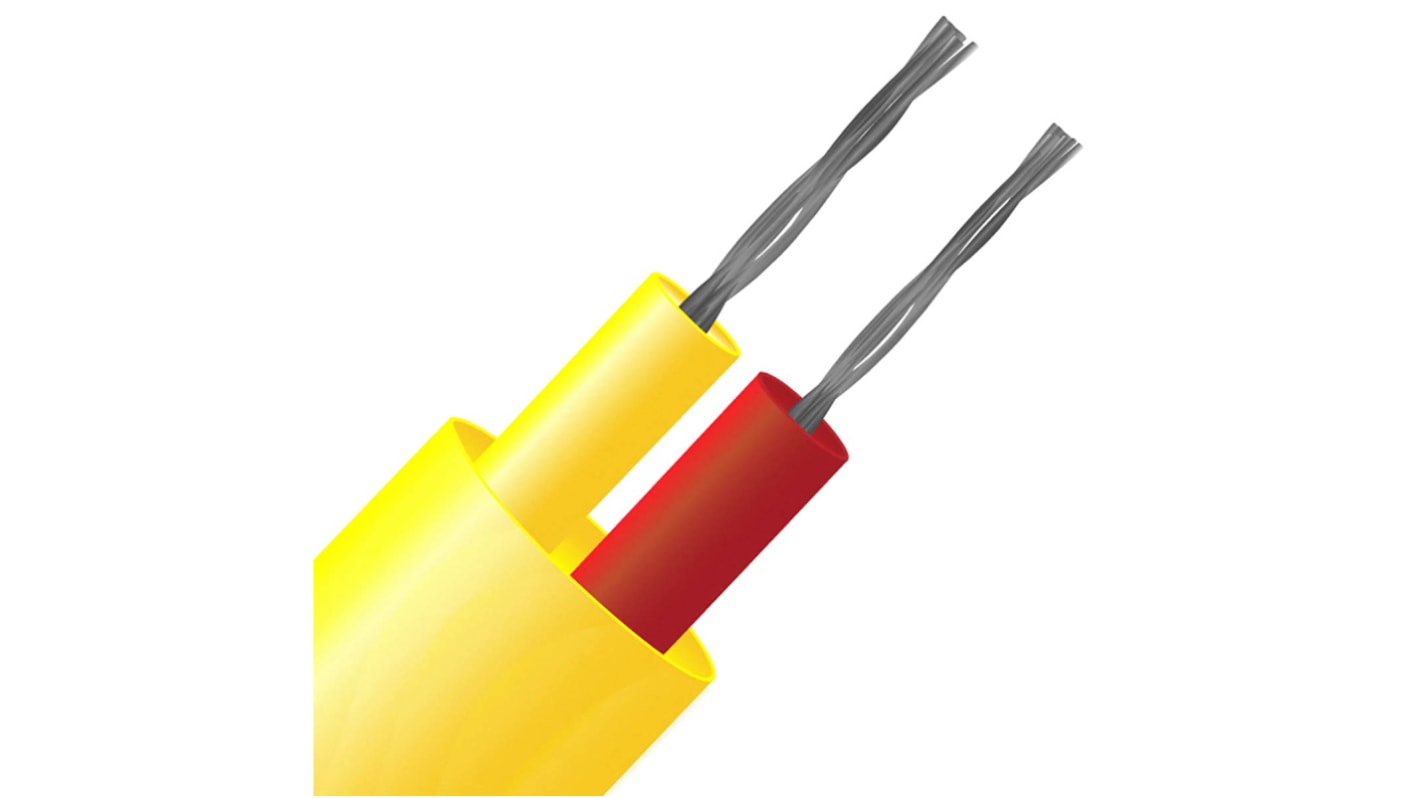

RS PRO Type K PFA Insulated Flat Pair Thermocouple Extension Cable, 100 m

Introducing the range of RS PRO PFA Insulated Thermocouple Cables, ideal for use as general-purpose extension wire in high-temperature environments. The cable consists of a single pair of PFA insulated conductors, laid flat with a PFA jacket for optimum protection and insulation of the wires, and high reliability, especially when being used for a long period of time in challenging environments.

Features and Benefits:

This range of RS PRO PFA insulated Thermocouple cabling is suitable for use as extension cable in high-temperature environments

The extension cable has an excellent temperature range, from -70°C up to +250°C, meaning it can perform in high temperature and cryogenic environments, making it incredibly versatile

The PFA material offers high resistance to chemicals, oils and fluids, making the cables ideal for industrial applications where the cabling may be exposed to harsh and adverse fluids from machinery and more

In addition to this, the extruded form of the PFA cabling allows it to be steam, gas and watertight, making them suitable for use in applications where sterilisers or autoclaves may be in use

Available in a range of variations dependant on requirements

Applications:

Thermocouple extension wires or cabling is an ideal accessory when working with thermocouple installation. This type of cable can add additional flexibility and versatility to an existing thermocouple and are offered in a wide range of constructions from simple twisted pairs to screened cables to suit any combination and application they are needed for. Thermocouple extension cables can often be found in:

Research and development

Motorsports testing

Manufacturing, engineering and production environments

What other cables are included in this range?

200-0623 ANSI Type K 1/0.2mm, 25m

200-0624 ANSI Type K 1/0.2mm, 100m

200-0625 ANSI Type K 1/0.3mm, 25m

200-0626 ANSI Type K 1/0.3mm, 100m

200-0627 ANSI Type K 1/0.5mm, 25m

200-0628 ANSI Type K 1/0.5mm, 100m

Standards and Certifications:

IEC 60584:1

IEC 60584:3

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Insulation Material	PFA
	Length	100m
	Thermocouple Type	K
	Maximum Operating Temperature	+260°C
	Screened/Unscreened	Unscreened
	Core Strands	1/0.3mm
	Cable Shape	Flat Pair
	Number of Strands	2
	Standards Met	ANSI

	Select all
	Brand RS PRO
	Insulation Material PFA
	Length 100m
	Thermocouple Type K
	Maximum Operating Temperature +260°C
	Screened/Unscreened Unscreened
	Core Strands 1/0.3mm
	Cable Shape Flat Pair
	Number of Strands 2
	Standards Met ANSI
