MITSUBISHI MATERIALS Thermistor, NTC Type 10 kΩ, 0805 1.25 mm 2 mm 1.25 mm
- RS Stock No.:
- 525-9235
- Mfr. Part No.:
- TH20-3H103FB
- Brand:
- MITSUBISHI MATERIALS

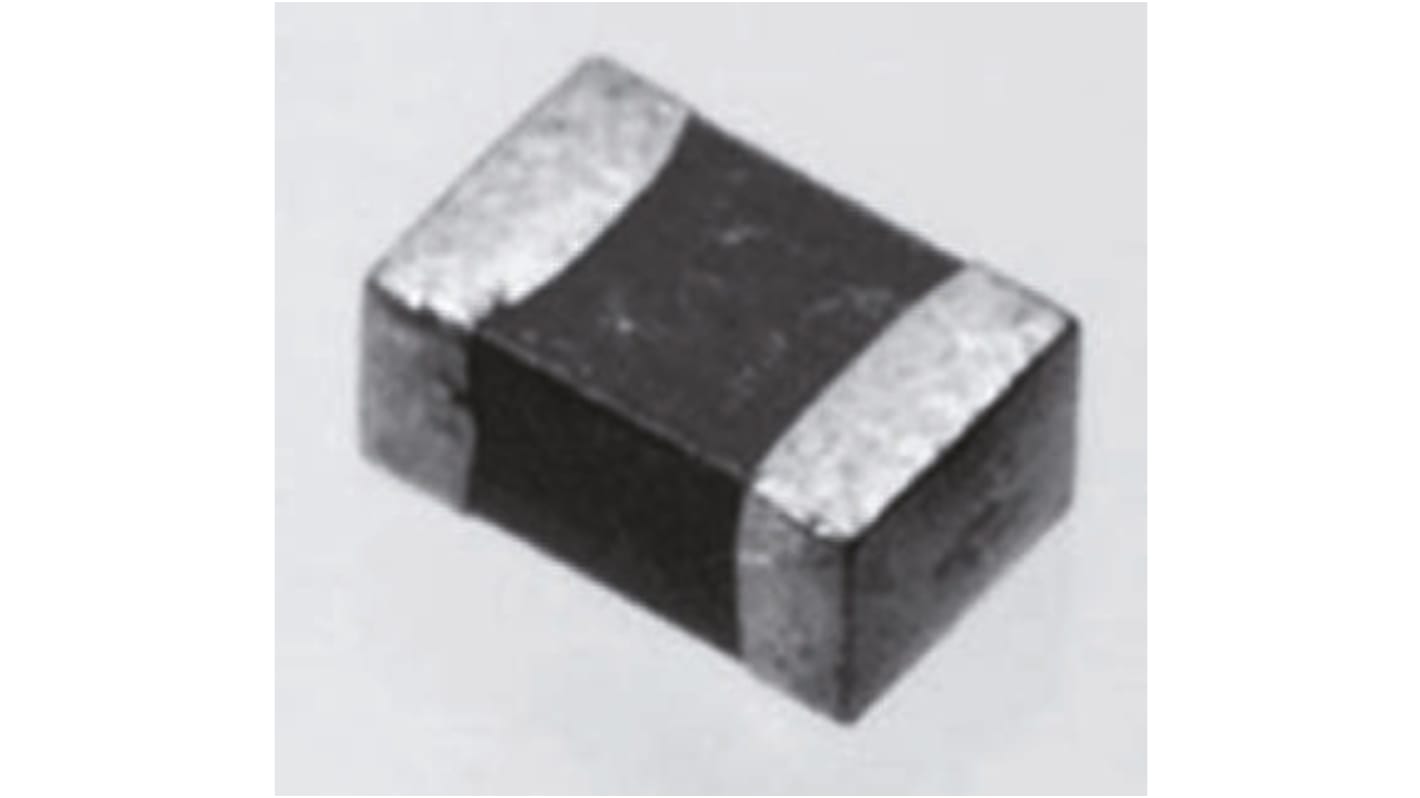

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 525-9235
- Mfr. Part No.:
- TH20-3H103FB
- Brand:
- MITSUBISHI MATERIALS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MITSUBISHI MATERIALS | |
| Series | TH20 | |
| Product Type | Thermistor | |
| Temperature Coefficient Type | NTC | |
| Packaging | Tape & Reel | |
| Tolerance ± | 10% | |
| Automotive Standard | No | |
| Mount Type | PCB | |
| Application | Battery Pack, Tcxo Applications, Nickel | |
| Package/Case | 0805 | |
| Maximum Power Rating | 500mW | |
| Resistance at 25°C | 10kΩ | |
| Depth | 1.25mm | |
| Standards/Approvals | UL1434 | |
| Length | 2mm | |
| Height | 1.25mm | |
| Termination Style | Tin plating | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand MITSUBISHI MATERIALS | ||
Series TH20 | ||
Product Type Thermistor | ||
Temperature Coefficient Type NTC | ||
Packaging Tape & Reel | ||
Tolerance ± 10% | ||
Automotive Standard No | ||
Mount Type PCB | ||
Application Battery Pack, Tcxo Applications, Nickel | ||
Package/Case 0805 | ||
Maximum Power Rating 500mW | ||
Resistance at 25°C 10kΩ | ||
Depth 1.25mm | ||
Standards/Approvals UL1434 | ||
Length 2mm | ||
Height 1.25mm | ||
Termination Style Tin plating | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
Chip Thermistor TH20
Small-size, highly accurate on-board NTC thermistor
Superior anti-static voltage withstanding properties
