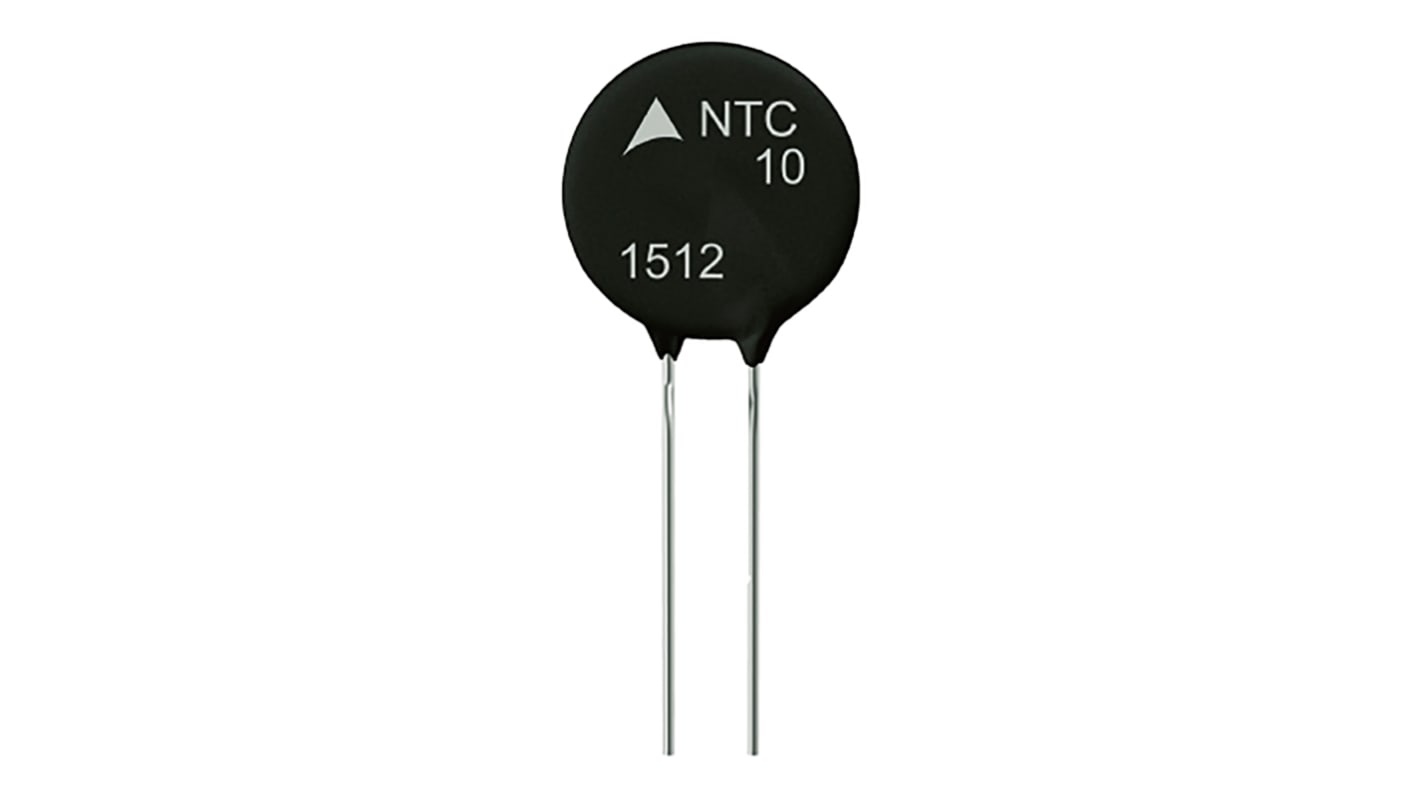

EPCOS Thermistor, 10Ω Resistance, NTC Type, 26 x 7 x 31mm
- RS Stock No.:
- 185-7652
- Mfr. Part No.:
- B57464S0100M000
- Brand:
- EPCOS
Available to back order for despatch 24/09/2024
Added
Price Each (In a Box of 200)
£2.78
(exc. VAT)
£3.34
(inc. VAT)
| Units | Per unit | Per Box* |
| 200 + | £2.78 | £556.00 |
| *price indicative | ||
- RS Stock No.:
- 185-7652
- Mfr. Part No.:
- B57464S0100M000
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details
NTC thermistors are specially developed to limit the current at turn-on by their relatively high resistance when they are cold. When the NTC thermistor heats up as a result of the current load its resistance decreases by a factor of 10 to 50, and the power it draws reduces accordingly. NTC thermistors are able to handle higher inrush currents than fixed resistors with the same power consumption.
Leaded and coated NTC thermistors
Tinned copper wire, kinked
Component marking includes the manufacturer'slogo, resistance value and date code
Highly stable electrical characteristics
Applications
Inrush current limiting, e.g. in switch-mode power supplies, soft-start motors
Tinned copper wire, kinked
Component marking includes the manufacturer'slogo, resistance value and date code
Highly stable electrical characteristics
Applications
Inrush current limiting, e.g. in switch-mode power supplies, soft-start motors
Specifications
Attribute | Value |
|---|---|
| Series | B57464S0M000 |
| Temperature Coefficient Type | NTC |
| Thermal Time Constant | 130s |
| Resistance @ 25 °C | 10Ω |
| Tolerance | ±20% |
| Maximum Power Rating | 6.7W |
| Length | 26mm |
| Depth | 7mm |
| Height | 31mm |
| Dimensions | 26 x 7 x 31mm |
| Maximum Operating Temperature | +170°C |
| Minimum Operating Temperature | -55°C |
