Vishay NTC Thermistor, NTC Type 10 kΩ 11.5 mm 5.5 mm
- RS Stock No.:
- 179-3910
- Mfr. Part No.:
- NTCALUG03A103H
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
£11.20
(exc. VAT)
£13.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20 unit(s) shipping from 12 October 2026
- Plus 1,980 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 40 | £1.12 | £11.20 |
| 50 - 90 | £1.097 | £10.97 |
| 100 - 240 | £0.997 | £9.97 |
| 250 - 490 | £0.952 | £9.52 |
| 500 + | £0.907 | £9.07 |
*price indicative
- RS Stock No.:
- 179-3910
- Mfr. Part No.:
- NTCALUG03A103H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | NTC Thermistor | |
| Series | NTCALUG03 | |
| Temperature Coefficient Type | NTC | |
| Thermal Time Constant | 5s | |
| Tolerance ± | 3% | |
| Mount Type | Screw | |
| Automotive Standard | AEC-Q200 | |
| Application | LED Emitter Heat Sink Control, Power Electronic, Heatsink Temperature Control, Surface Temperature Sensing, Ic Processors, Industrial Equipment, Mosfets, Automotive Equipment, Consumer Appliances | |
| Resistance at 25°C | 10kΩ | |
| Pin Count | 2 | |
| Depth | 5.5mm | |
| Height | 11.5mm | |
| Standards/Approvals | file E148885, AEC-Q200 grade 1, UL | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type NTC Thermistor | ||
Series NTCALUG03 | ||
Temperature Coefficient Type NTC | ||
Thermal Time Constant 5s | ||
Tolerance ± 3% | ||
Mount Type Screw | ||
Automotive Standard AEC-Q200 | ||
Application LED Emitter Heat Sink Control, Power Electronic, Heatsink Temperature Control, Surface Temperature Sensing, Ic Processors, Industrial Equipment, Mosfets, Automotive Equipment, Consumer Appliances | ||
Resistance at 25°C 10kΩ | ||
Pin Count 2 | ||
Depth 5.5mm | ||
Height 11.5mm | ||
Standards/Approvals file E148885, AEC-Q200 grade 1, UL | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Not Applicable

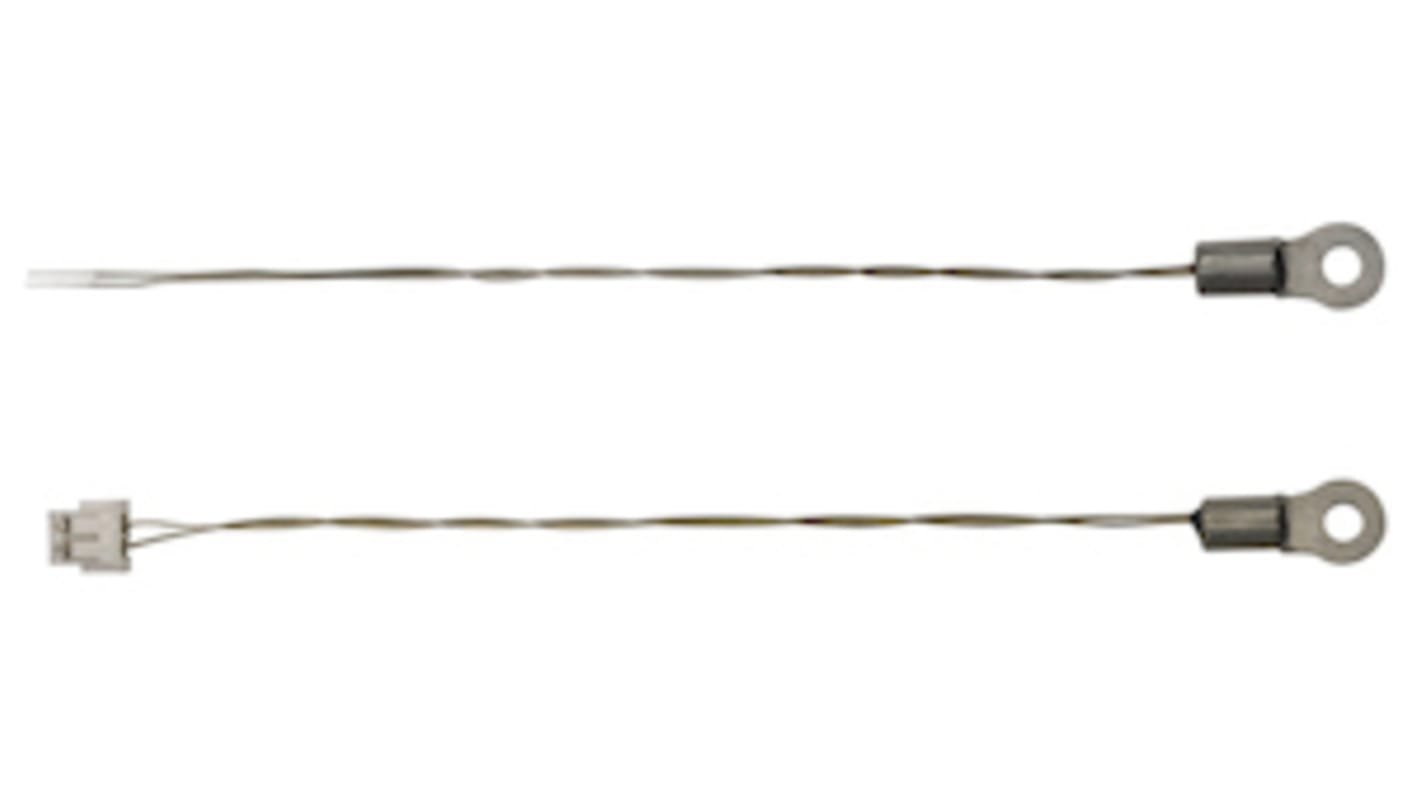

NTC Thermistors, Mini Lug Sensors
FEATURES
Fast time response for surface applications compared to industry standard NTC lug sensors
Reduced thermal gradient, due to the use of small dimensions and nickel conductor, allowing for an accurate surface temperature measurement
The sensor is not suitable for being permanently in contact with water or liquids
APPLICATIONS
Computer equipment
MOSFETS, IC’s, Power Electronics, heatsink temperature control, LED emitter heat-sink control
Consumer appliances
