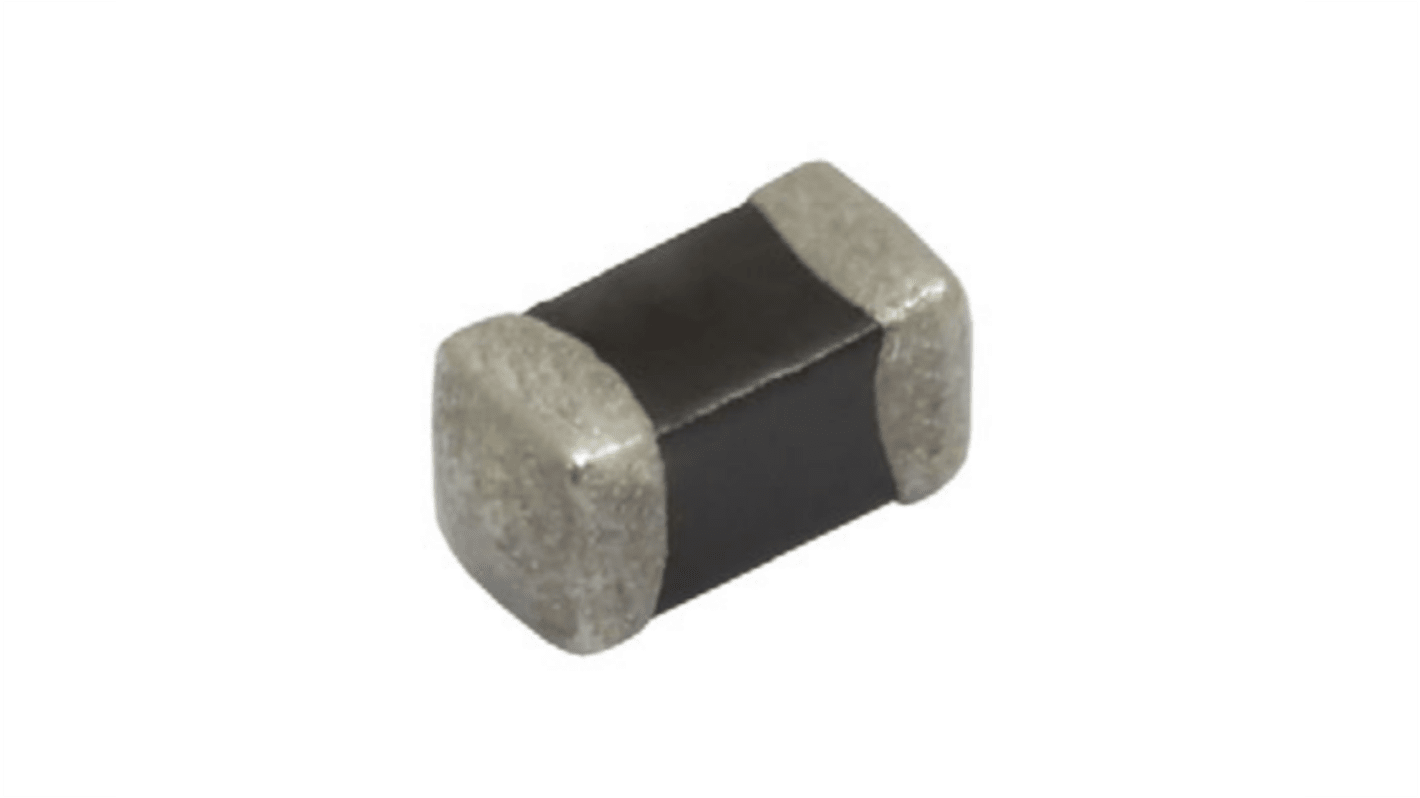

Vishay Thermistor IC, NTC Type 100 kΩ, 0603 0.3 mm 0.6 mm 0.3 mm
- RS Stock No.:
- 652-928
- Mfr. Part No.:
- NTCSC0201E3104FXHT
- Brand:
- Vishay
Subtotal (1 unit)*
£0.08
(exc. VAT)
£0.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 14,999 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £0.08 |
*price indicative
- RS Stock No.:
- 652-928
- Mfr. Part No.:
- NTCSC0201E3104FXHT
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Series | NTCS | |
| Product Type | Thermistor IC | |
| Temperature Coefficient Type | NTC | |
| Thermal Coefficient | -2%/K | |
| Thermal Time Constant | 3s | |
| Packaging | 8 mm punched paper Tape on Reel package of 15000 units | |
| Tolerance ± | 1% | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Application | Telecom, Temperature Sensing, Protection, Compensation | |
| Package/Case | 0603 | |
| Maximum Power Rating | 70mW | |
| Resistance at 25°C | 100kΩ | |
| Length | 0.6mm | |
| Depth | 0.3mm | |
| Height | 0.3mm | |
| Standards/Approvals | file E148885 (UL category XGPU2 / XGPU8), cULus | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Series NTCS | ||
Product Type Thermistor IC | ||
Temperature Coefficient Type NTC | ||
Thermal Coefficient -2%/K | ||
Thermal Time Constant 3s | ||
Packaging 8 mm punched paper Tape on Reel package of 15000 units | ||
Tolerance ± 1% | ||
Mount Type Surface | ||
Automotive Standard No | ||
Application Telecom, Temperature Sensing, Protection, Compensation | ||
Package/Case 0603 | ||
Maximum Power Rating 70mW | ||
Resistance at 25°C 100kΩ | ||
Length 0.6mm | ||
Depth 0.3mm | ||
Height 0.3mm | ||
Standards/Approvals file E148885 (UL category XGPU2 / XGPU8), cULus | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
The Vishay Commercial Grade NTC Thermistor features a resistance tolerance of ±1% at 25°C and is suitable for both wave and reflow soldering. It is ideal for temperature sensing, protection, and compensation in industrial, telecom, and consumer applications such as battery chargers, power supplies, office equipment, and LED compensation.
NiSn terminations
cULus recognized
RoHS compliant
Halogen free
