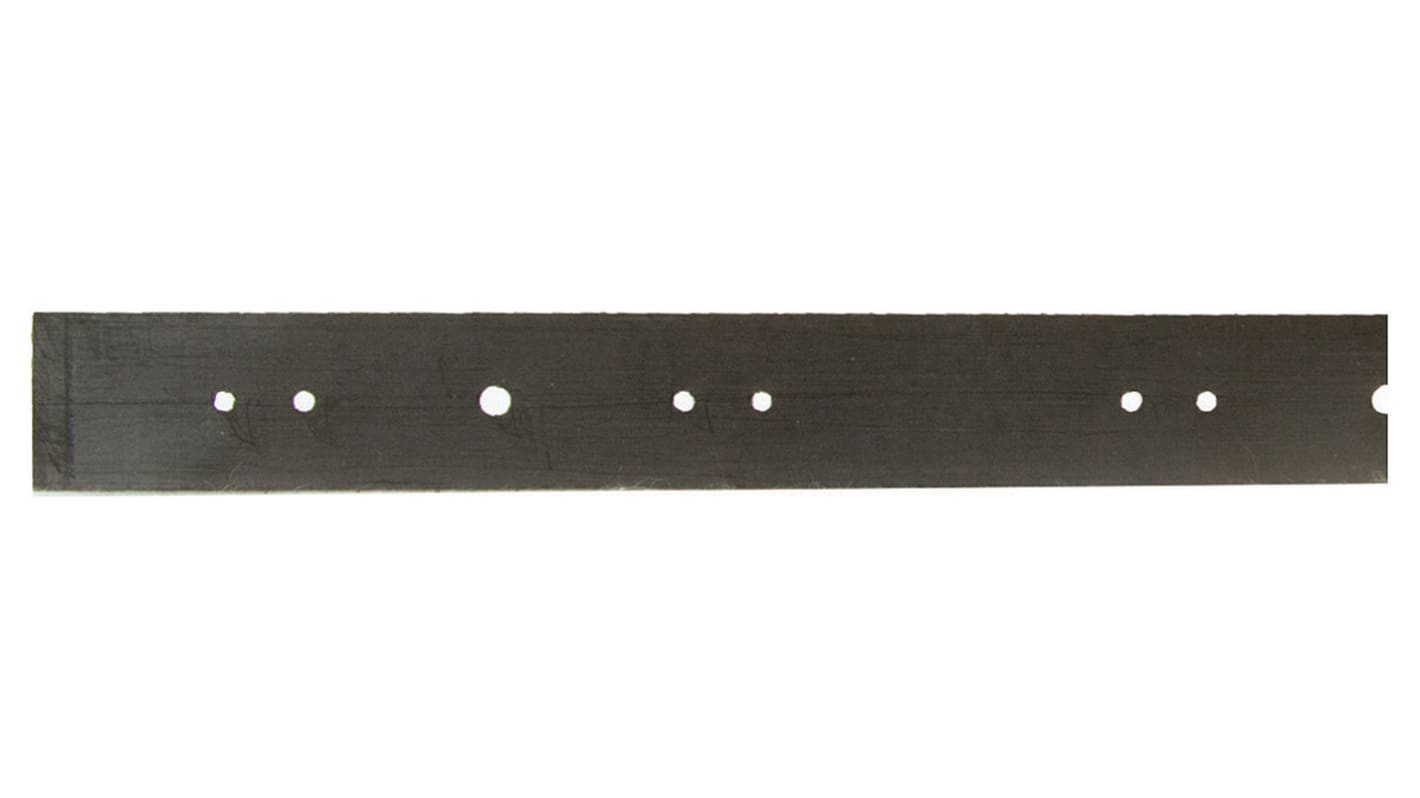

Intelligent LED Solutions ILA Series Self-Adhesive Thermal Interface Pad, 0.25mm Thick, 240 (XY-axis) W/m·K, 5 (Z-axis)

View all Thermal Pads

Subtotal (1 pack of 4 units)*

£6.18

(exc. VAT)

£7.416

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
4 +£1.545£6.18

*price indicative

RS Stock No.:
880-1949
Mfr. Part No.:
ILA-TIM-STRIP-0150X20-1A.
Brand:
Intelligent LED Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Intelligent LED Solutions

Thickness

0.25mm

Thermal Conductivity

240 (XY-axis) W/m·K, 5 (Z-axis) W/m·K

Material

Graphite

Self-Adhesive

Yes

Minimum Operating Temperature

-240°C

Maximum Operating Temperature

+300°C

Hardness

Shore A 85

Material Trade Name

TIM

Colour

Pewter

Series

ILA

Operating Temperature Range

-240 → +300 °C

COO (Country of Origin):
GB

ILS Thermal Interface Materials (TIM) - LED Strips


The ILA-TIM-STRIP series, from Intelligent LED Solutions, are a family of thermal heat pads designed specifically for LED Strips. They are available in a variety of sizes with non-adhesive or single/double sided adhesive options.
ILS' LED Strips family come in a variety of dimensions and use different LEDs, including OSRAM's OSLON® SSL and Stanley Electric's CRI 95 series.

Features of the ILA-TIM-STRIP single-sided and non-adhesive:
Colour: pewter
0.13mm thick
Temperature range: -240°C to +300°C

Features of the ILA-TIM-STRIP double-sided:
Colour: cream
0.16mm thick
Temperature range: -240°C to +300°C


Thermal Interface Materials, Intelligent LED Solutions


The ILA-TIM-XXXX-YY series of high-performance, cost effective thermal Interface Material (TIM), from Intelligent LED Solutions, is designed for use with their standard LED array products (such as: 773-3482). The Thermal Interface material fills air pockets between the PCB and the heat sink surfaces, forming a continuous layer to improve the transfer of heat away from the LED.
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
