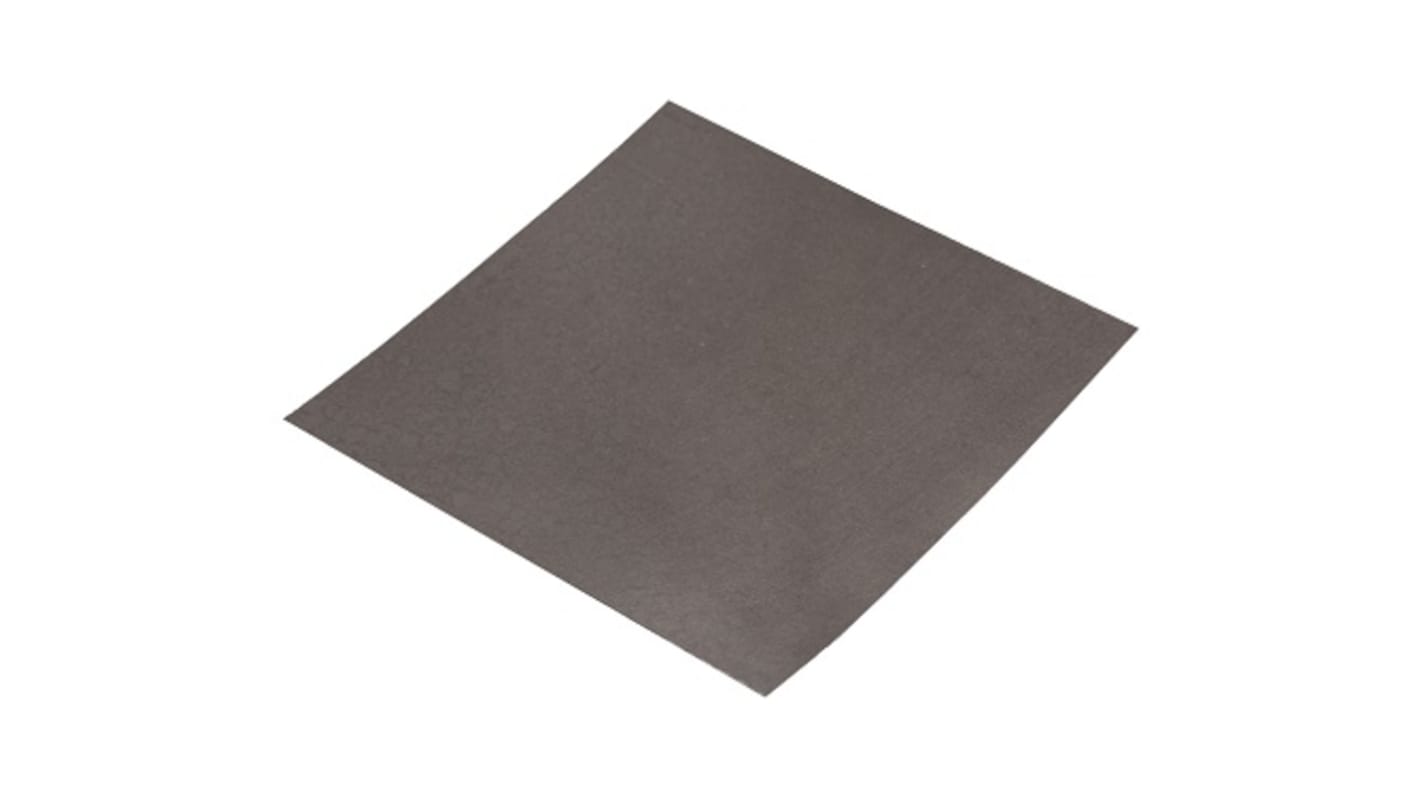

RS PRO Self-Adhesive Thermal Interface Sheet, 0.11mm Thick, 1000W/m·K, Graphite, 90 x 115mm

View all Thermal Pads
Bulk discount available

Subtotal (1 unit)*

£9.25

(exc. VAT)

£11.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£9.25
10 - 99£8.80
100 +£6.93

*price indicative

RS Stock No.:
245-7321
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Dimensions

90 x 115mm

Thickness

0.11mm

Length

115mm

Width

90mm

Diameter

115mm

Thermal Conductivity

1000W/m·K

Material

Graphite

Self-Adhesive

Yes

Maximum Operating Temperature

100°C

Colour

Grey

COO (Country of Origin):
CN

RS PRO Self Adhesive Crystallised Graphite Thermal Pad


RS PRO crystallised graphite thermal pads are highly orientated graphite sheets designed for thermal management as well as providing a reduction in vibration and shock damage to internal components.

RS PRO Graphite sheets are flexible and thin enabling them to be cut into shape easily and feature insulation material on both sides of the pad tape including a layer of acrylic adhesive tape for a secure attachment and a layer of Polyester (PET) tape for insulation.

Constructed from highly thermal conductive Graphite. Graphite thermal pads are ideal for a range of applications and can be used to provide thermal management or heatsinking in limited spaces or as a heat spreader at an interface level.

Features and Benefits


  • Acrylic adhesive insulation tape

  • Polyester (PET) insulation

  • High thermal conductivity

  • Low thermal resistance

  • Lightweight and easy to cut

  • RoHS compliant

Applications


  • Smart phones and tablets

  • Electronic components

  • Flat panel displays

  • LED displays

  • Engine control units

  • Computer hard drives
