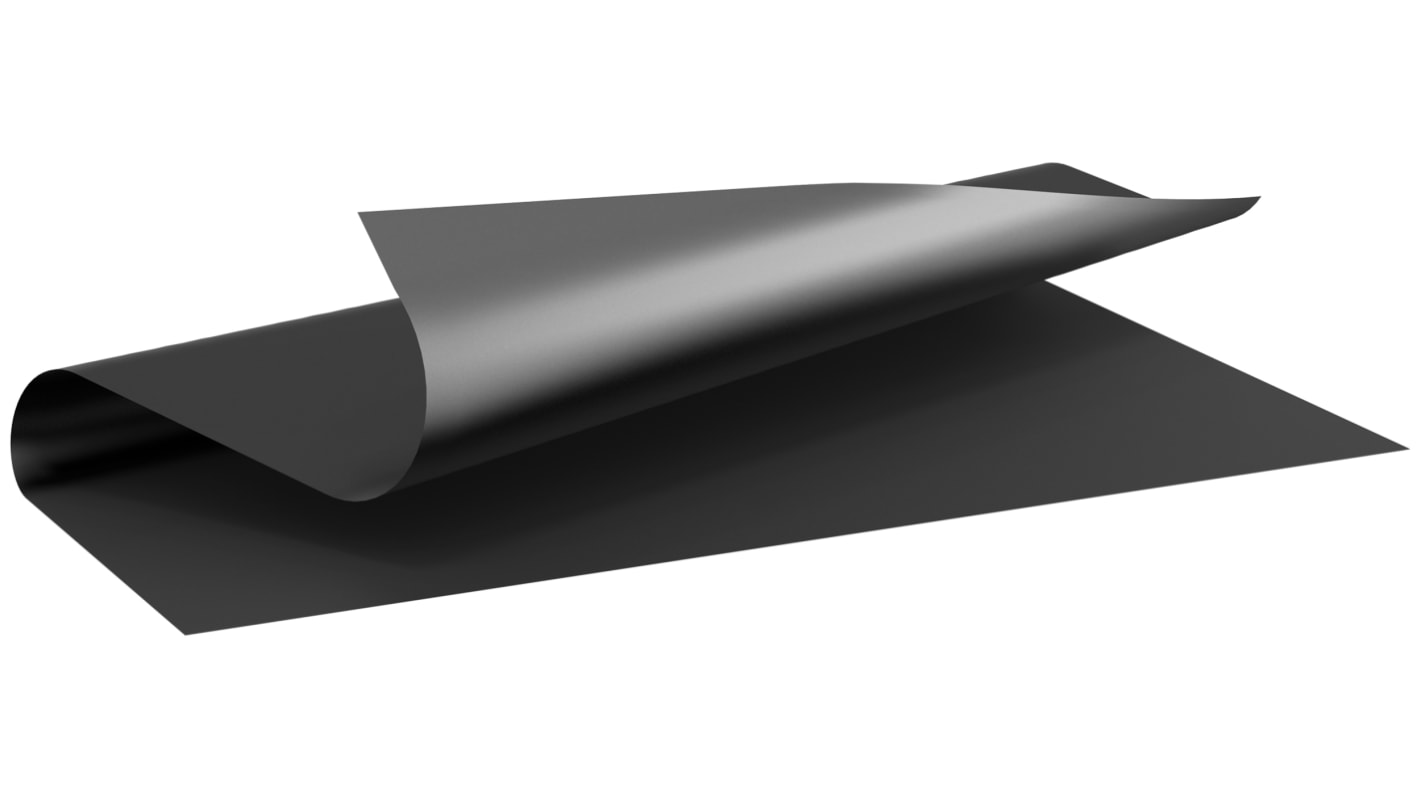

Thermal Interface Sheet, Graphite, 400W/m·K, 121 x 104.5mm 0.2mm

  • RS Stock No. 135-9359
  • Mfr. Part No. EYGS1012ZLSH
  • Brand Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Panasonic Soft-PGS Compressable Graphite Sheet, Type EYGS

The range of Panasonic Soft-PGS (Compressible Type) are graphite sheets dedicated for use as thermal interface materials. The Soft-PGS (Compressible Type) has high compressibility compared to standard PGS, which enables reducing the thermal resistance by following gap, warpage and distortion of targets / substrates. The excellent heat resistance and reliability of the Soft-PGS help to obtain longer service life and higher performance of various components, such as power modules. The Soft-PGS (Compressible Type) is cost-saving, because it allows you to reduce your existing processes. Unlike grease, there is no necessity for printing process, since it is a sheet-type product. There are no problems found in grease and phase change materials in the Soft-PGS, which makes it excellent TIM.

Features and Benefits

• Thermal Resistance: 0.2K cm2/W (600 kPA)
• Highly reliable and long lasting
• RoHs compliant
• Operating temperature range -55°C to 400°C

Specifications
Attribute Value
Dimensions 121 x 104.5mm
Thickness 0.2mm
Length 121mm
Width 104.5mm
Thermal Conductivity 400W/m·K
Material Graphite
Minimum Operating Temperature -55°C
Maximum Operating Temperature +400°C
Priced to Clear Yes
Operating Temperature Range -55 → +400 °C
Series EYGS
Available to back order for despatch 10/11/2020
Price Each (In a Bag of 10)
£ 20.832
(exc. VAT)
£ 24.998
(inc. VAT)
Units
Per unit
Per Bag*
10 +
£20.832
£208.32
*price indicative
