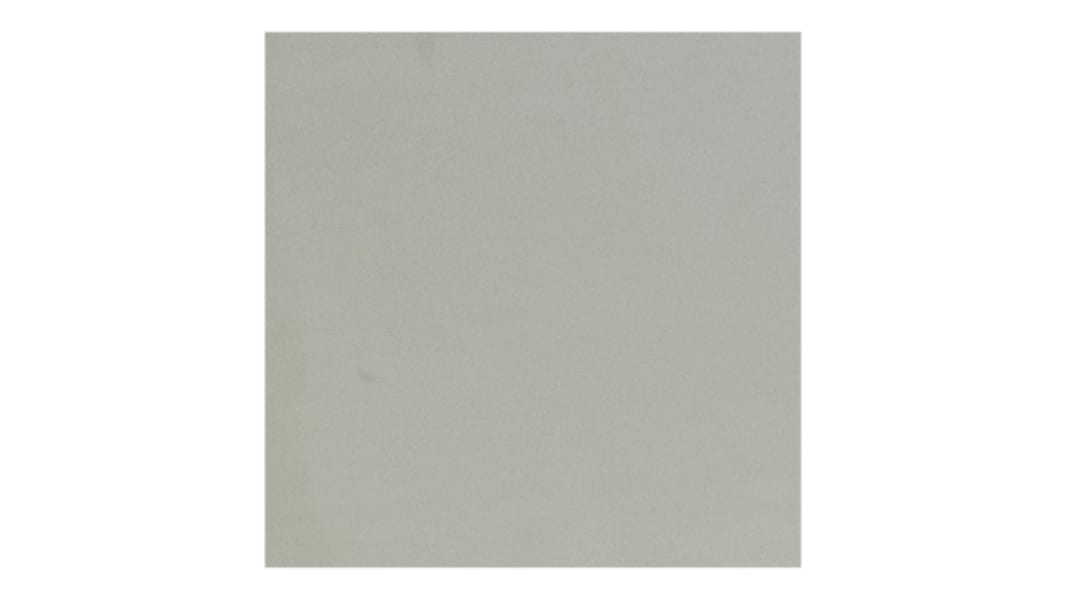

Thermal Interface Pad, Graphite, 13.5 x 13.5mm, Self-Adhesive

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

ILS Thermal Interface Materials (TIM) - SCOB LEDs

A range of TIM (Thermal Interface Material) pads from Intelligent LED Solutions intended for use with the Duris S8 & S10 series of SCOB LEDs. Thermally conductive pads provide an essential interface between the LED modules and their associated heatsinks - they help to ensure efficient operation and long operating life. The pads are available in a variety of sizes with both single- and double-sided adhesive options.

Thermal Interface Materials, Intelligent LED Solutions

The ILA-TIM-XXXX-YY series of high-performance, cost effective thermal Interface Material (TIM), from Intelligent LED Solutions, is designed for use with their standard LED array products (such as: 773-3482). The Thermal Interface material fills air pockets between the PCB and the heat sink surfaces, forming a continuous layer to improve the transfer of heat away from the LED.
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).

Specifications
Attribute Value
Dimensions 13.5 x 13.5mm
Length 13.5mm
Width 13.5mm
Material Graphite
Self-Adhesive Yes
Material Trade Name TIM
Series ILA
Colour Grey
Available to back order for despatch 10/02/2020
Price Each (In a Pack of 4)
£ 2.19
(exc. VAT)
£ 2.63
(inc. VAT)
Units
Per unit
Per Pack*
4 - 16
£2.19
£8.76
20 - 36
£2.03
£8.12
40 +
£1.895
£7.58
*price indicative
