Electrolube Electrolube GFP150FG Series Thermal Gap Pad, 0.5 mm Thick, 1.5 W/mK, 320 mm, 320mm

View all Thermal Pads

Subtotal (1 box of 100 units)*

£2,966.04

(exc. VAT)

£3,559.25

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£2,966.04£29.66

*price indicative

RS Stock No.:
665-342
Mfr. Part No.:
GFP150FG 320*320*0,5T/mm
Brand:
Electrolube
Find similar products by selecting one or more attributes.
Select all

Brand

Electrolube

Product Type

Thermal Gap Pad

Thickness

0.5mm

Thermal Conductivity

1.5W/mK

Trade Name

Electrolube GFP150FG

Hardness

20 Shore 00

Width

320mm

Standards/Approvals

REACH, RoHS

Length

320mm

Colour

Pink

Minimum Operating Temperature

60°C

Maximum Operating Temperature

180°C

Series

Electrolube GFP150FG

RoHS Status: Exempt

COO (Country of Origin):
TW

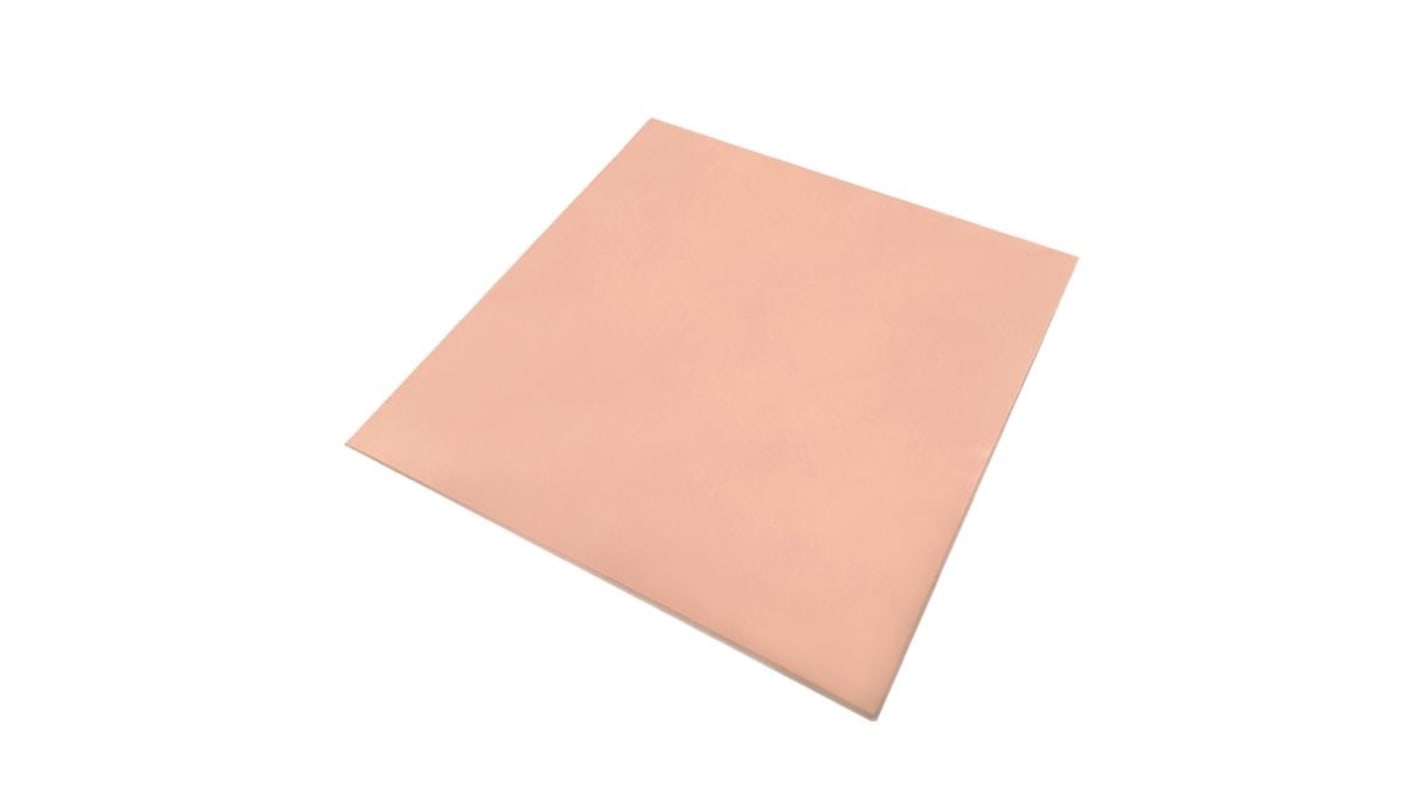

The Electrolube GFP150FG is a silicone based, thermally conductive and electrically isolating gap filling pad with a thermal conductivity of 1.5 W/m-K. Due to its flexibility and softness, the GFP150FG is highly suitable for applications where height differences need to be adjusted. The material is reinforced with fiberglass for additional strength and ease of handling.

Thermal conductivity of 1.5 W/m-K; aids rapid heat transfer over uneven surfaces

Very soft, requires low compression force to ensure good wet-out

Fiberglass reinforced for additional strength and ease of handling

Available in a range of thicknesses and die-cut formats
