Testo 872s 865S USB 2.0 Thermal Imaging Camera, 650 °C 320 x 240 Pixel Detector Resolution RSCAL

Name: Testo 872s 865S USB 2.0 Thermal Imaging Camera, 650 °C 320 x 240 Pixel Detector Resolution RSCAL
Brand: Testo
SKU: 245-0507
Price: 3714.60 GBP
Availability: InStock

RS Stock No.:: 245-0507
Mfr. Part No.:: 0560 8725
Brand:: Testo

Testo 872s 865S USB 2.0 Thermal Imaging Camera, 650 °C 320 x 240 Pixel Detector Resolution RSCAL

View all Thermal Imaging Cameras

Subtotal (1 unit)*

£3,095.50

(exc. VAT)

£3,714.60

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£3,095.50

*price indicative

Your uptime, our priority

Data centres need power, cooling and confidence. Total confidence that everything will work seamlessly, all the time. When each second of uptime matters, data centre managers need to rely on partners like RS that can help keep critical systems stable, efficient and ready for growth.

Discover Now

RS Stock No.:: 245-0507
Mfr. Part No.:: 0560 8725
Brand:: Testo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Testo
	Product Type	Thermal Imaging Camera
	Battery Type	Lithium-ion
	Maximum Temperature Measurement	650°C
	Detector Resolution	320 x 240 Pixel
	Display Resolution	480 x 360 pixel
	Interface Type	USB 2.0
	Horizontal Angle of View	31°
	Thermal Sensitivity	0.1°C
	Vertical Angle of View	23°
	Focus Type	Fixed
	Power Source	Lithium-ion Battery, Mains
	Refresh Rate	9Hz
	Minimum Focus Distance	0.5m
	Battery Life	4h
	Series	865S
	Standards/Approvals	EU 2014/30/EU, IEC 60529(IP54), IEC 6006826
	Weight	510g
	Diagonal Display Size	8.9cm
	Model Number	872s
	Calibrated	RSCAL
	IR/Visual Image Combination	IR
	Accuracy	±2 %
	Length	219mm
	Visual Camera	No
	Radiometric Video on Camera	Yes
	Depth	95mm
	Spatial Resolution IFOV	3.4mrad
	Image Storage	Yes
	Emissivity	0.01 to 1
	Width	96mm
	Hazardous Area Certification	No
	Voice Recorder	No
	Image Enhancement	Yes

	Select all
	Brand Testo
	Product Type Thermal Imaging Camera
	Battery Type Lithium-ion
	Maximum Temperature Measurement 650°C
	Detector Resolution 320 x 240 Pixel
	Display Resolution 480 x 360 pixel
	Interface Type USB 2.0
	Horizontal Angle of View 31°
	Thermal Sensitivity 0.1°C
	Vertical Angle of View 23°
	Focus Type Fixed
	Power Source Lithium-ion Battery, Mains
	Refresh Rate 9Hz
	Minimum Focus Distance 0.5m
	Battery Life 4h
	Series 865S
	Standards/Approvals EU 2014/30/EU, IEC 60529(IP54), IEC 6006826
	Weight 510g
	Diagonal Display Size 8.9cm
	Model Number 872s
	Calibrated RSCAL
	IR/Visual Image Combination IR
	Accuracy ±2 %
	Length 219mm
	Visual Camera No
	Radiometric Video on Camera Yes
	Depth 95mm
	Spatial Resolution IFOV 3.4mrad
	Image Storage Yes
	Emissivity 0.01 to 1
	Width 96mm
	Hazardous Area Certification No
	Voice Recorder No
	Image Enhancement Yes

Datasheet - 0560 8725

COO (Country of Origin):: DE

Testo 872s Thermal Imaging Camera, ±2°C Accuracy, 2.8GB Internal Memory - 0560 8725

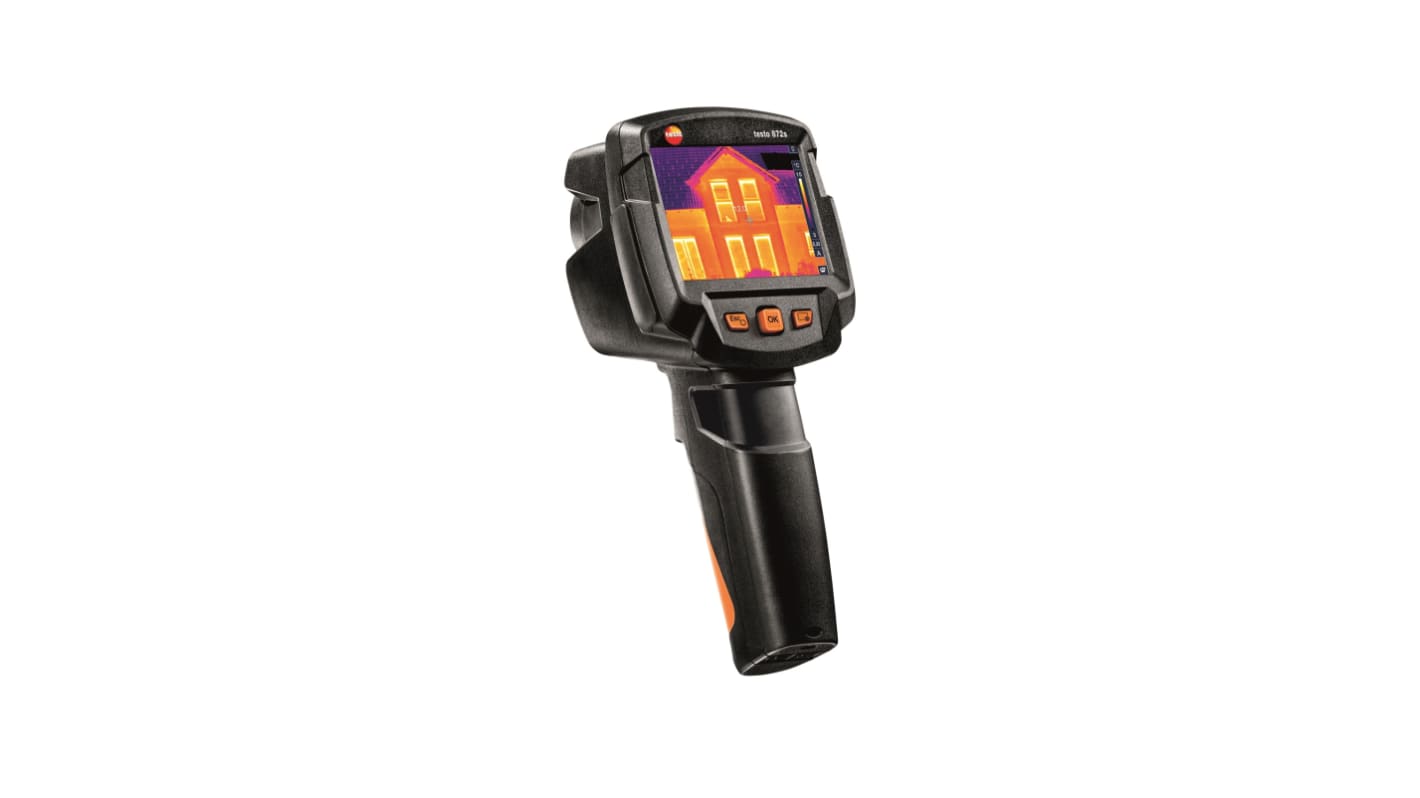

Monitor temperature changes in real time using this thermal imaging camera from Testo. It displays the readings in patches of colour, so warm areas appear in red, yellow and orange, while cold places show as blue and purple. As it has two broad measuring ranges between -30°C and +100°C and 0°C and +650°C, you can use this versatile unit for low and high-temperature measurements. This device is compatible with a WLAN connection, which lets you easily link it to the Testo Thermography App for fast data analysis.

Features & Benefits

• Bluetooth-enabled for a wireless connection to your devices

• Accuracy of ±2°C for precise readings

• Internal memory of 2.8GB for convenient data storage

Applications

• Medical technology

• Plumbing installations

• Aviation engineering

How clear are the images on this camera?

This imaging camera has an infrared resolution of 320 x 240 pixels, offering you clear, high-quality images.
