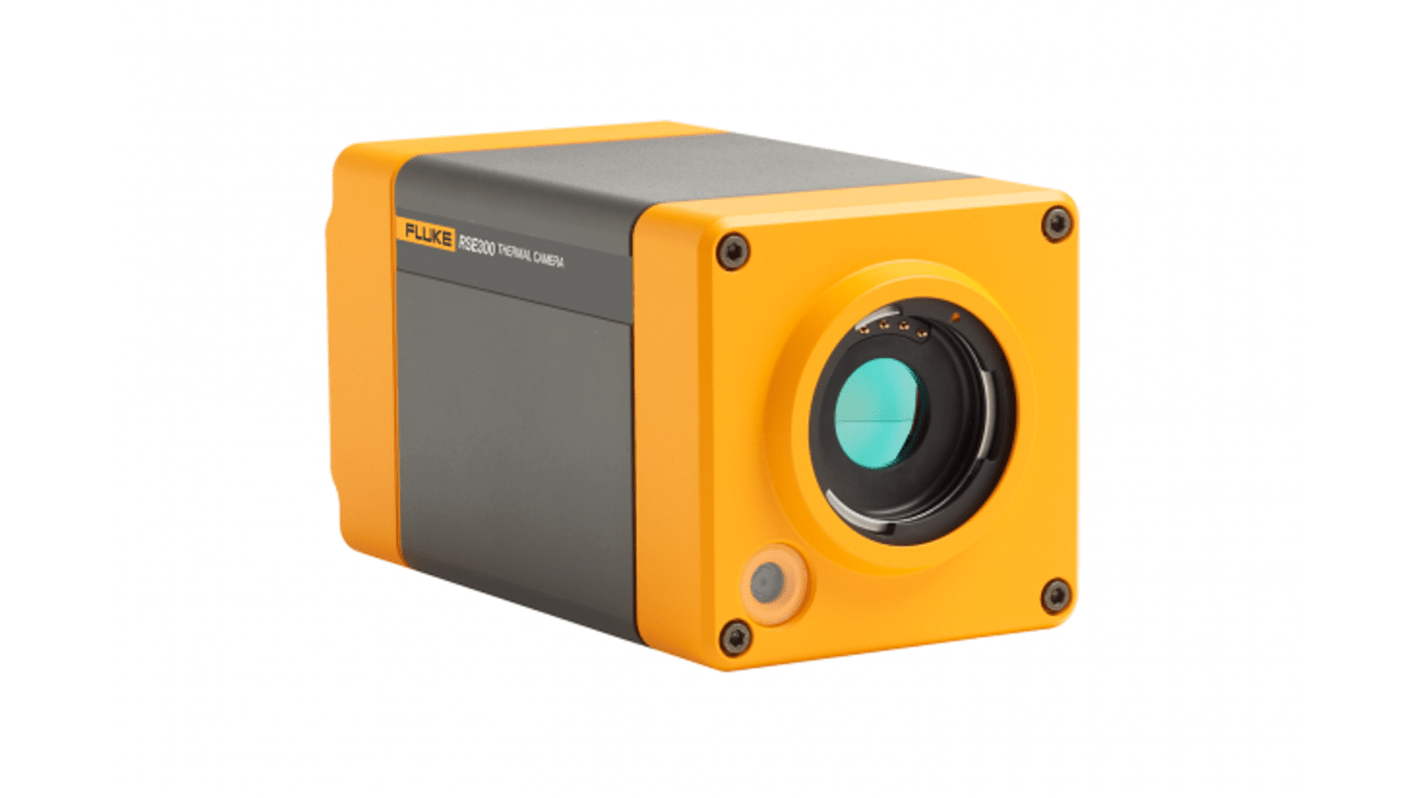

Fluke RSE300 FLK-RSE Thermal Imaging Camera, 1200 °C 320 x 240 Pixel Detector Resolution

View all Thermal Imaging Cameras

Subtotal (1 unit)*

£13,069.00

(exc. VAT)

£15,682.80

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£13,069.00

*price indicative

RS Stock No.:
240-6293
Mfr. Part No.:
FLK-RSE300/C 9HZ
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Maximum Temperature Measurement

1200°C

Product Type

Thermal Imaging Camera

Detector Resolution

320 x 240 Pixel

Display Resolution

320 x 240 pixel

Thermal Sensitivity

30mK

Horizontal Angle of View

34°

Vertical Angle of View

25.5°

Focus Type

Automatic

Refresh Rate

9Hz

Minimum Focus Distance

15cm

Standards/Approvals

No

Series

FLK-RSE

Weight

1kg

Hazardous Area Certification

NO

Auto Capture on Camera

Yes

IR/Visual Image Combination

Visible, Full IR, Picture-in-Picture

Accuracy

±2 %

Width

83mm

Depth

83mm

Battery Level Indicator

No

Spatial Resolution IFOV

1.85mrad

Length

16.5cm

Model Number

RSE300

Radiometric Video on Camera

No

Image Enhancement

No

COO (Country of Origin):
US

Fluke FLK-RSE Series Thermal Imaging Camera, 320x240 Detector Resolution, 1200°C Maximum Temperature Measurement - FLK-RSE300/C 9HZ


This thermal imaging Camera is a mounted infrared instrument designed for research, science and engineering environments to capture and stream thermal data for analysis. It integrates with desktop analysis tools to Record radiometric video, combine visible and infrared imagery, and supports remote monitoring via Ethernet for laboratory and industrial inspection workflows.

Features & Benefits


• 320x240 detector resolution delivers detailed thermal maps for inspection
• 1.85mrad spatial resolution resolves small temperature differentials at distance
• 30mK thermal sensitivity reveals subtle temperature variations
• Measures up to1200°C for high-temperature process monitoring
• Automatic multi‑plane focus ensures Sharp detail across scene depth
• 9Hz frame option permits use where refresh limitations apply

**Applications**


• Suitable for R&D thermal characterisation of electronic assemblies
• Ideal for condition monitoring of electrical switchgear and motors
• Used for thermal profiling in mechanical process development
• Can be used with MATLAB and LabVIEW for automated data analysis
• Suitable for integration into test rigs requiring remote image capture

How is image blending between infrared and visible data handled?


Image fusion is performed in the desktop software with multiple blending modes including picture‑in‑picture and full IR or visible options for contextualised analysis.

What file types can I export for reporting and analysis?


Exportable formats include non‑radiometric .bmp, .jpg, .avi and fully radiometric .is2/.is3 Plus common image types such as PNG and TIFF via the desktop software.

How does the unit connect for live streaming and control?


Live display and remote operation are supported over Ethernet using GigE Vision interfaces through the desktop application.

What lenses and magnification options are available for specialised imaging?


Optional wide, macro and 2x or 4x telephoto lenses extend scene coverage and magnification for targeted inspection tasks.

What operating temperature range allows field deployment?


The device operates between -10°C and +50°C, enabling use in typical laboratory and industrial settings.
