FLIR A65sc Benchtop Test Thermal Camera Kit, -25 → +135 °C, -40 → +550 °C, 640 x 512pixel Detector
- RS Stock No.:
- 175-4978
- Mfr. Part No.:
- 73413-0102
- Brand:
- FLIR
Discontinued
- RS Stock No.:
- 175-4978
- Mfr. Part No.:
- 73413-0102
- Brand:
- FLIR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FLIR | |
| Temperature Measurement Range | -25 → +135 °C, -40 → +550 °C | |
| Detector Resolution | 640 x 512pixel | |
| Model Number | A65sc | |
| Thermal Sensitivity | <50mK | |
| Best Temperature Measurement Accuracy | ±5 °C | |
| Focus Type | Fixed | |
| Refresh Rate | 30Hz | |
| Application | Process Control, Quality Assurance, Stereoscopic | |
| Model Number p | A65sc | |
| Select all | ||
|---|---|---|
Brand FLIR | ||
Temperature Measurement Range -25 → +135 °C, -40 → +550 °C | ||
Detector Resolution 640 x 512pixel | ||
Model Number A65sc | ||
Thermal Sensitivity <50mK | ||
Best Temperature Measurement Accuracy ±5 °C | ||
Focus Type Fixed | ||
Refresh Rate 30Hz | ||
Application Process Control, Quality Assurance, Stereoscopic | ||
Model Number p A65sc | ||
- COO (Country of Origin):
- EE

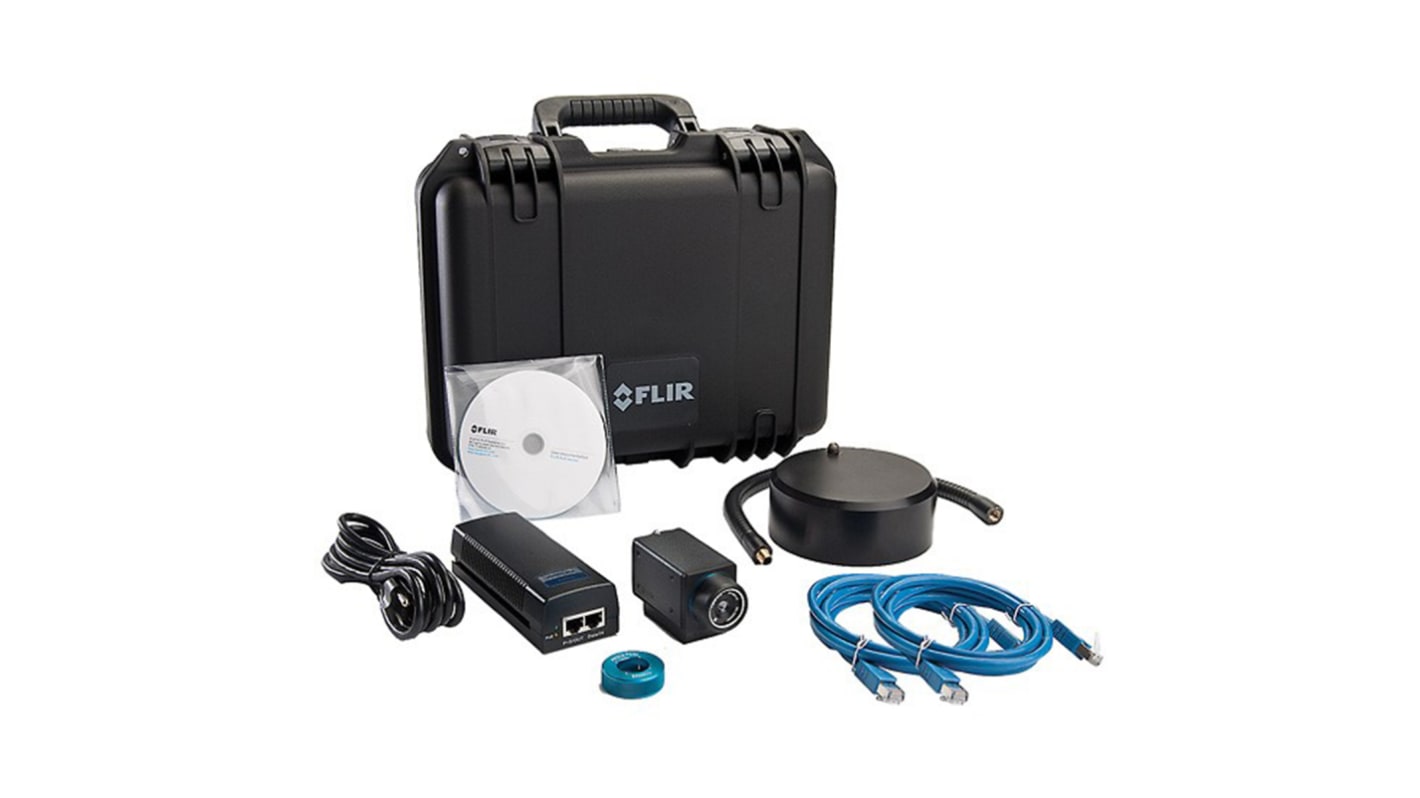

Thermal Imaging Temperature Sensors Kit
The FLIR A65sc thermal imaging temperature sensor kit has an image frequency of 30Hz. It is an integrates flawlessly into the prevailing systems offering widespread visual temperature monitoring. This comes with an SC kit.
Features and Benefits
• IR resolution of 640 x 512
• Image frequency of 30Hz
• 13mm lens with fixed focus optics
• ±9°F (±5°C) or ±5% of reading accuracy
• Detector: Uncooled VOx micro bolometer
• Spectrum range 7.5-13μm
• Bit rate of 14-bit 640 x 512 at 30Hz
• Plug and play compatible
• RJ-45 gigabit Ethernet connection
• Operating temperature range between -15°C and 60°C
• Image frequency of 30Hz
• 13mm lens with fixed focus optics
• ±9°F (±5°C) or ±5% of reading accuracy
• Detector: Uncooled VOx micro bolometer
• Spectrum range 7.5-13μm
• Bit rate of 14-bit 640 x 512 at 30Hz
• Plug and play compatible
• RJ-45 gigabit Ethernet connection
• Operating temperature range between -15°C and 60°C
Applications
• Government and defence
• Industries
• Public safety and transportation
• Research and development
• Marine areas
• Industries
• Public safety and transportation
• Research and development
• Marine areas
Certifications
• IEC 60068-2-30/24
• EN 61000-6-2 (Immunity)
• EN 61000-6-2 (Immunity)
