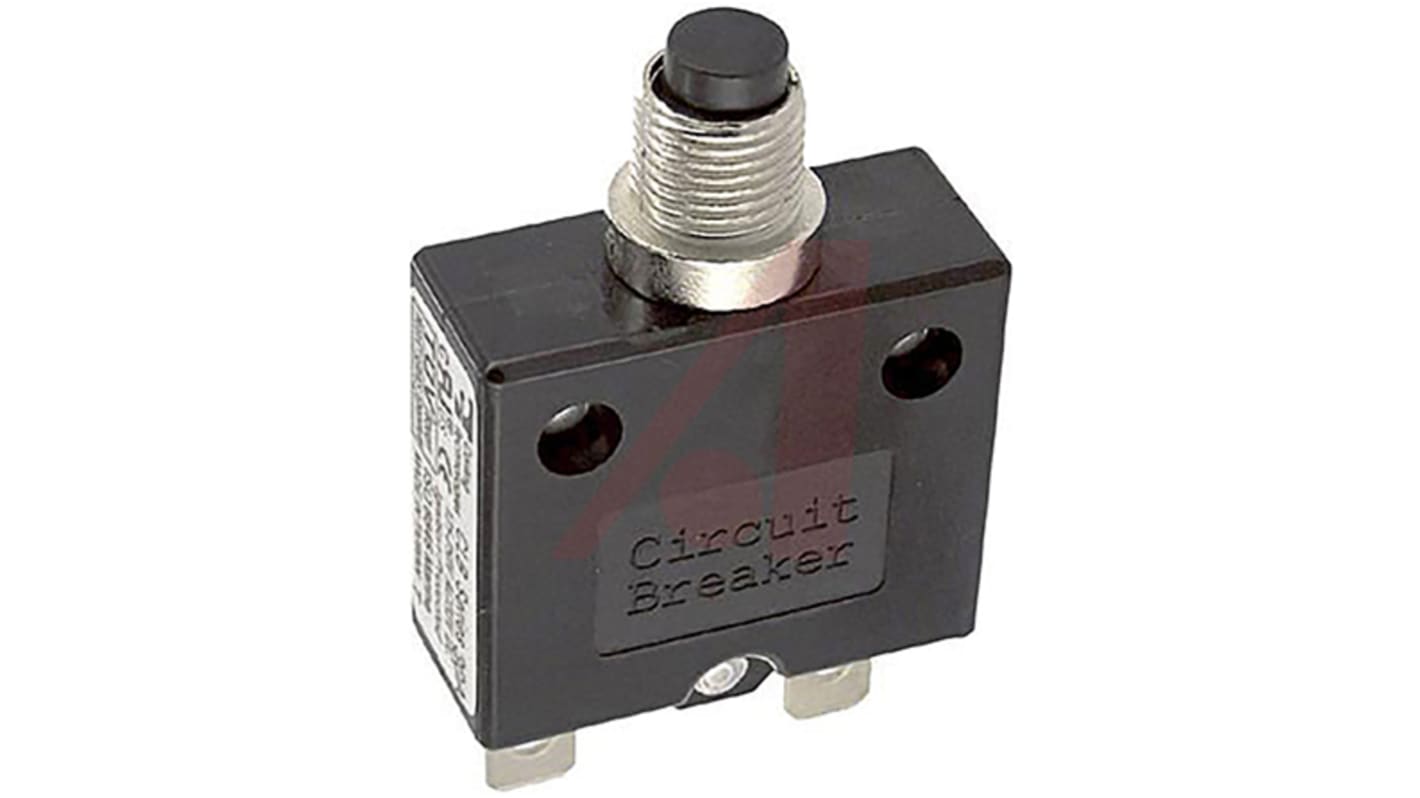

Carling Technologies Thermal Magnetic Circuit Breaker - CLB Single Pole Panel Mount, 30A Current Rating
- RS Stock No.:
- 881-1094
- Mfr. Part No.:
- CLB-303-11A3N-B-A
- Brand:
- Carling Technologies
Discontinued
- RS Stock No.:
- 881-1094
- Mfr. Part No.:
- CLB-303-11A3N-B-A
- Brand:
- Carling Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carling Technologies | |
| Current Rating | 30A | |
| Number of Poles | 1 | |
| Series | CLB | |
| Application | Audio Visual Equipment, Household Appliances, Marine Applications, Medical Equipment, Power Strips, Power Supplies, Transportation | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Button | |
| Rated AC Voltage | 250V | |
| Mounting Style | Panel Mount | |
| Break Time | Time Delayed | |
| Rated DC Voltage | 32V | |
| Overall Length | 35mm | |
| Terminal Contact Type | Pin | |
| Overall Dimensions | 35 x 14.5 x 58.6mm | |
| Mounting Hole Width | 11.2mm | |
| Mounting Hole Length | 10mm | |
| Special Features | A Compact Single Pole Push to reset Family Of Thermal Circuit Breaker | |
| Mounting Hole Size | 10 x 11.2mm | |
| Breaking Capacity at Maximum Voltage Rating | 2500 A @ 32 V dc | |
| Overall Depth | 58.6mm | |
| Select all | ||
|---|---|---|
Brand Carling Technologies | ||
Current Rating 30A | ||
Number of Poles 1 | ||
Series CLB | ||
Application Audio Visual Equipment, Household Appliances, Marine Applications, Medical Equipment, Power Strips, Power Supplies, Transportation | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Button | ||
Rated AC Voltage 250V | ||
Mounting Style Panel Mount | ||
Break Time Time Delayed | ||
Rated DC Voltage 32V | ||
Overall Length 35mm | ||
Terminal Contact Type Pin | ||
Overall Dimensions 35 x 14.5 x 58.6mm | ||
Mounting Hole Width 11.2mm | ||
Mounting Hole Length 10mm | ||
Special Features A Compact Single Pole Push to reset Family Of Thermal Circuit Breaker | ||
Mounting Hole Size 10 x 11.2mm | ||
Breaking Capacity at Maximum Voltage Rating 2500 A @ 32 V dc | ||
Overall Depth 58.6mm | ||
Carling Technologies CLB-Series Circuit Breakers
Carling Technologies CLB-Series is a compact, single pole, push-to-reset thermal circuit breaker designed to protect equipment. The CLB-Series features a wide range of current ratings, with a variety of bushing and termination options available.
The CLB-Series utilizes a simple, precision design with few moving parts that makes these breakers cost effective, and extremely reliable for circuit protection, with high resistance against shock and vibration.
The CLB-Series utilizes a simple, precision design with few moving parts that makes these breakers cost effective, and extremely reliable for circuit protection, with high resistance against shock and vibration.
2500 V ac dielectric strength
100 megohms insulation resistance
Compact space saving package
100 megohms insulation resistance
Compact space saving package
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
