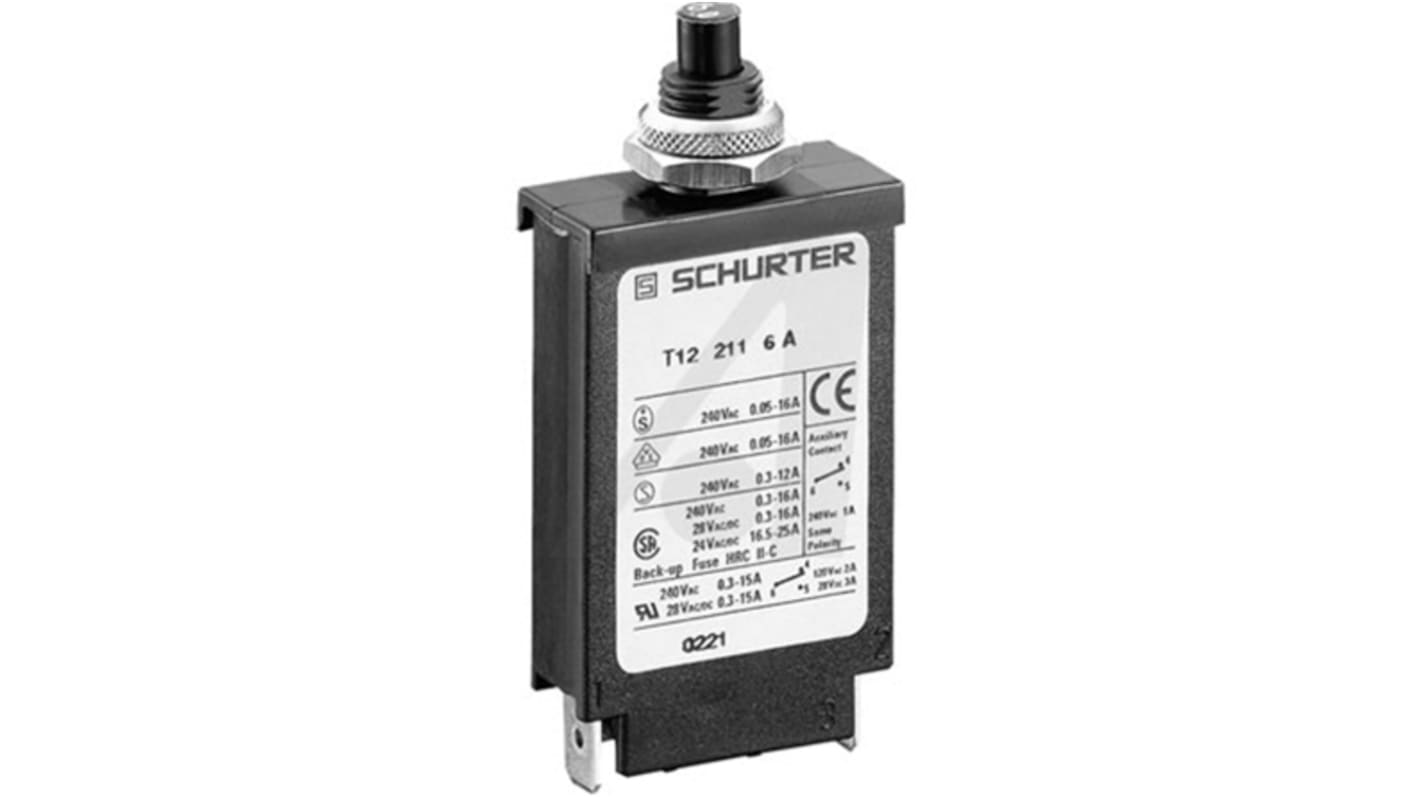

Schurter Thermal Magnetic Circuit Breaker - T12-211 Single Pole 28 V dc, 240 V ac Voltage Rating Snap In, 1A Current
- RS Stock No.:
- 868-8908
- Mfr. Part No.:
- 4410.0655
- Brand:
- Schurter
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 868-8908
- Mfr. Part No.:
- 4410.0655
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Current Rating | 1A | |
| Number of Poles | 1 | |
| Voltage Rating | 28 V dc, 240 V ac | |
| Series | T12-211 | |
| Application | Household Appliances, Power Supplies, Power Tools, Uninterruptible Power Supply | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Button | |
| Mounting Style | Snap In | |
| Rated DC Voltage | 28V | |
| Mounting Hole Diameter | 9.6mm | |
| Overall Length | 31mm | |
| Terminal Contact Type | Quick Connect | |
| Overall Depth | 14.5mm | |
| Mounting Hole Size | 8.9 x 9.6 (Dia.)mm | |
| Overall Dimensions | 31 x 66.5 x 14.5mm | |
| Mounting Hole Length | 8.9mm | |
| Circuit Breaker Type | MCB | |
| Breaking Capacity at Maximum Voltage Rating | 1 kA | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Current Rating 1A | ||
Number of Poles 1 | ||
Voltage Rating 28 V dc, 240 V ac | ||
Series T12-211 | ||
Application Household Appliances, Power Supplies, Power Tools, Uninterruptible Power Supply | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Button | ||
Mounting Style Snap In | ||
Rated DC Voltage 28V | ||
Mounting Hole Diameter 9.6mm | ||
Overall Length 31mm | ||
Terminal Contact Type Quick Connect | ||
Overall Depth 14.5mm | ||
Mounting Hole Size 8.9 x 9.6 (Dia.)mm | ||
Overall Dimensions 31 x 66.5 x 14.5mm | ||
Mounting Hole Length 8.9mm | ||
Circuit Breaker Type MCB | ||
Breaking Capacity at Maximum Voltage Rating 1 kA | ||
Non Compliant
- COO (Country of Origin):
- CZ
