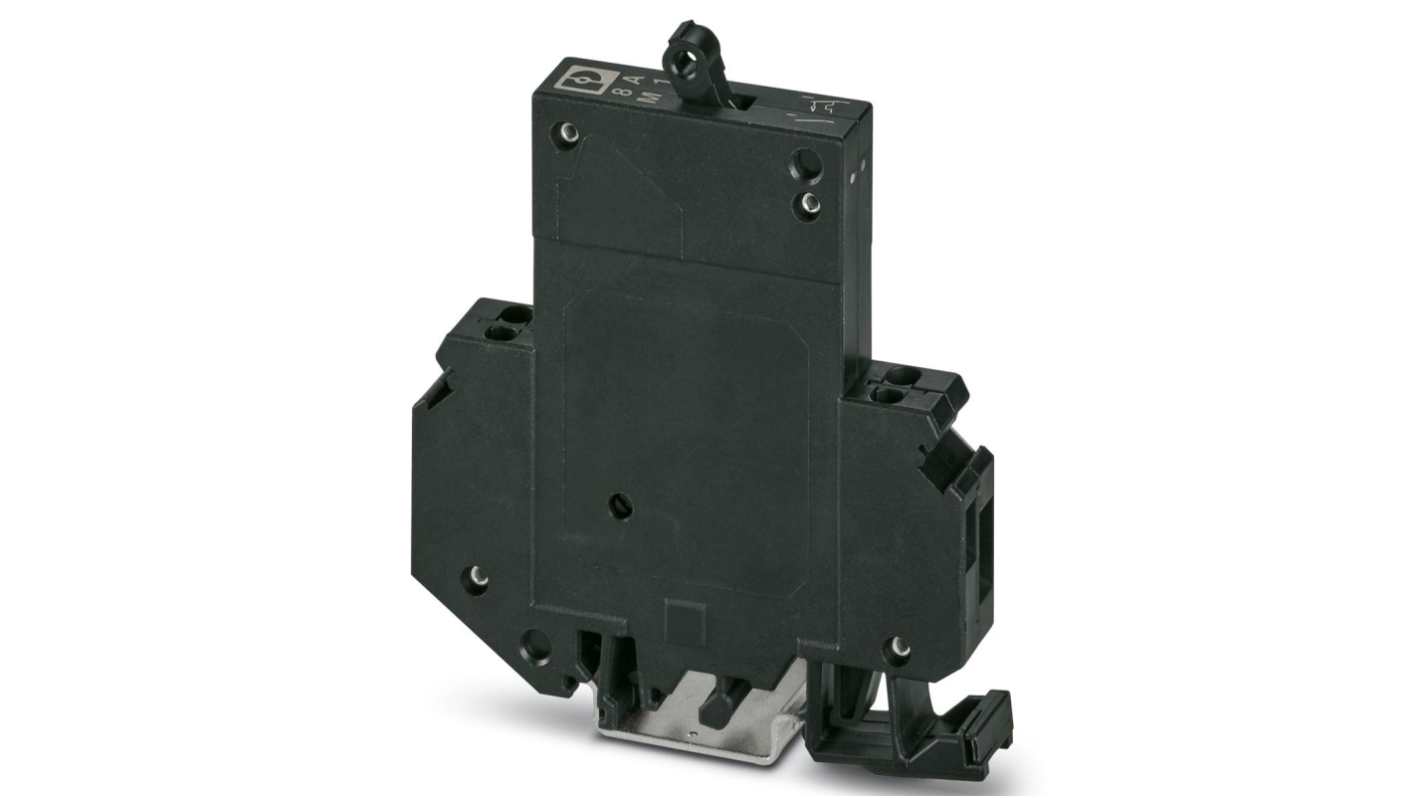

Phoenix Contact TMC M1 Thermal Circuit Breaker - 1-Pole, DIN Rail, 8 A Current Rating, 300 V ac, 65 V dc

View all Thermal Breakers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
801-7043
Mfr. Part No.:
0914510
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Thermal Circuit Breaker

Current Rating

8 A

Number of Poles

1

Series

TMC M1

Width

12.5 mm

Mount Type

DIN Rail

Terminal Type

Screw

Tripping Mechanism

Thermal Magnetic

Reset Actuator Type

Push Button

Tripping Characteristics

Type S

Rated AC Voltage

300 V ac

Standards/Approvals

CE, RoHS

Depth

96mm

Height

82.5mm

Rated DC Voltage

65 V dc

Break Time

Medium

COO (Country of Origin):
DE

Phoenix Contact Thermomagnetic Circuit Breaker - M1


The DIN rail mounting, single pole, TMC 1 M1 range of thermomagnetic circuit breakers from Phoenix Contact have SFB tripping characteristics that give a maximum overcurrent protection over long cable paths.

Features and Benefits


• DIN rail mounting

• Trip faster than thermal device circuit breakers

• Only 12.5 mm wide

• Screw connection

• Push in or screw connection available

• Integrated remote signalling

• Universal foot for mounting on NS 32 or NS 35

Typical Applications


TMC M1 thermomagnetic circuit breakers are mostly used in process control, information and communication technology because of the different tripping characteristics.

The circuit breakers are a great solution for protecting valves, motors, logic controllers and frequency inverters.
