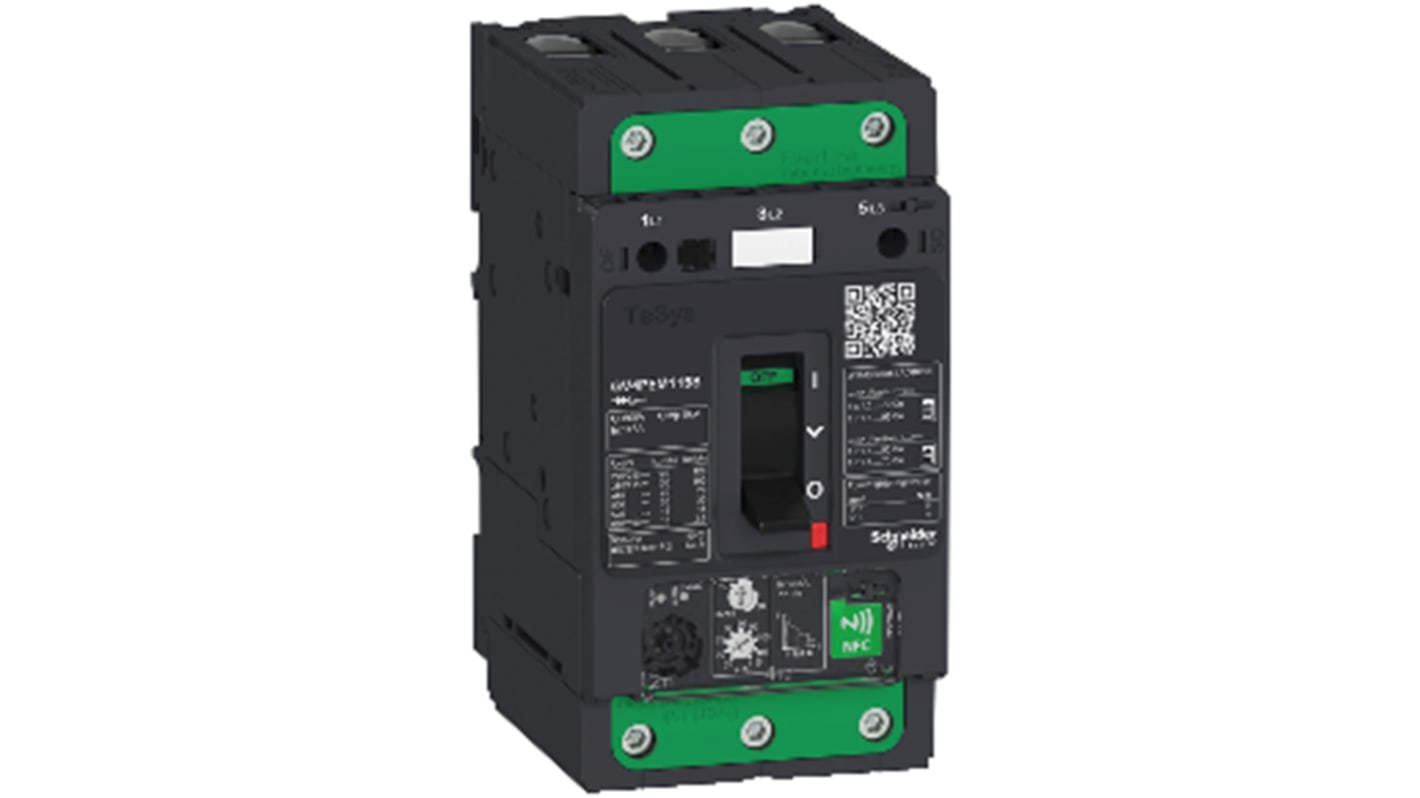

Schneider Electric TeSys GV4PEM Thermal Circuit Breaker - 3-Pole, DIN Rail, 80A Current Rating, 120 kA, 690V ac

View all Thermal Breakers

Subtotal (1 unit)*

£826.54

(exc. VAT)

£991.85

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£826.54

*price indicative

RS Stock No.:
175-1594
Mfr. Part No.:
GV4PEM80S
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Current Rating

80A

Product Type

Thermal Circuit Breaker

Series

GV4PEM

Number of Poles

3

Range

TeSys

Width

81mm

Mount Type

DIN Rail

Terminal Type

Screw

Tripping Mechanism

Thermal Magnetic

Reset Actuator Type

Toggle Switch

Height

155mm

Depth

116mm

Standards/Approvals

IEC, REACH, EU-RO MR, MR, ATEX, RoHS, EN, CCC, CSA, EAC, UL

Rated AC Voltage

690V ac

Breaking Capacity

120kA

New TeSys GV4 is a compact and robust motor circuit breaker, up to 115 A with 100 kA breaking capacity, available with 3 kinds of protection: magnetic, electronic thermal magnetic, electronic thermal magnetic with advanced protections and alarming designed for demanding applications.TeSys GV4 is also equiped with patented Everlink power connections, and may be equiped with a wide range of accessories, mainly: auxiliaries (1 OF, 1SD, 1 coil MN or MX), rotary handle (direct, front extended or side) and advanced alarming and fault differentiation module.

b Magnetic GV4L: to be used with an overload relay or a drive

b Thermal magnetic GV4P: electronic protection with wide range setting, dual class (10 & 20)

b Multifunction motor protection GV4PEM: GV4P with adjustable advanced protections and possibility to have

a side module SDx for alarming and fault differentiation.
