Hirschmann Test & Measurement Test Probe 16A, 60 V, Green, 25 cm Lead Length

View all Test Leads
Bulk discount available

Subtotal (1 unit)*

£9.17

(exc. VAT)

£11.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£9.17
10 +£8.46

*price indicative

RS Stock No.:
280-9071
Mfr. Part No.:
973644104
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Product Type

Test Probe

Lead Length

25cm

Test Lead Type

4 mm Test Probes Lead

Connector Orientation A

Straight

Connector Stackable A

No

Colour

Green

Current

16A

Connector Shrouded A

Yes

Connector Stackable B

No

Voltage

60 V

Connector Orientation B

Straight

Connector Shrouded B

Yes

Connector Gender A

Female

Connector Gender B

Female

Contact Material

Beryllium Copper Alloy, Brass

Standards/Approvals

UL 94, IEC 61010, RoHS

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

70°C

Safety Category Voltage

60, 30V dc

Safety Category Level

CAT II

COO (Country of Origin):
DE

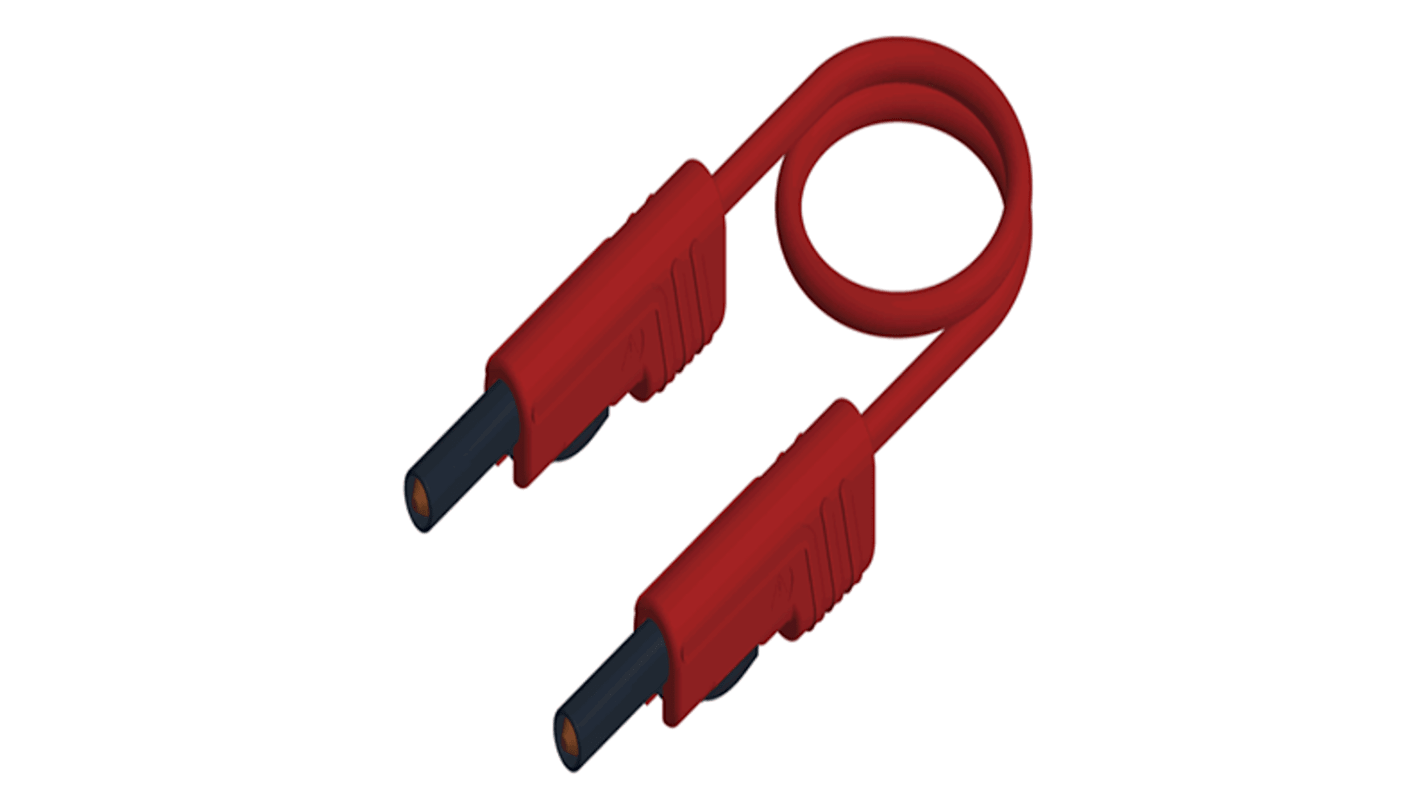

The Hirschmann Test & Measurement measuring lead is contact protected test lead on both sides sprung plug of diameter 4 mm, insulated by latching and sprung insulated, which is only released by pressure on the lateral locking spring, and rigid socket of diameter 4 mm to the far pluginess. It comes with double insulated stranded conductor with integrated color indicator for detecting damage to the insulation.

Highly flexible

Contact pin brass

Contact spring copper beryllium

Temperature rang -15 °C to +70 °C
