Staubli 2 mm Connector Test Lead, 10A, 600V, Black, 1m Lead Length
- RS Stock No.:
- 139-3609
- Mfr. Part No.:
- 65.9174-100-21
- Brand:
- Staubli
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 139-3609
- Mfr. Part No.:
- 65.9174-100-21
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Lead Length | 1m | |
| Current Rating | 10A | |
| Test Lead Type | 2 mm Connector Test Leads | |
| Colour | Black | |
| Voltage Rating | 600V | |
| Connector A Gender | Male | |
| Connector B Gender | Male | |
| Connector A Orientation | Straight | |
| Connector B Orientation | Straight | |
| Contact Material | Gold-Plated | |
| Insulation Material | Silicone | |
| Safety Category | CAT III 600V | |
| Safety Category Voltage | 600V | |
| Safety Category Level | CAT III | |
Select all | ||
|---|---|---|
Brand Staubli | ||
Lead Length 1m | ||
Current Rating 10A | ||
Test Lead Type 2 mm Connector Test Leads | ||
Colour Black | ||
Voltage Rating 600V | ||
Connector A Gender Male | ||
Connector B Gender Male | ||
Connector A Orientation Straight | ||
Connector B Orientation Straight | ||
Contact Material Gold-Plated | ||
Insulation Material Silicone | ||
Safety Category CAT III 600V | ||
Safety Category Voltage 600V | ||
Safety Category Level CAT III | ||
- COO (Country of Origin):
- DE

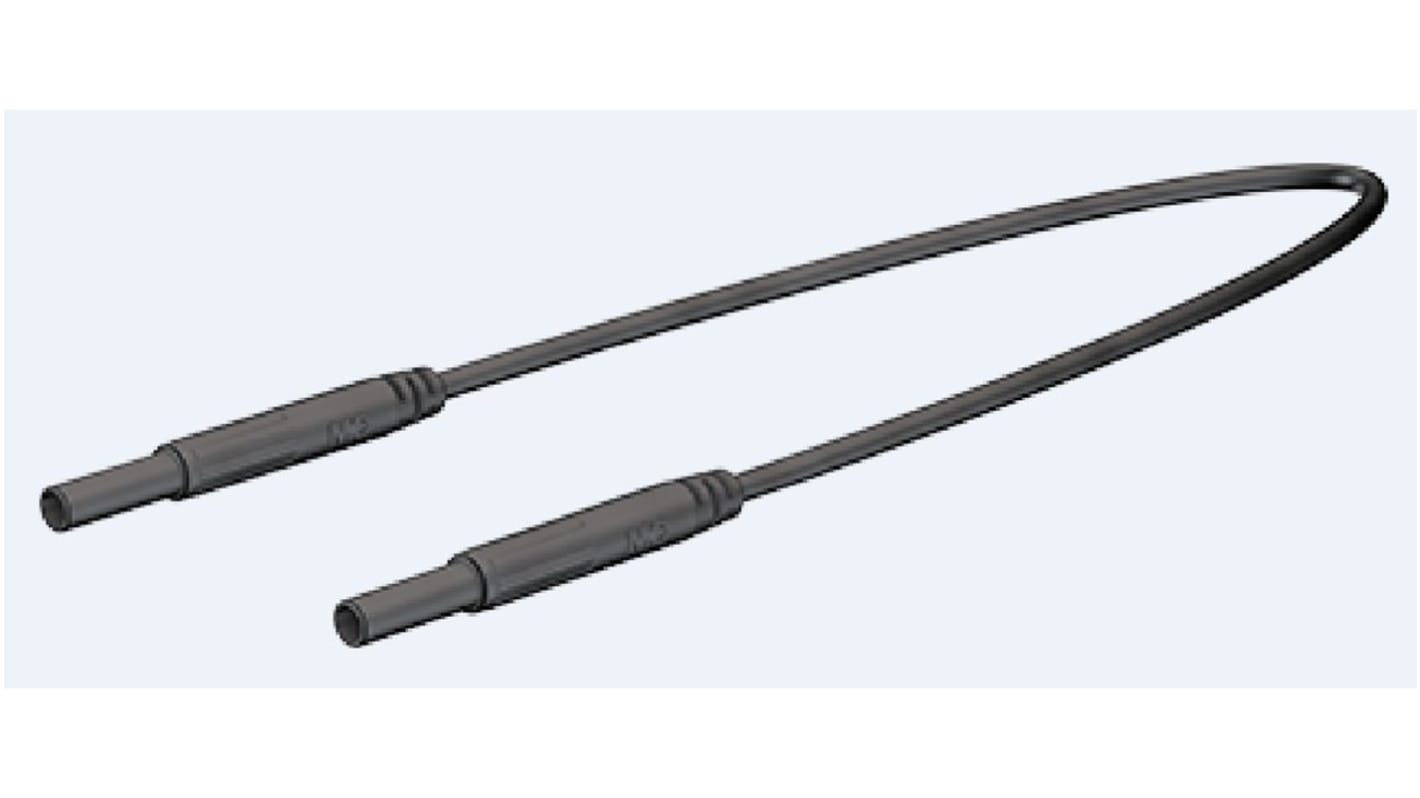

Staubli SLK205-L/SIL Series 2 mm Test Leads
SLK205-L/SIL series 2 mm test leads terminated either end with 2 mm diameter MULTILAM plugs. These test leads have a 600 V CAT III/ 10 A rating. The leads are 0.5mm2 in diameter and have a highly flexible silicone insulation. The plugs have a rigid insulating sleeve. The insulation of these SLK205-L/SIL series test leads is colour coded to aid identification
Features and Benefits
• 600 V, CAT III / 10 A rating
• MULTILAM plugs
• Colour coded insulation
• Flexible silicone cable insulation
• MULTILAM plugs
• Colour coded insulation
• Flexible silicone cable insulation
2mm Multi-Contact Test Lead Plug and Socket Connectors
Multi-Contact 2 mm rigid and multilam plug connectors and socket connectors range is suitable for many applications that call for a self assembled 2 mm diameter plug test lead or a panel mount receptacle socket connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm plug tang to complete.
