Staubli Test lead, 10A, 1kV, Red, 1.5m Lead Length
- RS Stock No.:
- 162-713
- Distrelec Article No.:
- 140-22-323
- Mfr. Part No.:
- 66.9425-150-22
- Brand:
- Staubli
Bulk discount available
Subtotal (1 unit)*
£19.51
(exc. VAT)
£23.41
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 9 | £19.51 |
| 10 - 24 | £18.01 |
| 25 + | £16.59 |
*price indicative
- RS Stock No.:
- 162-713
- Distrelec Article No.:
- 140-22-323
- Mfr. Part No.:
- 66.9425-150-22
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Lead Length | 1.5m | |
| Current Rating | 10A | |
| Colour | Red | |
| Test Lead Type | 4 mm Connector Test Leads | |
| Voltage Rating | 1 kV, 5kV | |
| Connector A Gender | Male | |
| Connector B Gender | Male | |
| Connector A Orientation | Straight | |
| Connector B Orientation | Straight | |
| Contact Material | Brass, Copper Alloy | |
| Insulation Material | TPE | |
| Safety Category | CAT IV 1000 V, CAT IV 5000V | |
| Maximum Operating Temperature | +90°C | |
| Operating Temperature Range | -30 → +90 °C | |
| Safety Category Voltage | 1000 V, 5000V | |
| Safety Category Level | CAT IV | |
| Minimum Operating Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand Staubli | ||
Lead Length 1.5m | ||
Current Rating 10A | ||
Colour Red | ||
Test Lead Type 4 mm Connector Test Leads | ||
Voltage Rating 1 kV, 5kV | ||
Connector A Gender Male | ||
Connector B Gender Male | ||
Connector A Orientation Straight | ||
Connector B Orientation Straight | ||
Contact Material Brass, Copper Alloy | ||
Insulation Material TPE | ||
Safety Category CAT IV 1000 V, CAT IV 5000V | ||
Maximum Operating Temperature +90°C | ||
Operating Temperature Range -30 → +90 °C | ||
Safety Category Voltage 1000 V, 5000V | ||
Safety Category Level CAT IV | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- DE
5kV Connecting Lead XHM-5000

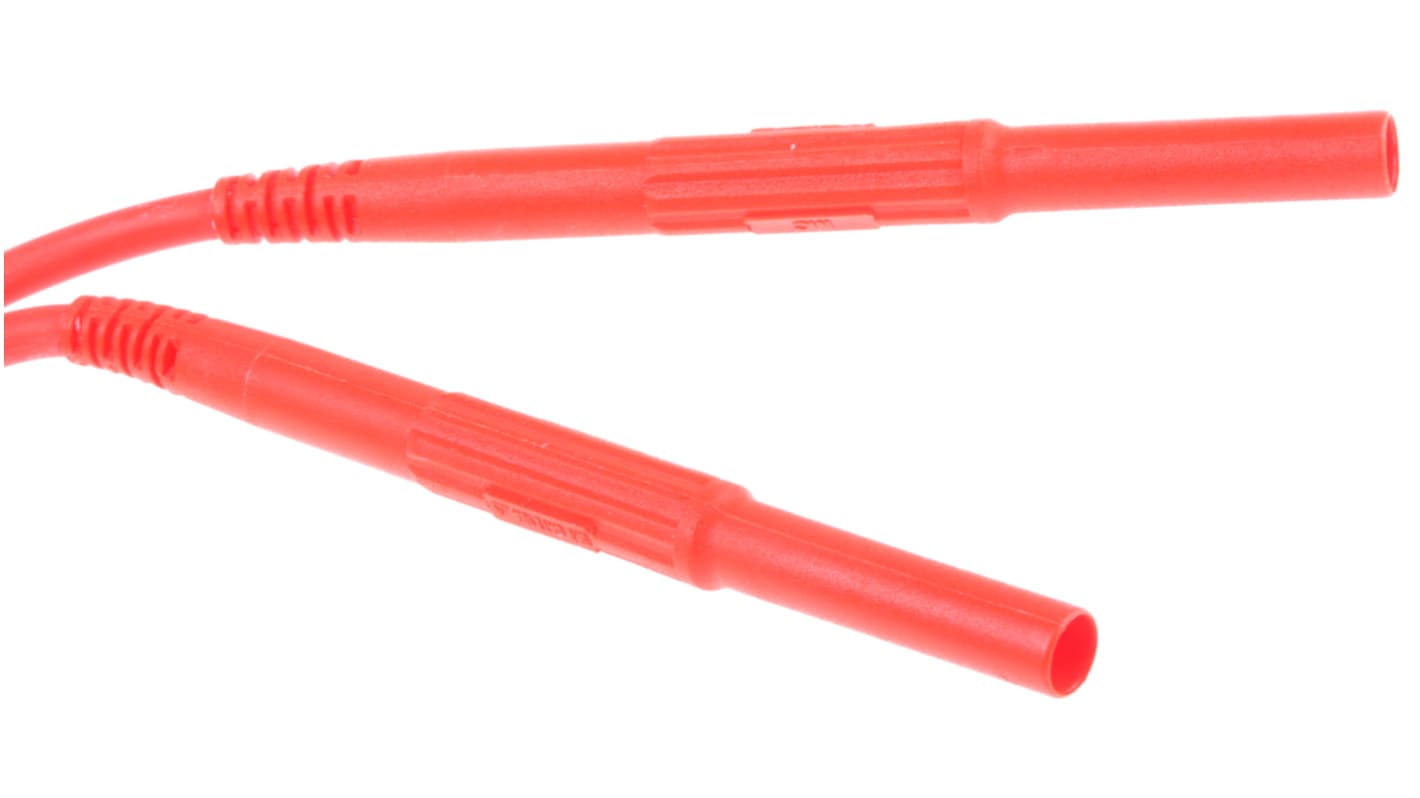

1.5m long highly flexible test lead has in-line Ø4mm Multilam™ plug with rigid insulating sleeve on both ends. Cable insulation is thermoplastic elastomer TPE. It is environmentally friendly halogen free, with extremely high insulation resistance 1.5x1014Ω.
Voltage rating 5kV CAT I (ie. Output voltage of Test instrument) or 1000V CAT IV to IEC/EN61010-031:2002
Current rating 10A
Current rating 10A
Note
For safety reasons, the lead is only compatible with XHB-5000 panel socket.
