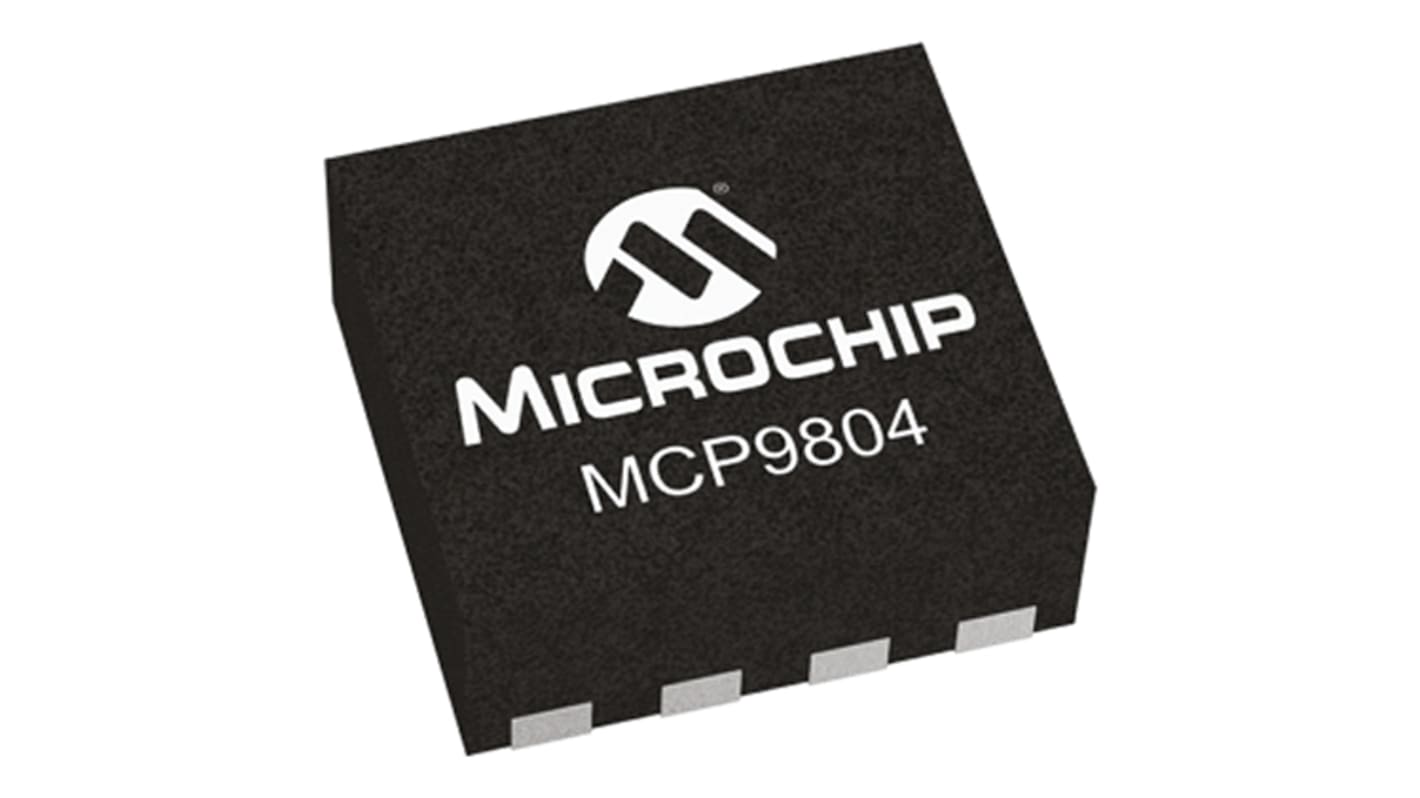

Microchip Temperature Converter, Digital Output, Surface Mount, Serial-I2C, SMBus, ±1°C, 8 Pins
- RS Stock No.:
- 817-3673
- Mfr. Part No.:
- MCP9804T-E/MC
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 817-3673
- Mfr. Part No.:
- MCP9804T-E/MC
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Sensor Function | Temperature | |
| Output Type | Digital | |
| Interface Type | Serial-I2C, SMBus | |
| Accuracy | ±1°C | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Operating Temperature Range | -40 to +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Package Type | DFN | |
| Length | 3mm | |
| Height | 0.95mm | |
| Width | 2mm | |
| Dimensions | 3 x 2 x 0.95mm | |
| Resolution | 8 bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Sensor Function Temperature | ||
Output Type Digital | ||
Interface Type Serial-I2C, SMBus | ||
Accuracy ±1°C | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Operating Temperature Range -40 to +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Package Type DFN | ||
Length 3mm | ||
Height 0.95mm | ||
Width 2mm | ||
Dimensions 3 x 2 x 0.95mm | ||
Resolution 8 bit | ||
- COO (Country of Origin):
- US
MCP9804 Typical Accuracy Temperature Converters
The MCP9804 series of typical accuracy temperature converters have a 2Wire serial interface and convert temperatures of -40°C to +125°C.
Applications include PCs, servers, mobile devices, industrial , food processing and consumer electronics.
Applications include PCs, servers, mobile devices, industrial , food processing and consumer electronics.
The MCP9804 digital temperature sensor converts temperatures between -40°C and +125°C to a digital word with ±1°C (max.) accuracy. The MCP9804 comes with user-programmable registers that provide flexibility for temperature sensing applications.The registers allow user-selectable settings such as Shutdown or low-power modes and the specification of temperature Event and Critical output boundaries. When the temperature changes beyond the specified boundary limits, the MCP9804 outputs an Event signal.
Accuracy:±0.25°C (typ.) from -40°C to +125°C
Accuracy:±1°C (max.) from -40°C to +125°C
Operating Voltage Range: 2.7V to 5.5V
2-wire Interface: I2C/SMBus Compatible
Operating Current: 200 μA (typ.)
Shutdown Current: 2 μA (max.)
Accuracy:±0.25°C (typ.) from -40°C to +125°C
Accuracy:±1°C (max.) from -40°C to +125°C
Operating Voltage Range: 2.7V to 5.5V
2-wire Interface: I2C/SMBus Compatible
Operating Current: 200 μA (typ.)
Shutdown Current: 2 μA (max.)
Available Packages: MSOP-8, 2x3 DFN8
Accuracy:±1°C (max.) from -40°C to +125°C
Operating Voltage Range: 2.7V to 5.5V
2-wire Interface: I2C/SMBus Compatible
Operating Current: 200 μA (typ.)
Shutdown Current: 2 μA (max.)
Accuracy:±0.25°C (typ.) from -40°C to +125°C
Accuracy:±1°C (max.) from -40°C to +125°C
Operating Voltage Range: 2.7V to 5.5V
2-wire Interface: I2C/SMBus Compatible
Operating Current: 200 μA (typ.)
Shutdown Current: 2 μA (max.)
Available Packages: MSOP-8, 2x3 DFN8
