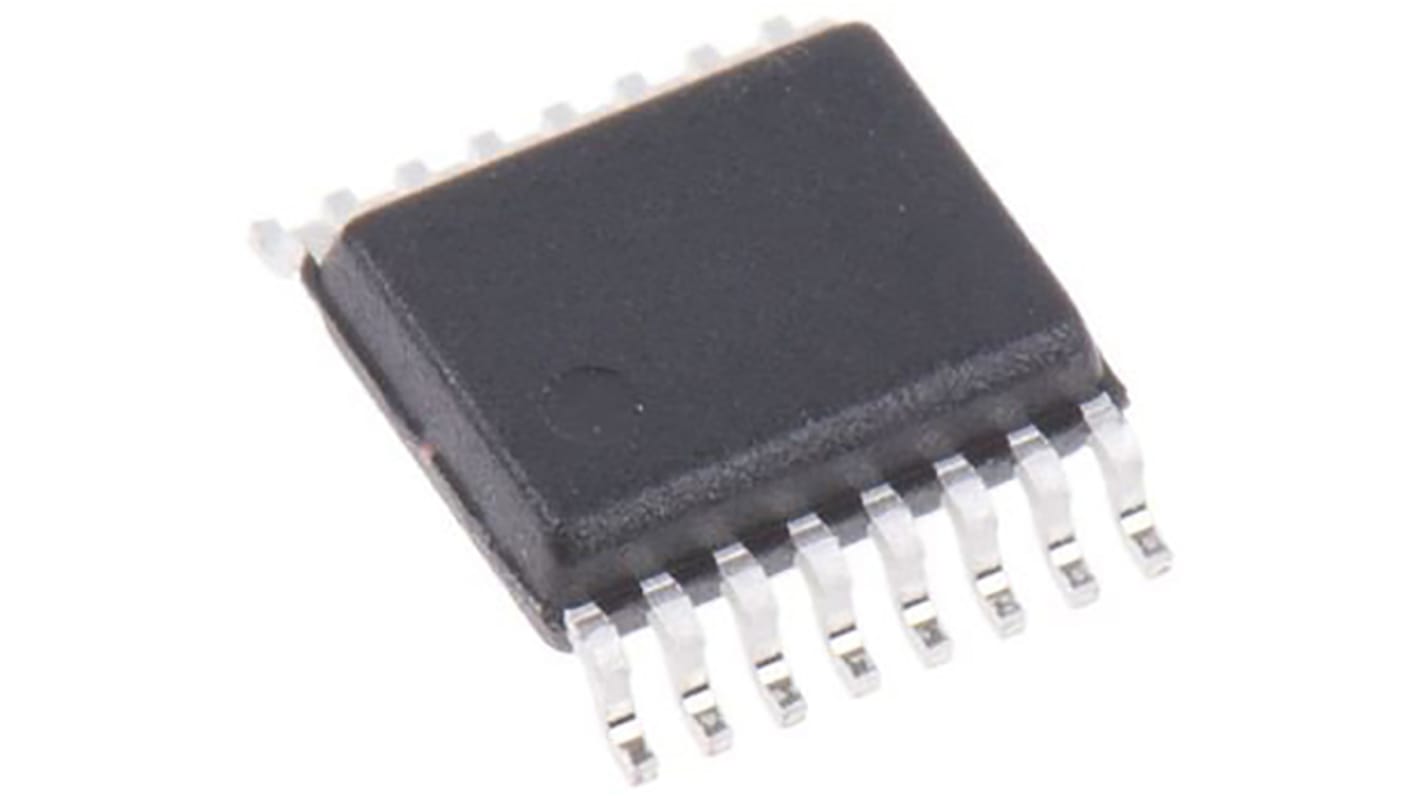

Maxim Integrated Temperature Sensor, PWM Output, Surface Mount, SMBus, ±1°C, 16 Pins
- RS Stock No.:
- 190-1390
- Mfr. Part No.:
- MAX6639AEE+
- Brand:
- Maxim Integrated
55 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£6.938
(exc. VAT)
£8.326
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £6.938 | £34.69 |
| 10 - 20 | £6.25 | £31.25 |
| 25 - 95 | £5.916 | £29.58 |
| 100 - 495 | £5.10 | £25.50 |
| 500 + | £4.344 | £21.72 |
| *price indicative | ||
- RS Stock No.:
- 190-1390
- Mfr. Part No.:
- MAX6639AEE+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
MAX6639 Temperature Monitor & PWM Fan Controller
The MAX6639 series temperature monitor & PWM fan controller is designed to monitor internal temperature plus the temperature of an external diode-connected transistor or alternatively, monitor the temperature of 2 external diode-connected transistors. The fan control element of the MAX6639, uses temperature data to change the speed of up to 2 cooling fans.
Applications include desktop and notebook computers, servers, projectors and networking equipment.
Applications include desktop and notebook computers, servers, projectors and networking equipment.
Features;
2 PWM outputs
2 Thermal-Diode Inputs
Temperature measurement up to 150°C
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
Specifications
Attribute | Value |
|---|---|
| Sensor Function | Temperature |
| Output Type | PWM |
| Interface Type | SMBus |
| Accuracy | ±1°C |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Operating Temperature Range | -40 to +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | QSOP |
| Length | 4.98mm |
| Height | 1.65mm |
| Width | 3.99mm |
| Resolution | 11 bit |
| Dimensions | 4.98 x 3.99 x 1.65mm |
