Jumo iTRON PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 3 Output Logic, Relay, 110 → 240 V ac Supply Voltage
- RS Stock No.:
- 327-5005
- Mfr. Part No.:
- 702042/88-888-000-23/210
- Brand:
- Jumo
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£178.60
(exc. VAT)
£214.32
(inc. VAT)
- RS Stock No.:
- 327-5005
- Mfr. Part No.:
- 702042/88-888-000-23/210
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Output Type | Logic, Relay | |
| Supply Voltage | 110 → 240 V ac | |
| Size | 96 x 48 (1/8 DIN)mm | |
| Number of Outputs | 3 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +55°C | |
| Display Type | LED | |
| IP Rating | IP20, IP65 | |
| Series | iTRON | |
| Range | iTRON 08 | |
| Additional Functionality | ON/OFF, PID | |
| Display Colour | Green | |
| Panel Depth | 70mm | |
Select all | ||
|---|---|---|
Brand Jumo | ||
Output Type Logic, Relay | ||
Supply Voltage 110 → 240 V ac | ||
Size 96 x 48 (1/8 DIN)mm | ||
Number of Outputs 3 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +55°C | ||
Display Type LED | ||
IP Rating IP20, IP65 | ||
Series iTRON | ||
Range iTRON 08 | ||
Additional Functionality ON/OFF, PID | ||
Display Colour Green | ||
Panel Depth 70mm | ||
RoHS Status: Not Applicable

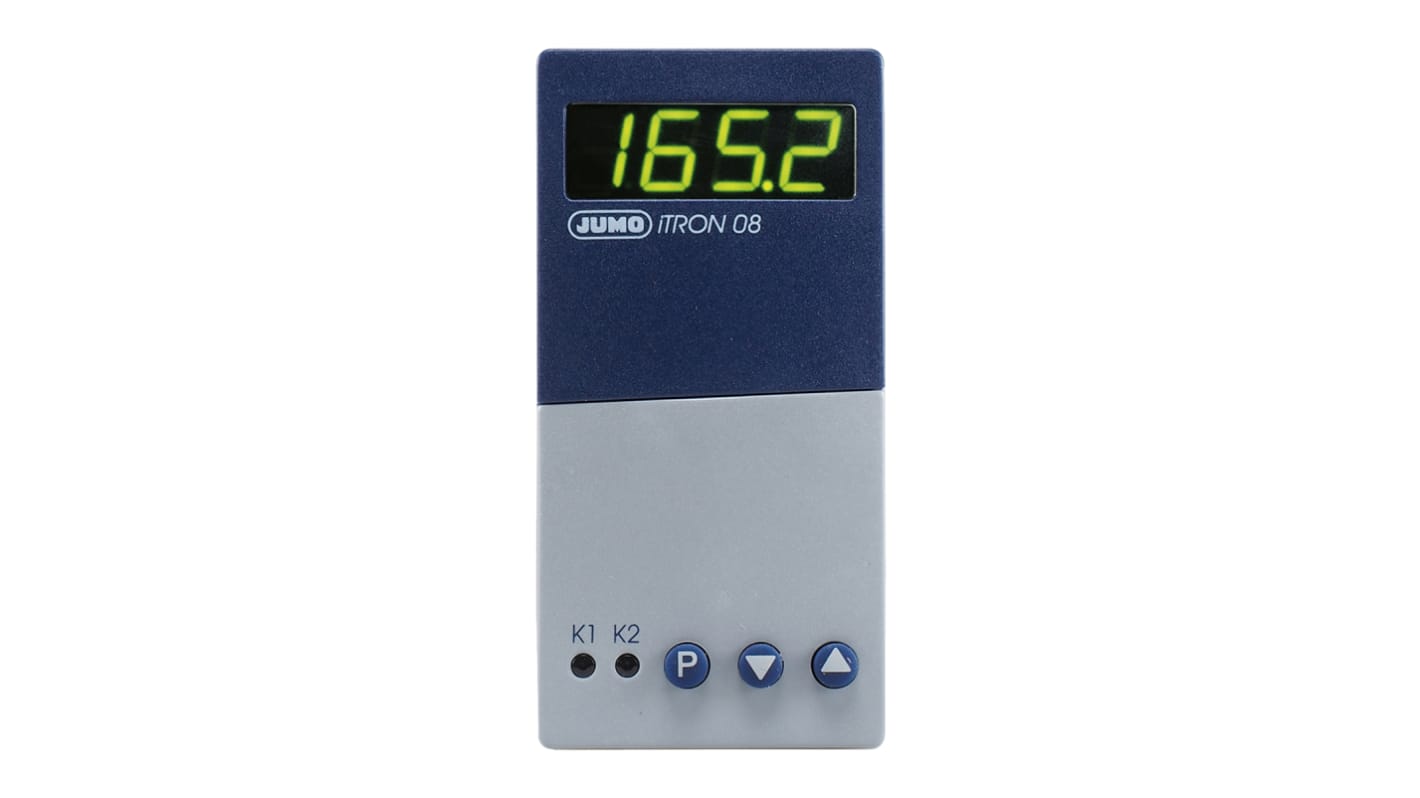

Jumo Temperature Controller
The Jumo iTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 96mm portrait(1/8 DIN) device. It has one relay output and one logic 0/5V, optionally configurable as logic input. It is a universal and freely programmable compact instrument for a variety of control tasks. The plug-in connector and screw terminals establish an electrical connection. The controller can be employed as a single-set point controller with a limit comparator or as double-set point controller. The linearization of the usual transducers is stored.
Features and Benefits
Timer function
1, 2, or no digits after the decimal point
2 yellow light-emitting diodes show the output status
4-digit display in seven green segments with a range of -1999 to 1999 for both °C or °F units of measurement
Analogue input for resistance probes, thermocouples or standardised signals
Auto-optimisation allows the regulator to be adapted automatically to the regulation chain
Can be configured to 2 ranges with alarms or 3 ranges
Increasing or decreasing ramp function
Programmable regulators in 5 different formats that are easy to use
1, 2, or no digits after the decimal point
2 yellow light-emitting diodes show the output status
4-digit display in seven green segments with a range of -1999 to 1999 for both °C or °F units of measurement
Analogue input for resistance probes, thermocouples or standardised signals
Auto-optimisation allows the regulator to be adapted automatically to the regulation chain
Can be configured to 2 ranges with alarms or 3 ranges
Increasing or decreasing ramp function
Programmable regulators in 5 different formats that are easy to use
Certifications
IP20 rated
IP65 rated
IP65 rated
