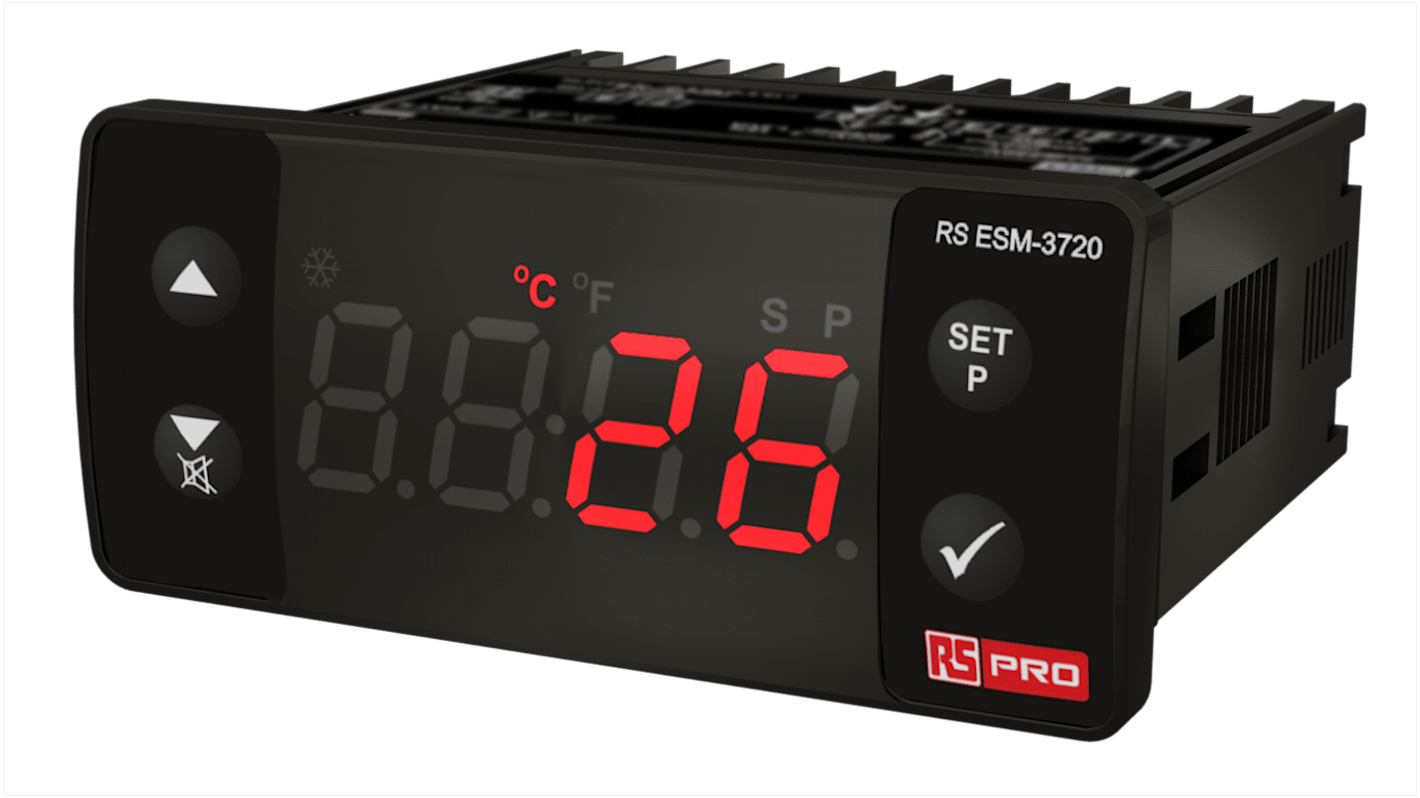

Name: RS PRO Panel Mount PID Temperature Controller, 77 x 35mm 1 Input, 2 Output Relay, SSR, 24 V Supply Voltage ON/OFF, PID
Brand: RS PRO
SKU: 222-8138
Price: 156.50 GBP
Availability: Discontinued

RS PRO Digital Temperature Controllers - ESM 3720 Series

Introducing a range of high-quality digital temperature control units from the trusted brand RS PRO. These universal temperature controllers are designed to control and measure temperature values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features. Our digital temperature controllers are available with a choice in supply voltage and power, all operating with a high degree of accuracy.

Also known as;

Bang-Bang Controllers

Features and Benefits

Remote access, data collecting and controlling with Modbus RTU

Installing parameters using PROKEY

PID or ON/OFF selectable temperature control

Password protection for programming section

Having CE mark according to European Norms

Adjustable internal buzzer according to sensor defect status

Specification

4 Digits Display

2-Wire PT-100 Input

Adjustable temperature offset

2 Output for compressor and alarm controls

Selectable heating or cooling function

Selection of operation with hysteresis

Set value low limit and set value high limit-boundaries

Compressor protection delays

Operation selection of compressor operates continuously, stops or operates periodically in case of sensor defect

Alarm parameters

Temperature range: -20 → +70 °C

Dimensions: 77 x 35 mm

Input

Thermo-resistance input type: PT-100 (IEC751) (ITS 90)

Output

Relay Outputs: 16(8) A@250 Vac at resistive load (Compressor Output)

RS PRO ESM 3720 Series Variants

10 to 30 V, RS stock no: 222-8139

24 V, RS stock no: 222-8136, 222-8138

100 to 240 V, RS stock no: 222-8134, 222-8135

Application

Textiles

Automotive

Machinery

Industrial

Approvals

EAC, CE

Select all	Attribute	Value
	Brand	RS PRO
	Output Type	Relay, SSR
	Supply Voltage	24 V
	Size	77 x 35mm
	Number of Inputs	1
	Number of Outputs	2
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C
	Temperature Range	-20 → +70 °C
	Control Type	ON/OFF, PID Controller
	Mounting Type	Panel Mount
	Input Type	PT100

	Select all
	Brand RS PRO
	Output Type Relay, SSR
	Supply Voltage 24 V
	Size 77 x 35mm
	Number of Inputs 1
	Number of Outputs 2
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +70°C
	Temperature Range -20 → +70 °C
	Control Type ON/OFF, PID Controller
	Mounting Type Panel Mount
	Input Type PT100
