Red Lion PID Temperature Controller
- RS Stock No.:
- 195-9194
- Mfr. Part No.:
- PX2FCA00
- Brand:
- Red Lion
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 195-9194
- Mfr. Part No.:
- PX2FCA00
- Brand:
- Red Lion
Technical Reference
Legislation and Compliance
Product Details
- COO (Country of Origin):
- US

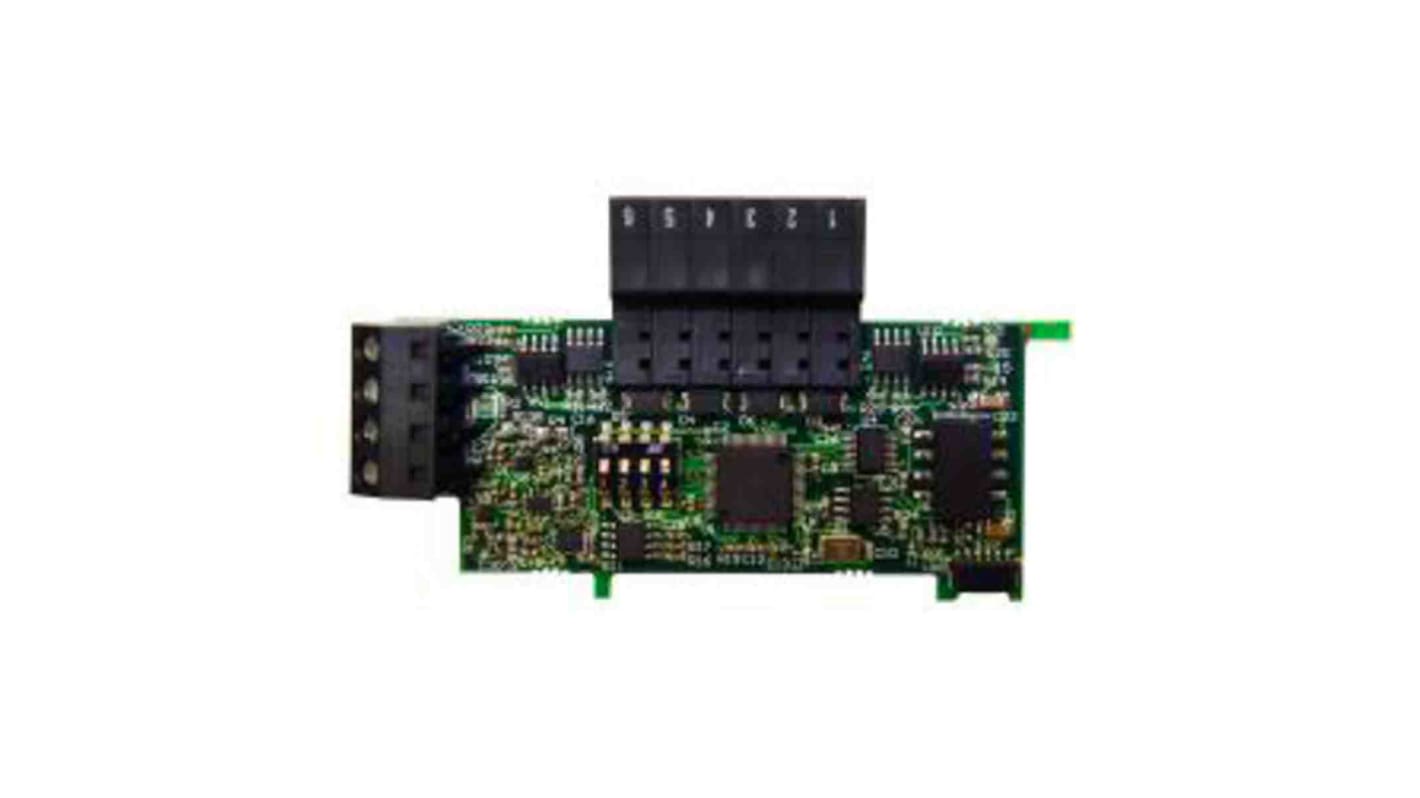

For Use in PAX2 units with FlexBus®option.
Input Ranges: 0 to 10 VDC, 0 to 20 mA DC
A/D Conversion: 16 bit, 6.8 samples/second
Input Specifications:
Input Range: 10 V / 20 mA
Accuracy: 0.1% of span
Input Impedance: 538 KΩ (@ 10 V) / 10 Ω (@ 20 mA)
Max Input Signal: 30 V (@ 10 V)/ 150 mA (@ 20 mA)
Output Specifications: Four Solid-State NFET outputs
Type: Switched DC, N Channel open drain MOSFET
Current Rating: 1 A DC max
VDS ON: < 0.2 V @ 1 A
VDS Max: 30 VDC
Offstate Leakage Current: 0.5 μA max.
Output Power Supply (+Vout): 18 to 25 VDC @ 40 mA maximum
Input Ranges: 0 to 10 VDC, 0 to 20 mA DC
A/D Conversion: 16 bit, 6.8 samples/second
Input Specifications:
Input Range: 10 V / 20 mA
Accuracy: 0.1% of span
Input Impedance: 538 KΩ (@ 10 V) / 10 Ω (@ 20 mA)
Max Input Signal: 30 V (@ 10 V)/ 150 mA (@ 20 mA)
Output Specifications: Four Solid-State NFET outputs
Type: Switched DC, N Channel open drain MOSFET
Current Rating: 1 A DC max
VDS ON: < 0.2 V @ 1 A
VDS Max: 30 VDC
Offstate Leakage Current: 0.5 μA max.
Output Power Supply (+Vout): 18 to 25 VDC @ 40 mA maximum
