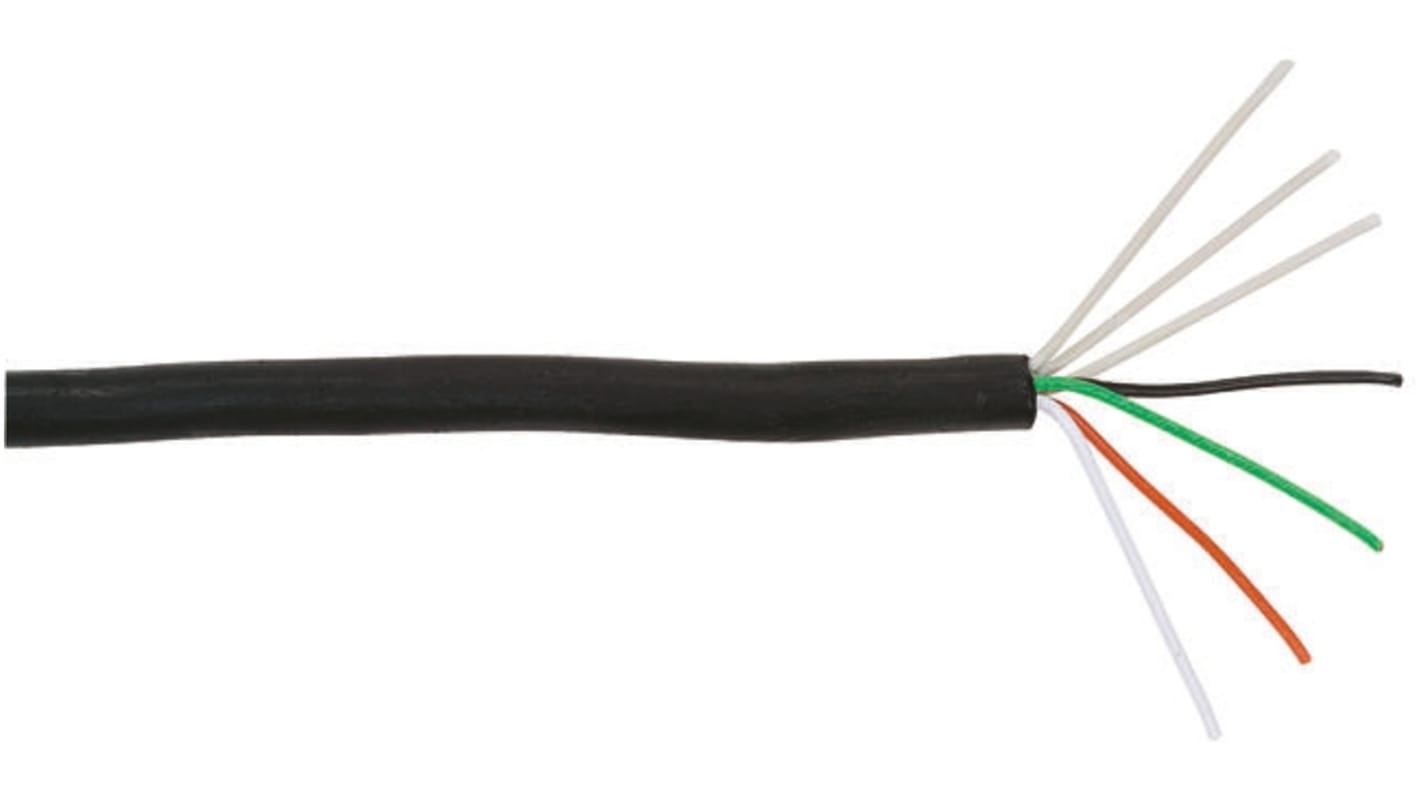

RS PRO 4 Core CW1411 Telephone Cable, 3/0.25 mm, Black Sheath, 350m
- RS Stock No.:
- 411-813
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 411-813
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| BT Specification | CW1411 | |
| Number of Cores | 4 | |
| Outer Sheath Material | PE | |
| Reel Length | 350m | |
| Core Strands | 3/0.25 mm | |
| Conductor Material | Bare Annealed Copper | |
| Number of Pairs | 2 | |
| Sheath Colour | Black | |
| Number of Strands | 3 | |
| Outer Diameter | 5.6mm | |
| Voltage Rating | 300 V | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
BT Specification CW1411 | ||
Number of Cores 4 | ||
Outer Sheath Material PE | ||
Reel Length 350m | ||
Core Strands 3/0.25 mm | ||
Conductor Material Bare Annealed Copper | ||
Number of Pairs 2 | ||
Sheath Colour Black | ||
Number of Strands 3 | ||
Outer Diameter 5.6mm | ||
Voltage Rating 300 V | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CN
External Dropwire Telephone Cable
This cable is designed for overhead distribution lines, typically from a telegraph pole to the customer's premises.
0.5mm plain solid copper pairs insulated with solid polyethylene and wrapped with a polyester tape
3 x brass coated steel support strands insulated with PVC
Sheathed overall with a medium density black polyethylene sheath.
3 x brass coated steel support strands insulated with PVC
Sheathed overall with a medium density black polyethylene sheath.
