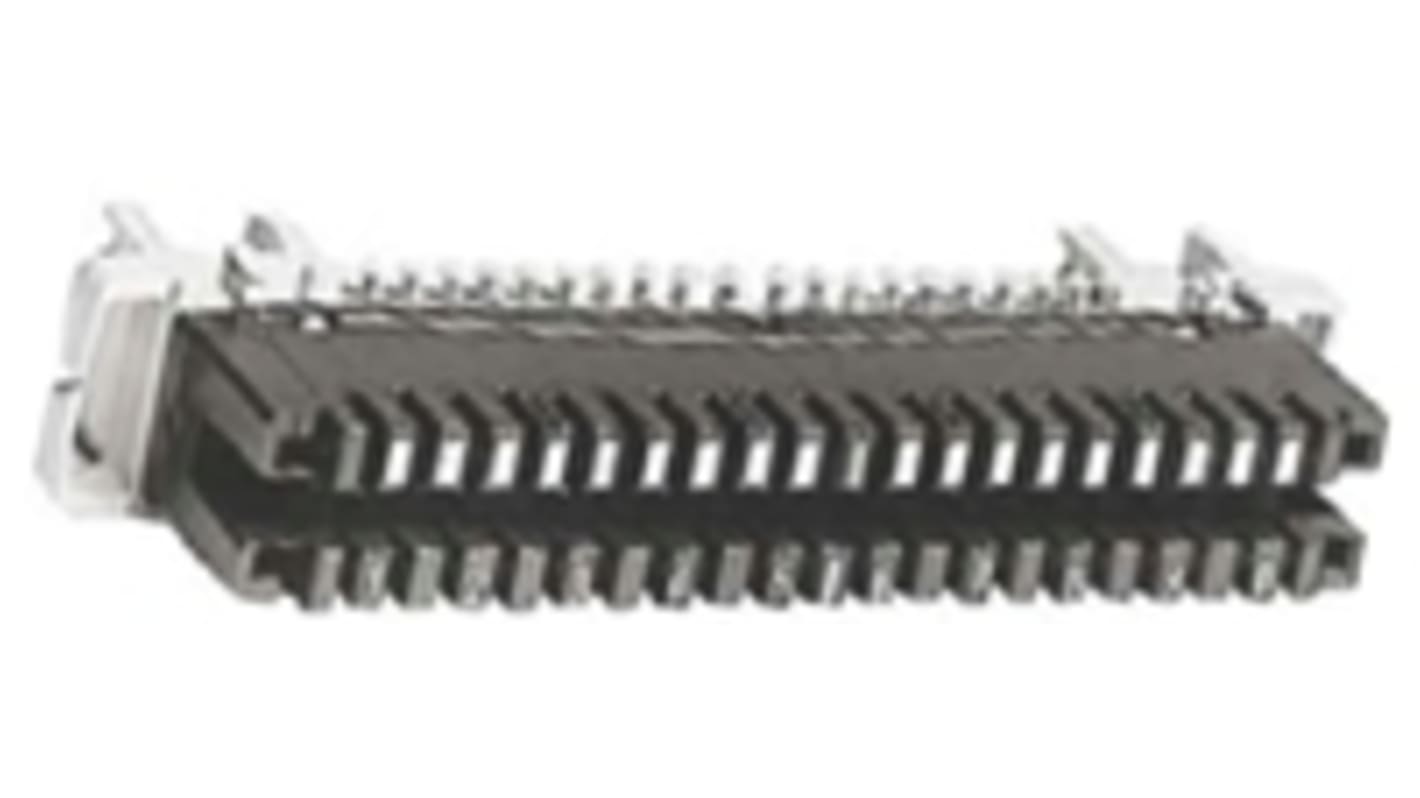

TE Connectivity LSA-Plus and LSA-Profil Connection Modules and Tool
A range of TE Connectivity LSA-Plus and LSA-Profil Connection and Disconnection Modules.
The Insertion and Extraction Tool, stock number 813-5814 , is fitted with a sensor which trims excess cable when a termination has been completed. The conductor diameter range of the LSA+ Insertion Tool is 0.35 to 2.6 mm with an outside diameter range of 0.7 to 2.6 mm. The LSA-Plus Insertion Tool also includes a cutting inhibitor clip, extraction hook and module removal blade.
Special Features:
813-5845 LSA-PLUS disconnection module with 6 off 3 wire shielded pairs 813-5836 LSA-PLUS disconnection module with screw terminals for wires up to 2.5 mm² 813-5848 LSA-PLUS disconnection module has numbering 0 to 9 813-5810 LSA-PROFIL disconnection module has numbering 0 to 9 813-5858 LSA-PROFIL switching module printed jumper side 1...0
Attribute
Value
Connector Type
Telephone/Telecom
Number of Ways
20
Mounting Type
Profile Rod
Termination Method
IDC
Contact Plating
Silver
Contact Material
Brass
Housing Material
PBT
Wire Size
26-20 or 28-20 AWG
Colour
White
Maximum Operating Temperature
+80°C
Minimum Operating Temperature
-20°C
Series
LSA-PROFIL
