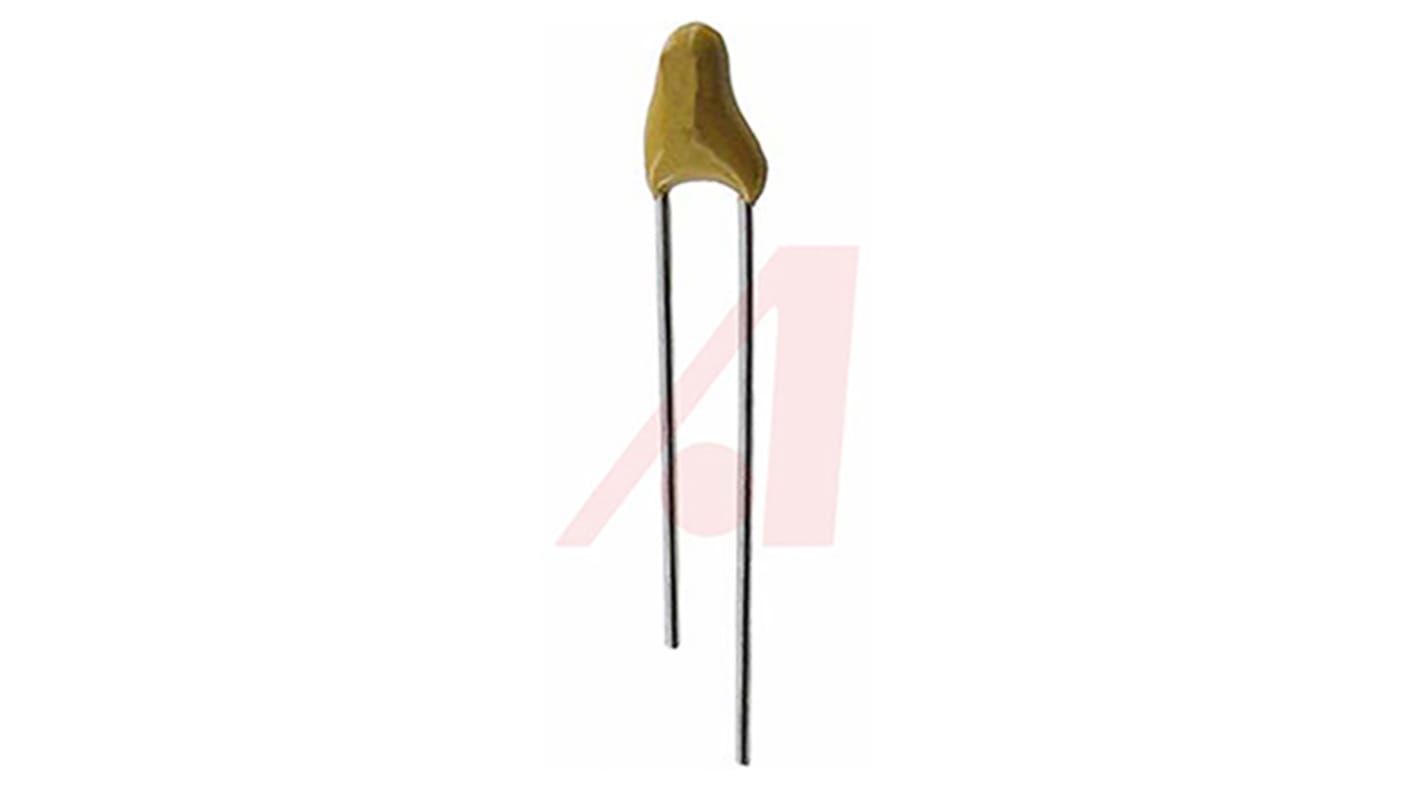

A range of solid tantalum capacitors in various sizes, styles and ratings. Series consists of a resin dipped radial capacitors rated at 85°C (125°C with voltage derating). The 15 case sizes with wide capacitance and working voltage ranges means that the TAP can accommodate almost any application.
Features and Benefits: Manufactured with a flame retardant coating Exceptional temperature stability Low leakage current and impedance
Attribute
Value
Technology
Electrolytic
Capacitance
22µF
Voltage
20V dc
Package/Case
H
Equivalent Series Resistance
1.8Ω
Lead Pitch
2.5mm
Tolerance
±10%
Height
10.5mm
Dimensions
7 (Dia.) x 10.5mm
Series
TAP
Maximum Operating Temperature
+125°C
Electrolyte Type
Solid
Tolerance Minus
-10%
Lead Diameter
0.5mm
Diameter
7mm
Leakage Current
3.5 μA
Tolerance Plus
+10%
Surge Voltage
16 V @ ≤+125 °C, 26 V @ ≤+85 °C
Minimum Operating Temperature
-55°C
Terminal Type
Radial
Dielectric Material Family
Tantalum
Dissipation Factor
8%
