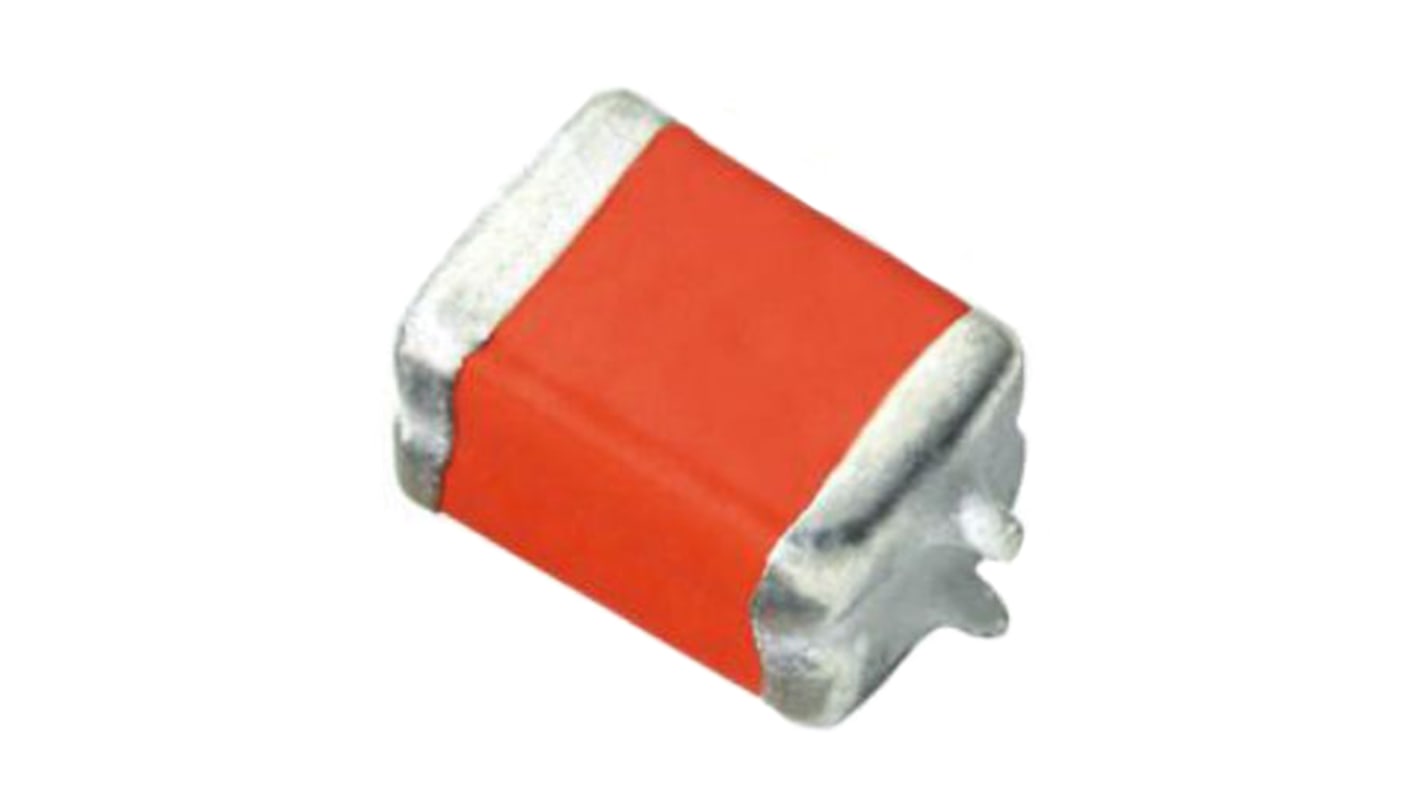

Vishay 10μF MnO2 Tantalum Capacitor 75V dc, 597D Series
- RS Stock No.:
- 871-7315P
- Mfr. Part No.:
- 597D106X9075R2T
- Brand:
- Vishay
Bulk discount available
Subtotal 5 units (supplied on a reel)*. Quantities below 150 on continuous strip
£69.05
(exc. VAT)
£82.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 - 9 | £13.81 |
| 10 - 24 | £13.24 |
| 25 - 49 | £11.94 |
| 50 + | £10.79 |
*price indicative
- RS Stock No.:
- 871-7315P
- Mfr. Part No.:
- 597D106X9075R2T
- Brand:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Technology | MnO2 | |
| Capacitance | 10µF | |
| Voltage | 75V dc | |
| Mounting Type | Surface Mount | |
| Package/Case | R | |
| Equivalent Series Resistance | 500mΩ | |
| Tolerance | ±10% | |
| Length | 7.6mm | |
| Depth | 6mm | |
| Height | 3.6mm | |
| Dimensions | 7.6 x 6 x 3.6mm | |
| Series | 597D | |
| Electrolyte Type | Solid | |
| Maximum Operating Temperature | +125°C | |
| Tolerance Minus | -10% | |
| Dissipation Factor | 6% | |
| Dielectric Material Family | Tantalum | |
| Minimum Operating Temperature | -55°C | |
| Terminal Type | SMT | |
| Surge Voltage | 75V | |
| Leakage Current | 8 μA | |
| Tolerance Plus | +10% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Technology MnO2 | ||
Capacitance 10µF | ||
Voltage 75V dc | ||
Mounting Type Surface Mount | ||
Package/Case R | ||
Equivalent Series Resistance 500mΩ | ||
Tolerance ±10% | ||
Length 7.6mm | ||
Depth 6mm | ||
Height 3.6mm | ||
Dimensions 7.6 x 6 x 3.6mm | ||
Series 597D | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Tolerance Minus -10% | ||
Dissipation Factor 6% | ||
Dielectric Material Family Tantalum | ||
Minimum Operating Temperature -55°C | ||
Terminal Type SMT | ||
Surge Voltage 75V | ||
Leakage Current 8 μA | ||
Tolerance Plus +10% | ||
