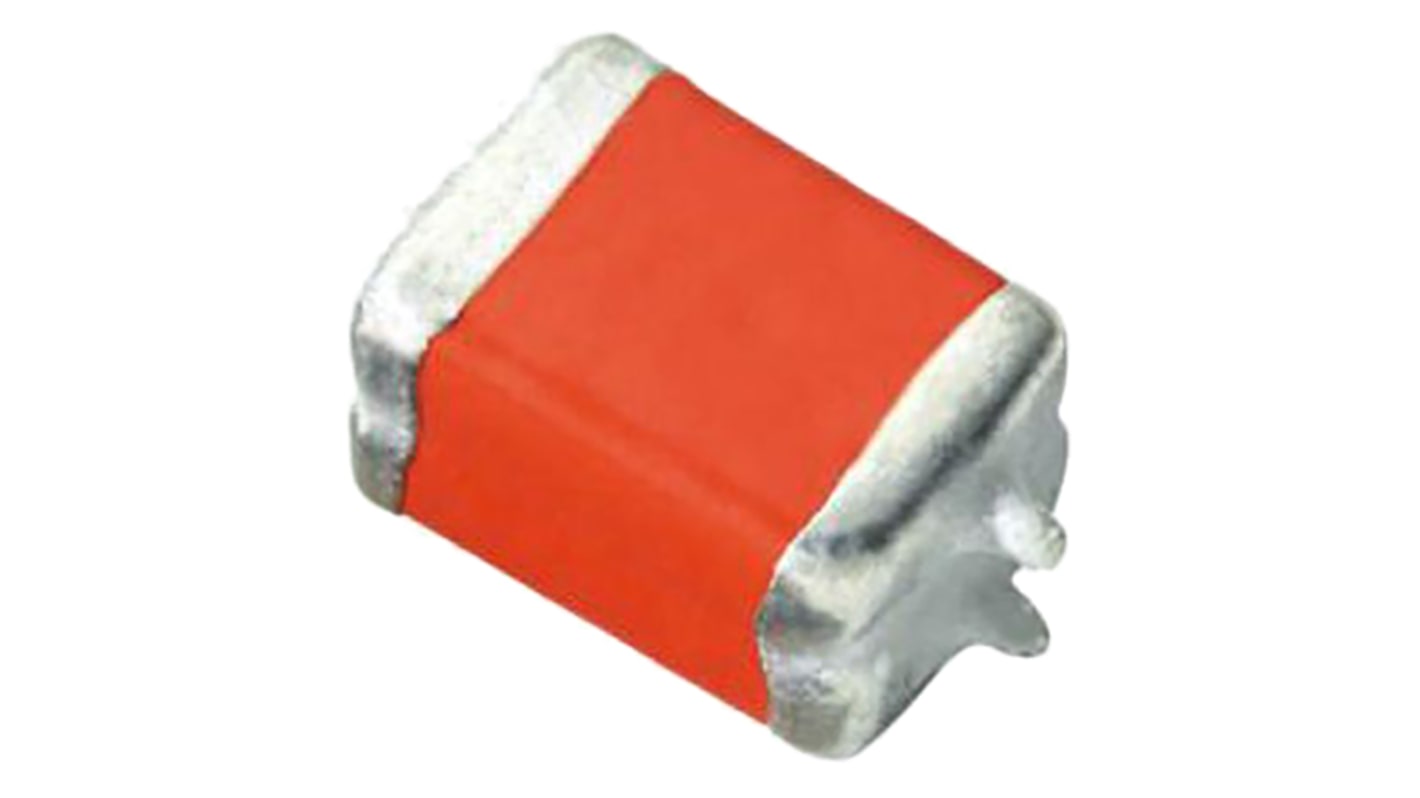

Vishay 22μF MnO2 Tantalum Capacitor 63V dc, 597D Series

View all Tantalum Capacitors
Save 24% when you buy 50 units

Subtotal (1 unit)*

£12.90

(exc. VAT)

£15.48

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 18 left, ready to ship
  • Final 58 unit(s) shipping from 09 October 2025
Units
Per unit
1 - 4£12.90
5 - 9£12.38
10 - 24£11.87
25 - 49£10.71
50 +£9.68

*price indicative

Packaging Options:
RS Stock No.:
684-4806
Mfr. Part No.:
597D226X9063F2T
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Technology

MnO2

Capacitance

22µF

Voltage

63V dc

Mounting Type

Surface Mount

Equivalent Series Resistance

250mΩ

Tolerance

±10%

Length

7.3mm

Depth

6mm

Height

4.7mm

Dimensions

7.3 x 6 x 4.7mm

Series

597D

Electrolyte Type

Solid

Maximum Operating Temperature

+125°C

Terminal Type

Surface Mount

Tolerance Minus

-10%

Dissipation Factor

6%

Leakage Current

14 μA

Tolerance Plus

+10%

Minimum Operating Temperature

-55°C

597D Series


The Vishay 597D solid tantalum capacitors are a low profile Tantamount surface mount chip with a conformal coating. The 597D series is available in a wide range of capacitance values and voltage ratings that offer low ESR and maximum CV. This series is suitable for a wide range of applications.

Features and Benefits


Surface mount
High temperature rating

Applications:


Tantalum capacitors are the preferred choice in applications where volumetric efficiency, stable electrical parameters, high reliability, and long service life are primary considerations.

Filtering and decoupling within DC-to-DC conversion, line cards, mother boards and power supply applications in end product such as test equipment, PC's and base stations.

Note

Anode (+ve) terminal identified by tantalum wire nib
