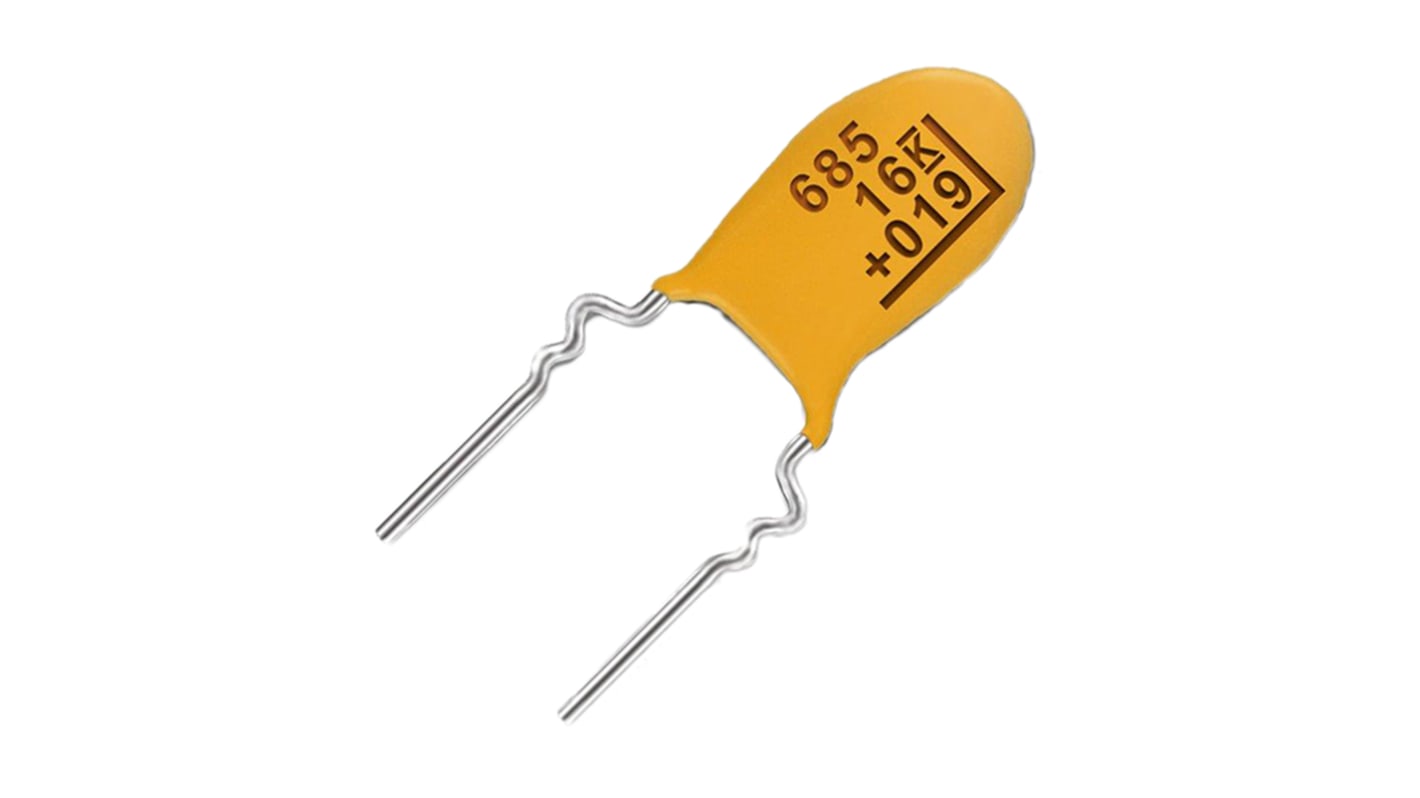

KEMET 10μF MnO2 Tantalum Capacitor 16V dc, T350 Series
- RS Stock No.:
- 538-1922
- Mfr. Part No.:
- T350E106K016AT
- Brand:
- KEMET
Save 26% when you buy 1000 units
Subtotal (1 pack of 5 units)*
£11.35
(exc. VAT)
£13.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 225 unit(s) shipping from 01 October 2025
- Plus 30 unit(s) shipping from 01 October 2025
- Plus 625 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 95 | £2.27 | £11.35 |
100 - 245 | £2.114 | £10.57 |
250 - 495 | £1.974 | £9.87 |
500 - 995 | £1.838 | £9.19 |
1000 + | £1.658 | £8.29 |
*price indicative
- RS Stock No.:
- 538-1922
- Mfr. Part No.:
- T350E106K016AT
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Technology | MnO2 | |
Capacitance | 10µF | |
Voltage | 16V dc | |
Mounting Type | Through Hole | |
Equivalent Series Resistance | 1Ω | |
Lead Pitch | 2.54mm | |
Tolerance | ±10% | |
Height | 8.9mm | |
Dimensions | 5.5 (Dia.) x 8.9mm | |
Series | T350 | |
Electrolyte Type | Solid | |
Maximum Operating Temperature | +125°C | |
Tolerance Plus | +10% | |
Leakage Current | 1.3 μA | |
Dissipation Factor | 6% | |
Lead Diameter | 0.5mm | |
Minimum Operating Temperature | -55°C | |
Diameter | 5.5mm | |
Dielectric Material Family | Tantalum | |
Tolerance Minus | -10% | |
Select all | ||
---|---|---|
Brand KEMET | ||
Technology MnO2 | ||
Capacitance 10µF | ||
Voltage 16V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 1Ω | ||
Lead Pitch 2.54mm | ||
Tolerance ±10% | ||
Height 8.9mm | ||
Dimensions 5.5 (Dia.) x 8.9mm | ||
Series T350 | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Tolerance Plus +10% | ||
Leakage Current 1.3 μA | ||
Dissipation Factor 6% | ||
Lead Diameter 0.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5.5mm | ||
Dielectric Material Family Tantalum | ||
Tolerance Minus -10% | ||
- COO (Country of Origin):
- MX
T350 Series
KEMET T350 Tantalum dipped radial capacitors offer low leakage and low DF performance characteristics for filtering, bypassing, coupling, blocking and RC timing circuits. The T350 series is part of the KEMET UltraDip II range capacitors that offer the widely recognised advantages inherent in solid tantalum capacitors. This series features a capacitance range from 0.1 μF to 680 μF at voltages from 3 V dc to 50 V dc.
Features and Benefits:
Low leakage current
Low DF performance characteristics for filtering, bypassing, coupling, blocking and RC timing circuits.
Polarised leads
Self-insulating cases which are resistant to shock and vibration
Low DCL, ESR and Impedance and have excellent temperature stability
Low leakage current
Low DF performance characteristics for filtering, bypassing, coupling, blocking and RC timing circuits.
Polarised leads
Self-insulating cases which are resistant to shock and vibration
Low DCL, ESR and Impedance and have excellent temperature stability
