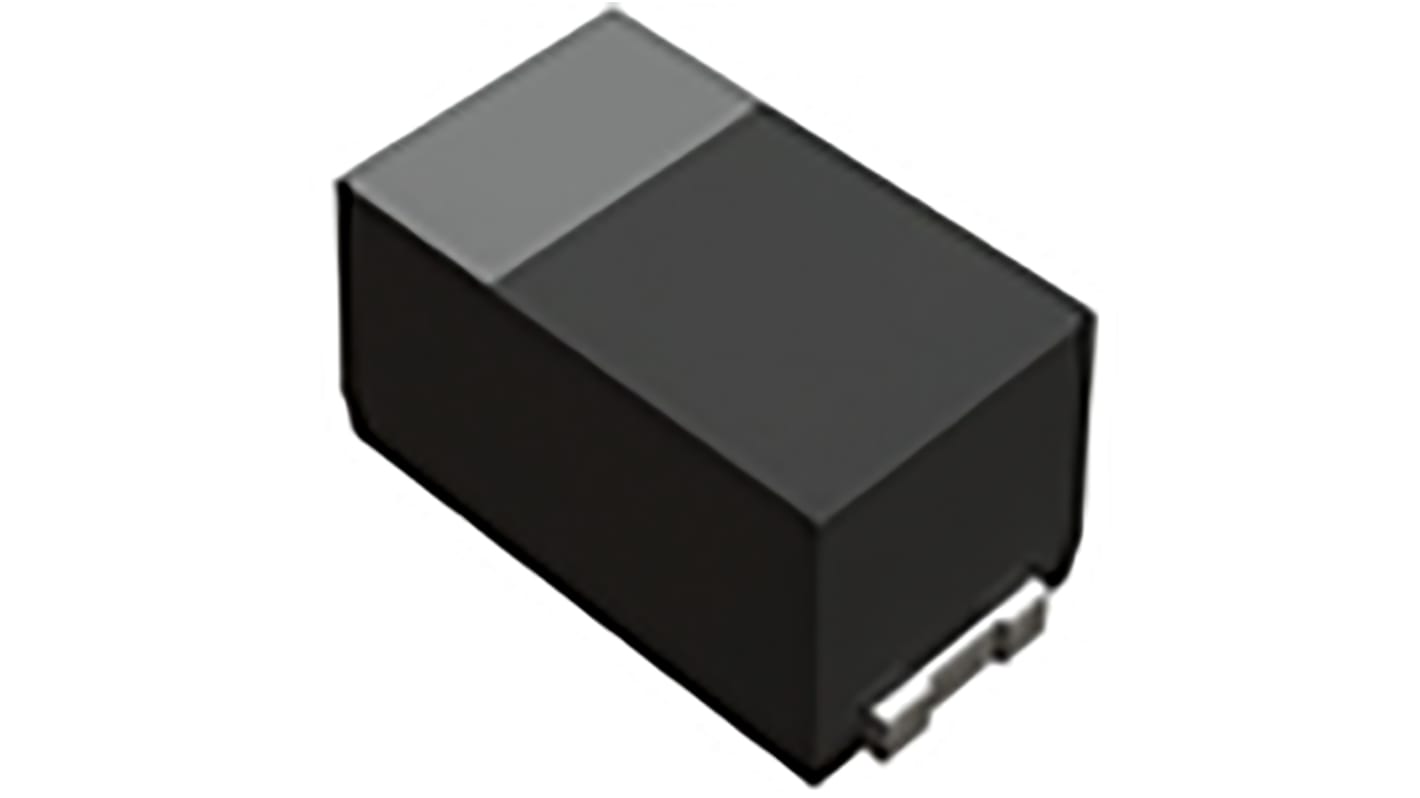

ROHM 1μF Tantalum Capacitor 25V dc, TC Series
- RS Stock No.:
- 184-7877
- Mfr. Part No.:
- TCM1E105M8R
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 184-7877
- Mfr. Part No.:
- TCM1E105M8R
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Technology | Tantalum | |
Capacitance | 1µF | |
Voltage | 25V dc | |
Mounting Type | Surface Mount | |
Package/Case | 0603 (1608M) | |
Equivalent Series Resistance | 10Ω | |
Tolerance | ±20% | |
Length | 1.6mm | |
Depth | 0.85mm | |
Height | 0.8mm | |
Dimensions | 1.6 x 0.85 x 0.8mm | |
Series | TC | |
Maximum Operating Temperature | +125°C | |
Leakage Current | 500 nA | |
Tolerance Plus | 20% | |
Minimum Operating Temperature | -55°C | |
Dielectric Material Family | Tantalum | |
Polarised | Polar | |
Tolerance Minus | -20% | |
Terminal Type | Solder | |
Dissipation Factor | 10% | |
Select all | ||
---|---|---|
Brand ROHM | ||
Technology Tantalum | ||
Capacitance 1µF | ||
Voltage 25V dc | ||
Mounting Type Surface Mount | ||
Package/Case 0603 (1608M) | ||
Equivalent Series Resistance 10Ω | ||
Tolerance ±20% | ||
Length 1.6mm | ||
Depth 0.85mm | ||
Height 0.8mm | ||
Dimensions 1.6 x 0.85 x 0.8mm | ||
Series TC | ||
Maximum Operating Temperature +125°C | ||
Leakage Current 500 nA | ||
Tolerance Plus 20% | ||
Minimum Operating Temperature -55°C | ||
Dielectric Material Family Tantalum | ||
Polarised Polar | ||
Tolerance Minus -20% | ||
Terminal Type Solder | ||
Dissipation Factor 10% | ||
- COO (Country of Origin):
- JP
By employing the bottom electrode structure, ROHM's chip tantalum capacitors (TCT series) are featured with large capacitance and low profile.
Small and low profile
Large Capacitance
Low ESR
Large Capacitance
Low ESR
