RS PRO 2.2 μF Electrolytic Tantalum Electrolytic Capacitor 35V dc, Through Hole, CB Series

RS Stock No.:: 181-4777
Brand:: RS PRO

RS PRO 2.2 μF Electrolytic Tantalum Electrolytic Capacitor 35V dc, Through Hole, CB Series

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 25 units)*

£6.925

(exc. VAT)

£8.30

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

375 unit(s) ready to ship
Plus 125 unit(s) ready to ship from another location
Plus 1,125 unit(s) shipping from 17 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
25 - 75	£0.277	£6.93
100 - 225	£0.205	£5.13
250 - 475	£0.185	£4.63
500 +	£0.183	£4.58

*price indicative

RS Stock No.:: 181-4777
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Technology	Electrolytic
	Product Type	Tantalum Electrolytic Capacitor
	Capacitance	2.2μF
	Voltage	35V dc
	Mount Type	Through Hole
	Package/Case	B
	Polarity	Positive
	Automotive Standard	No
	Tolerance ±	-20%
	Pin Count	2
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	125°C
	Depth	5mm
	Height	8mm
	Standards/Approvals	RoHS
	Series	CB
	Length	5mm
	Electrolyte Type	Solid
	Surge Voltage	46V
	Leakage Current	500nA
	Dissipation Factor	0.06%

	Select all
	Brand RS PRO
	Technology Electrolytic
	Product Type Tantalum Electrolytic Capacitor
	Capacitance 2.2μF
	Voltage 35V dc
	Mount Type Through Hole
	Package/Case B
	Polarity Positive
	Automotive Standard No
	Tolerance ± -20%
	Pin Count 2
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 125°C
	Depth 5mm
	Height 8mm
	Standards/Approvals RoHS
	Series CB
	Length 5mm
	Electrolyte Type Solid
	Surge Voltage 46V
	Leakage Current 500nA
	Dissipation Factor 0.06%

COO (Country of Origin):: CN

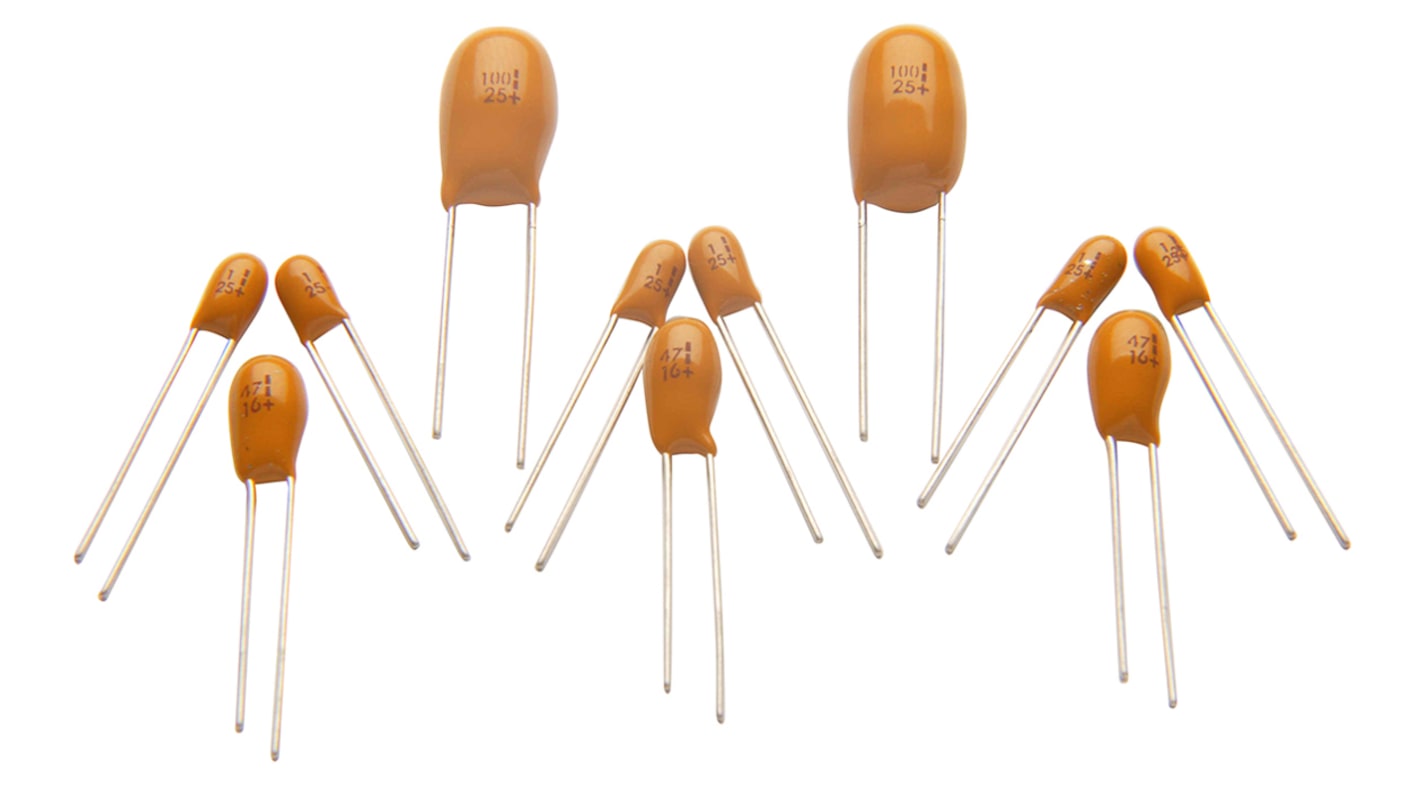

RS PRO Tantalum Capacitor

The RS PRO CB series 2.2uf epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 35VDC and a leakage current of 500nA. It has dimensions of 5mm x 5mm x 8mm x 0.5mm (L x D x H x lead diameter).

Features and Benefits

• Tolerance: ±20%

• Operating temperature ranges between -55°C and 125°C

• Life of 1000 Hours

• Lead pitch: 2.5mm

• Dissipation factor: Less than 0.06%

• Through hole mount

• Package/case: B

• Positive polarised

Applications

• Electronics industry

Certifications

• ANSI/ESD S20.20: 2014

• BS EN 61340-5-1: 2007
