RS PRO 3.3μF Electrolytic Tantalum Electrolytic Capacitor 16V dc
- RS Stock No.:
- 181-4727
- Brand:
- RS PRO
Available to back order for despatch 29/10/2024
Added
Price Each (In a Pack of 50)
£0.194
(exc. VAT)
£0.233
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 200 | £0.194 | £9.70 |
| 250 - 450 | £0.188 | £9.40 |
| 500 - 950 | £0.172 | £8.60 |
| 1000 - 2450 | £0.154 | £7.70 |
| 2500 + | £0.12 | £6.00 |
| *price indicative | ||
- RS Stock No.:
- 181-4727
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

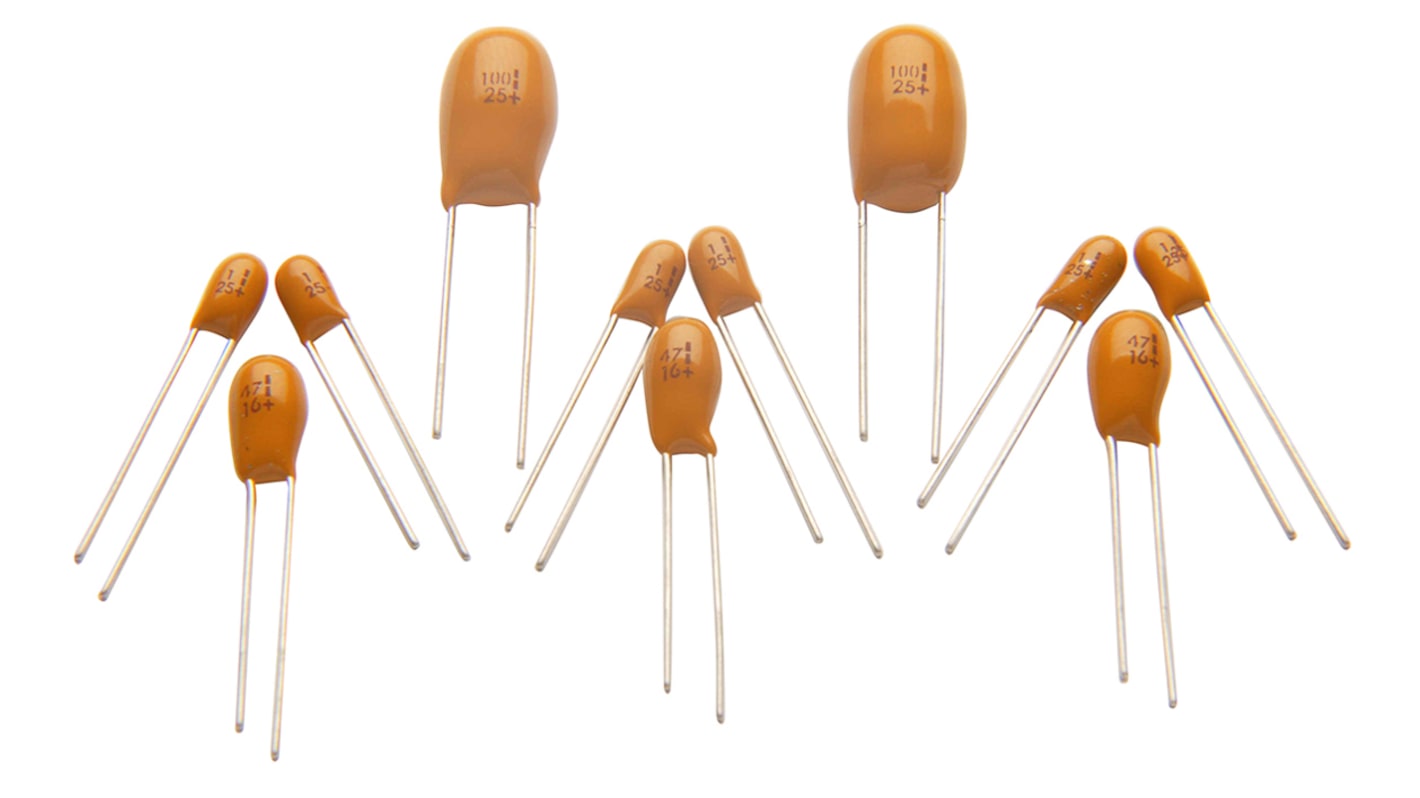

RS Pros is increasing its range of Passive components with the introduction of a range of Leaded Radial Epoxy Coated Solid Electrolytic Tantalum Capacitors.
1. Available in a range from 0.1uF to 220uF
2. In Voltage range of 6.3V, 10V, 16V, 25V, 35V, 50V
3. Tolerance 20%
4. Temperature Range -55’C to +125’C
5. Lifetest 1000hr
6. Rohs Compliant
1. Available in a range from 0.1uF to 220uF
2. In Voltage range of 6.3V, 10V, 16V, 25V, 35V, 50V
3. Tolerance 20%
4. Temperature Range -55’C to +125’C
5. Lifetest 1000hr
6. Rohs Compliant
Specifications
Attribute | Value |
|---|---|
| Technology | Electrolytic |
| Capacitance | 3.3µF |
| Voltage | 16V dc |
| Mounting Type | Through Hole |
| Package/Case | A |
| Lead Pitch | 2.5mm |
| Tolerance | ±20% |
| Length | 4.5mm |
| Depth | 4.5mm |
| Height | 7mm |
| Dimensions | 4.5 x 4.5 x 7mm |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | +20% |
| Polarised | Positive |
| Leakage Current | 500 nA |
| Lead Diameter | 0.5mm |
| Dielectric Material Family | Tantalum |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | <lteq/>0.06% |
| Tolerance Minus | -20% |
