RS PRO 3.3μF Electrolytic Tantalum Electrolytic Capacitor 50V dc
- RS Stock No.:
- 181-4611
- Brand:
- RS PRO
Available to back order for despatch 31/10/2024
Added
Price Each (In a Bag of 500)
£0.56
(exc. VAT)
£0.67
(inc. VAT)
| Units | Per unit | Per Bag* |
| 500 - 1000 | £0.56 | £280.00 |
| 1500 + | £0.518 | £259.00 |
| *price indicative | ||
- RS Stock No.:
- 181-4611
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

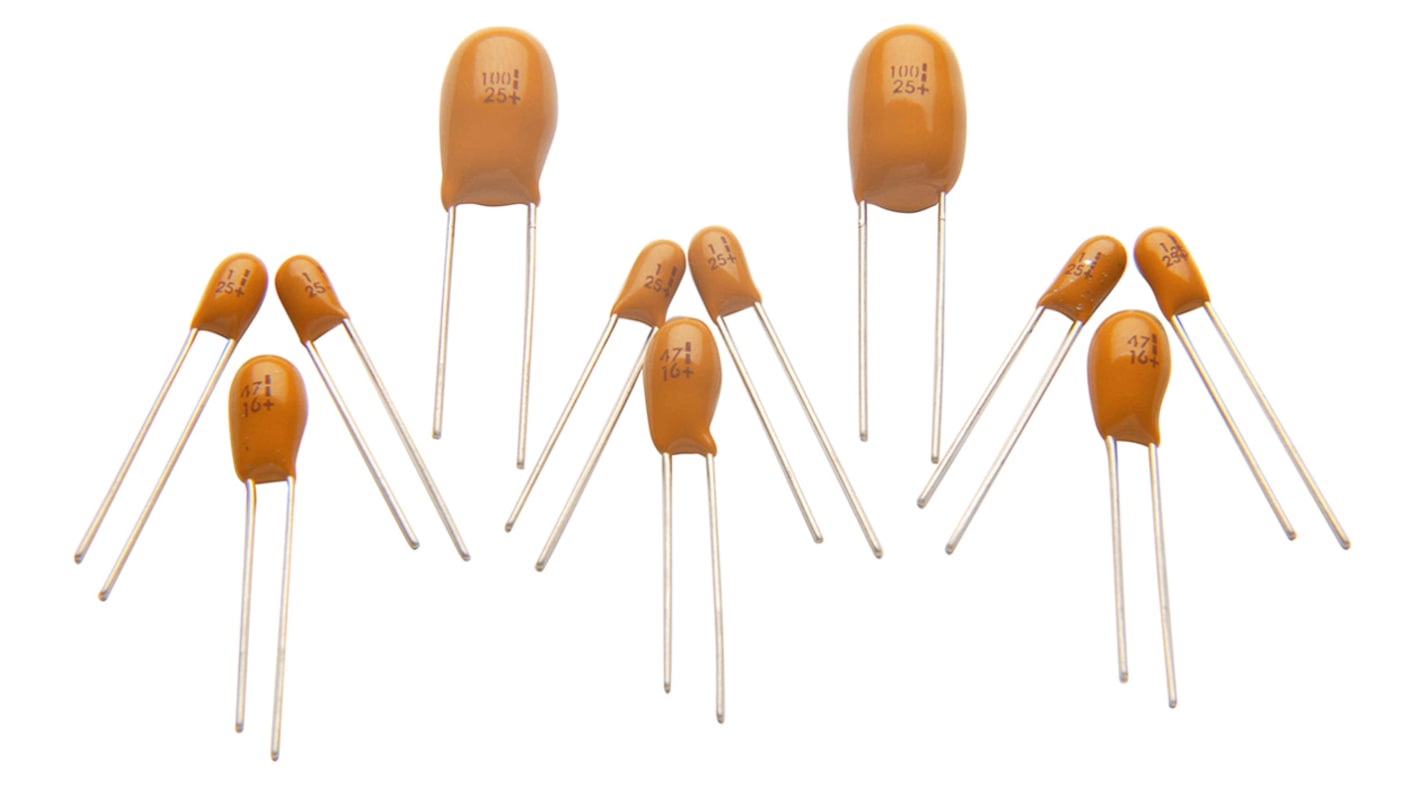

RS PRO Tantalum Capacitor
The RS PRO CB series 3.3uF epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 50VDC and a leakage current of 500nA. It has dimensions of 6.5mm x 6.5mm x 11mm x 0.5mm (L x D x H x lead diameter).
Features and Benefits
• Tolerance: ±20%
• Operating temperature ranges between -55°C and +125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: D
• Positive polarized
• Operating temperature ranges between -55°C and +125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: D
• Positive polarized
Applications
• Electronics industry
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
Specifications
Attribute | Value |
|---|---|
| Technology | Electrolytic |
| Capacitance | 3.3µF |
| Voltage | 50V dc |
| Mounting Type | Through Hole |
| Package/Case | D |
| Lead Pitch | 2.5mm |
| Tolerance | ±20% |
| Length | 6.5mm |
| Depth | 6.5mm |
| Height | 11mm |
| Dimensions | 6.5 x 6.5 x 11mm |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | <lteq/>0.06% |
| Dielectric Material Family | Tantalum |
| Tolerance Plus | +20% |
| Tolerance Minus | -20% |
| Polarised | Positive |
| Lead Diameter | 0.5mm |
| Leakage Current | 500 nA |
| Minimum Operating Temperature | -55°C |
