RS PRO 150 nF Electrolytic Tantalum Electrolytic Capacitor 35V dc, Through Hole, CB Series
- RS Stock No.:
- 181-4584
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 1000 units)*
£156.00
(exc. VAT)
£187.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 - 2000 | £0.156 | £156.00 |
| 3000 + | £0.145 | £145.00 |
*price indicative
- RS Stock No.:
- 181-4584
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Technology | Electrolytic | |
| Product Type | Tantalum Electrolytic Capacitor | |
| Capacitance | 150nF | |
| Voltage | 35V dc | |
| Mount Type | Through Hole | |
| Polarity | Positive | |
| Automotive Standard | No | |
| Lead Pitch | 2.5mm | |
| Tolerance | ±20 % | |
| Lead Style | Straight | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Diameter | 5mm | |
| Depth | 4.5mm | |
| Standards/Approvals | RoHS | |
| Series | CB | |
| Height | 7mm | |
| Length | 4.5mm | |
| Electrolyte Type | Solid | |
| Leakage Current | 500nA | |
| Dissipation Factor | 0.04% | |
| Lead Diameter | 0.5mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Technology Electrolytic | ||
Product Type Tantalum Electrolytic Capacitor | ||
Capacitance 150nF | ||
Voltage 35V dc | ||
Mount Type Through Hole | ||
Polarity Positive | ||
Automotive Standard No | ||
Lead Pitch 2.5mm | ||
Tolerance ±20 % | ||
Lead Style Straight | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Diameter 5mm | ||
Depth 4.5mm | ||
Standards/Approvals RoHS | ||
Series CB | ||
Height 7mm | ||
Length 4.5mm | ||
Electrolyte Type Solid | ||
Leakage Current 500nA | ||
Dissipation Factor 0.04% | ||
Lead Diameter 0.5mm | ||
- COO (Country of Origin):
- CN

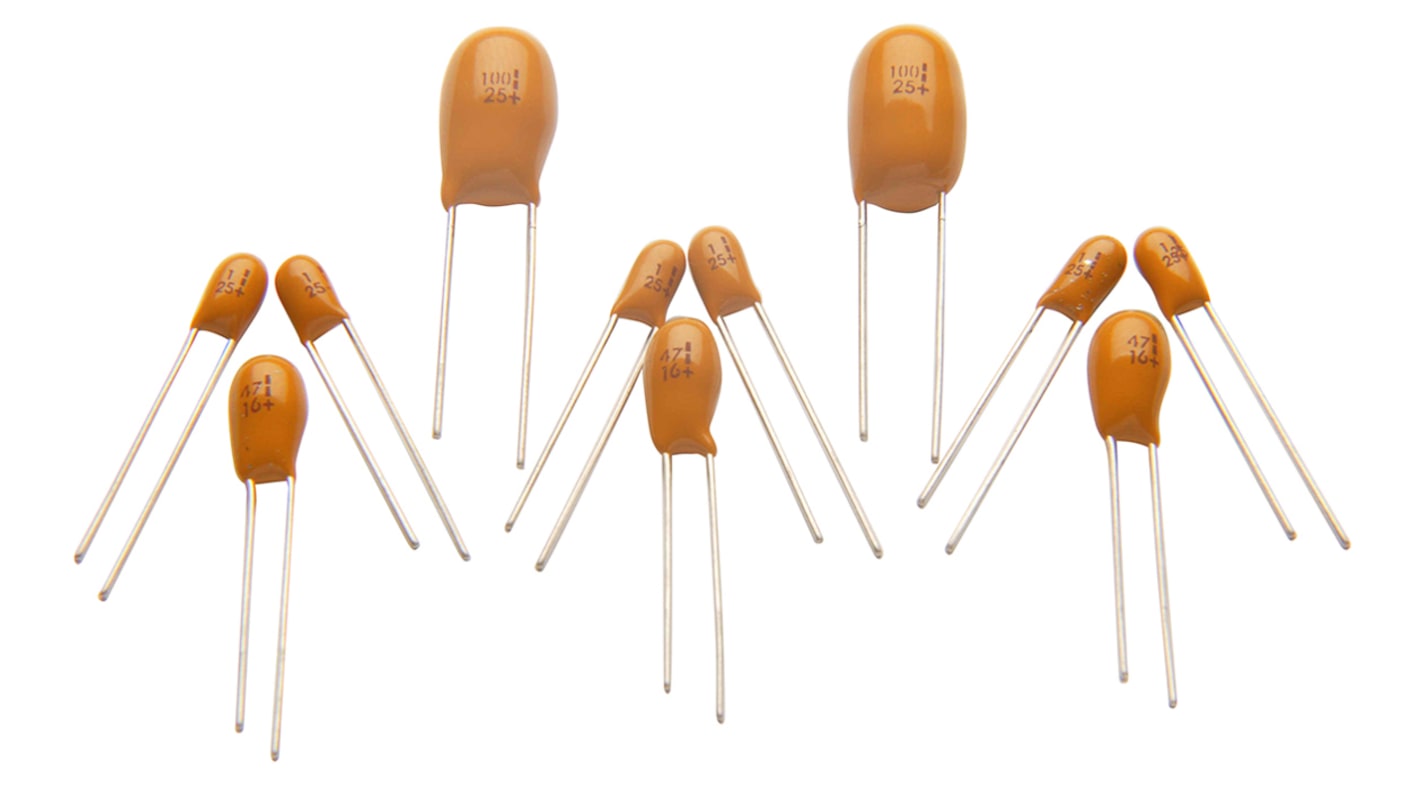

RS PRO Tantalum Capacitor
The RS PRO CB series 0.2uf epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 35VDC and a leakage current of 500nA. It has dimensions of 4.5mm x 4.5mm x 7mmx 0.5mm (L x D x H x lead diameter).
Features and Benefits
• Tolerance: ±20%
• Operating temperature ranges between -55°C and 125°C
• Life of 1000 Hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.04%
• Through hole mount
• Package/case: A
Applications
• Electronics industry
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
