Vishay 10μF Tantalum Capacitor 10V dc, 293D Series
- RS Stock No.:
- 179-7516P
- Mfr. Part No.:
- 293D106X9010A2TE3
- Brand:
- Vishay
Bulk discount available
Subtotal 250 units (supplied on a reel)*
£29.50
(exc. VAT)
£35.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6,225 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 250 - 600 | £0.118 |
| 625 - 1225 | £0.101 |
| 1250 - 2475 | £0.092 |
| 2500 + | £0.086 |
*price indicative
- RS Stock No.:
- 179-7516P
- Mfr. Part No.:
- 293D106X9010A2TE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Technology | Tantalum | |
| Capacitance | 10µF | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Package/Case | 3216-18 | |
| Equivalent Series Resistance | 3.4Ω | |
| Automotive Standard | AEC-Q200 | |
| Tolerance | ±10% | |
| Length | 3.2mm | |
| Depth | 1.6mm | |
| Height | 1.6mm | |
| Dimensions | 3.2 x 1.6 x 1.6mm | |
| Series | 293D | |
| Maximum Operating Temperature | +125°C | |
| Electrolyte Type | Solid | |
| Minimum Operating Temperature | -55°C | |
| Tolerance Minus | -10% | |
| Polarised | Polar | |
| Leakage Current | 500 nA | |
| Tolerance Plus | +10% | |
| Terminal Type | Solder | |
| Dissipation Factor | 6% | |
| Dielectric Material Family | Tantalum | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Technology Tantalum | ||
Capacitance 10µF | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Package/Case 3216-18 | ||
Equivalent Series Resistance 3.4Ω | ||
Automotive Standard AEC-Q200 | ||
Tolerance ±10% | ||
Length 3.2mm | ||
Depth 1.6mm | ||
Height 1.6mm | ||
Dimensions 3.2 x 1.6 x 1.6mm | ||
Series 293D | ||
Maximum Operating Temperature +125°C | ||
Electrolyte Type Solid | ||
Minimum Operating Temperature -55°C | ||
Tolerance Minus -10% | ||
Polarised Polar | ||
Leakage Current 500 nA | ||
Tolerance Plus +10% | ||
Terminal Type Solder | ||
Dissipation Factor 6% | ||
Dielectric Material Family Tantalum | ||
- COO (Country of Origin):
- CN

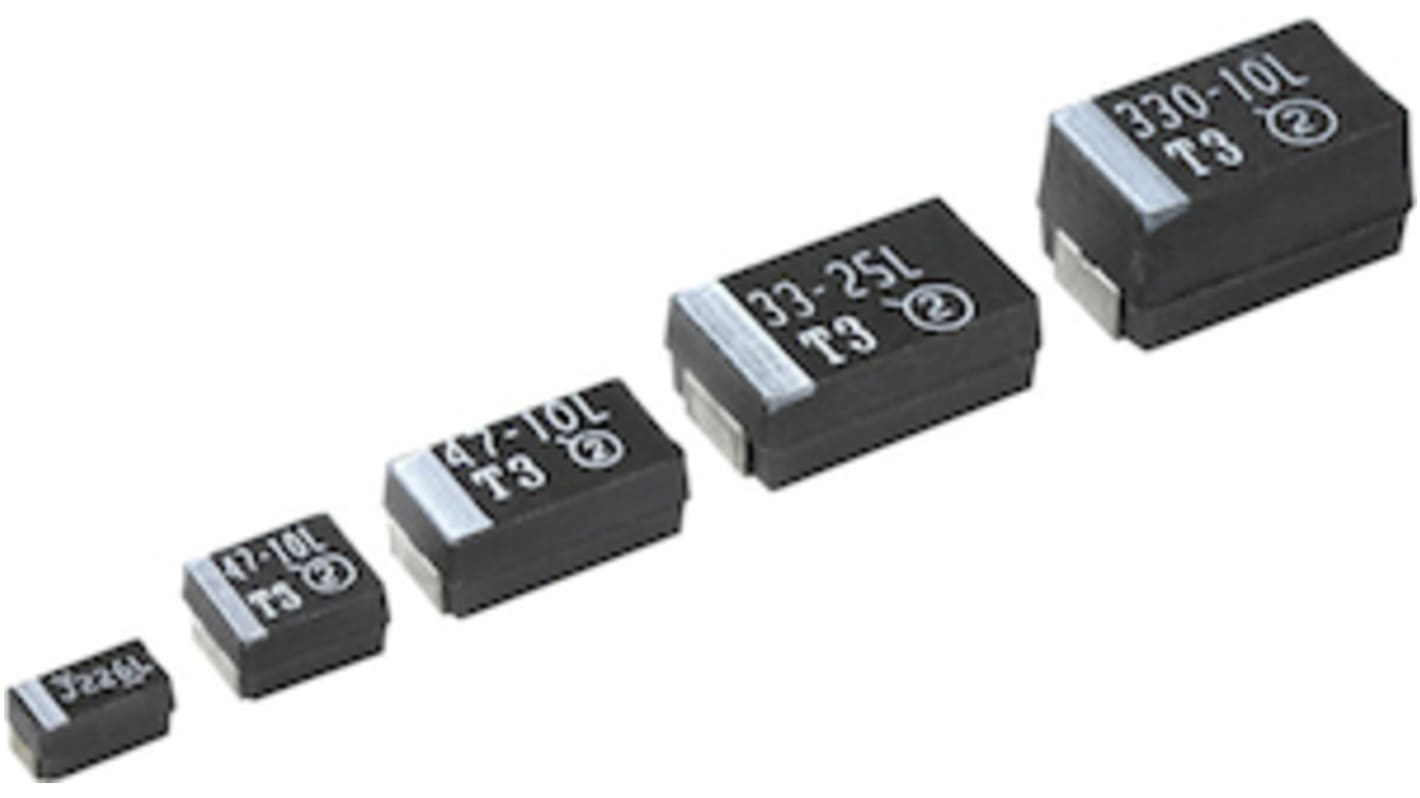

Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Standard Industrial Grade
FEATURES
Molded case available in six case codes
Terminations: 100 % matte tin standard, tin / lead available
Compatible with “high volume” automatic pick and place equipment
APPLICATIONS
Industrial
Telecom infrastructure
General purpose
Molded case available in six case codes
Terminations: 100 % matte tin standard, tin / lead available
Compatible with “high volume” automatic pick and place equipment
APPLICATIONS
Industrial
Telecom infrastructure
General purpose
