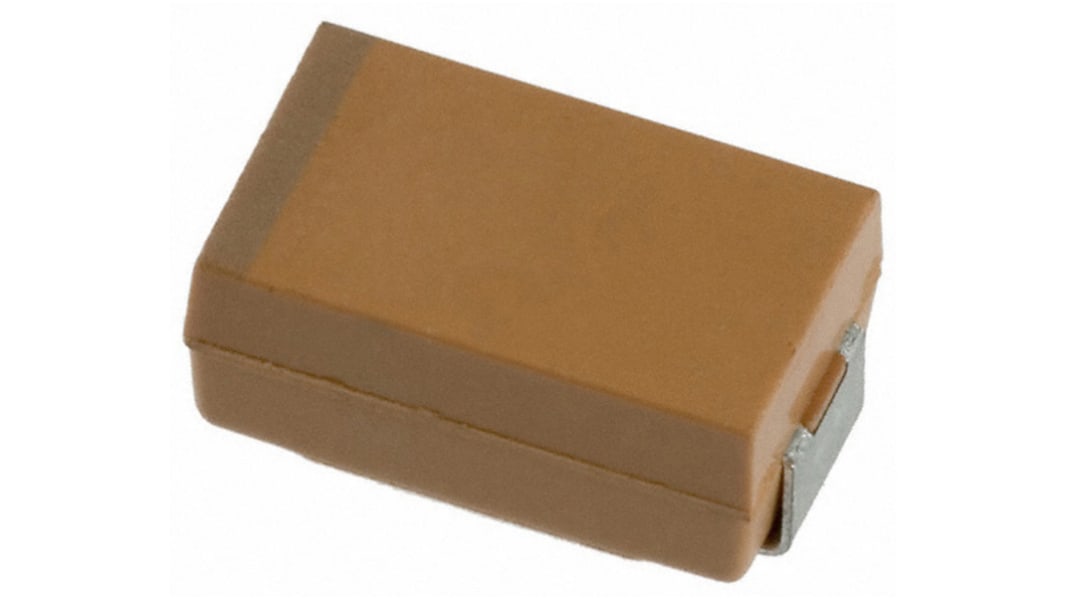

KYOCERA AVX 15μF Tantalum Capacitor 50V dc, TAJ Series
- RS Stock No.:
- 136-4598
- Mfr. Part No.:
- TAJD156K050RNJ
- Brand:
- KYOCERA AVX
Subtotal (1 bag of 2 units)*
£4.27
(exc. VAT)
£5.124
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 396 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 712 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 + | £2.135 | £4.27 |
*price indicative
- RS Stock No.:
- 136-4598
- Mfr. Part No.:
- TAJD156K050RNJ
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Technology | Tantalum | |
| Capacitance | 15µF | |
| Voltage | 50V dc | |
| Mounting Type | Surface Mount | |
| Package/Case | 7343-31 | |
| Equivalent Series Resistance | 600mΩ | |
| Lead Pitch | 4.4mm | |
| Automotive Standard | AEC-Q200 | |
| Tolerance | ±10% | |
| Length | 7.3mm | |
| Depth | 4.3mm | |
| Height | 2.9mm | |
| Dimensions | 7.3 x 4.3 x 2.9mm | |
| Series | TAJ | |
| Electrolyte Type | Solid | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | SMT | |
| Dissipation Factor | 6% | |
| Polarised | Polar | |
| Dielectric Material Family | Tantalum | |
| Tolerance Plus | +10% | |
| Surge Voltage | 65V | |
| Leakage Current | 7.5 μA | |
| Tolerance Minus | -10% | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Technology Tantalum | ||
Capacitance 15µF | ||
Voltage 50V dc | ||
Mounting Type Surface Mount | ||
Package/Case 7343-31 | ||
Equivalent Series Resistance 600mΩ | ||
Lead Pitch 4.4mm | ||
Automotive Standard AEC-Q200 | ||
Tolerance ±10% | ||
Length 7.3mm | ||
Depth 4.3mm | ||
Height 2.9mm | ||
Dimensions 7.3 x 4.3 x 2.9mm | ||
Series TAJ | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Terminal Type SMT | ||
Dissipation Factor 6% | ||
Polarised Polar | ||
Dielectric Material Family Tantalum | ||
Tolerance Plus +10% | ||
Surge Voltage 65V | ||
Leakage Current 7.5 μA | ||
Tolerance Minus -10% | ||
Minimum Operating Temperature -55°C | ||
TAJ Standard Series 20 to 50Vdc
TAJ Series are General Purpose SMT Chip Tantalum Capacitors
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
