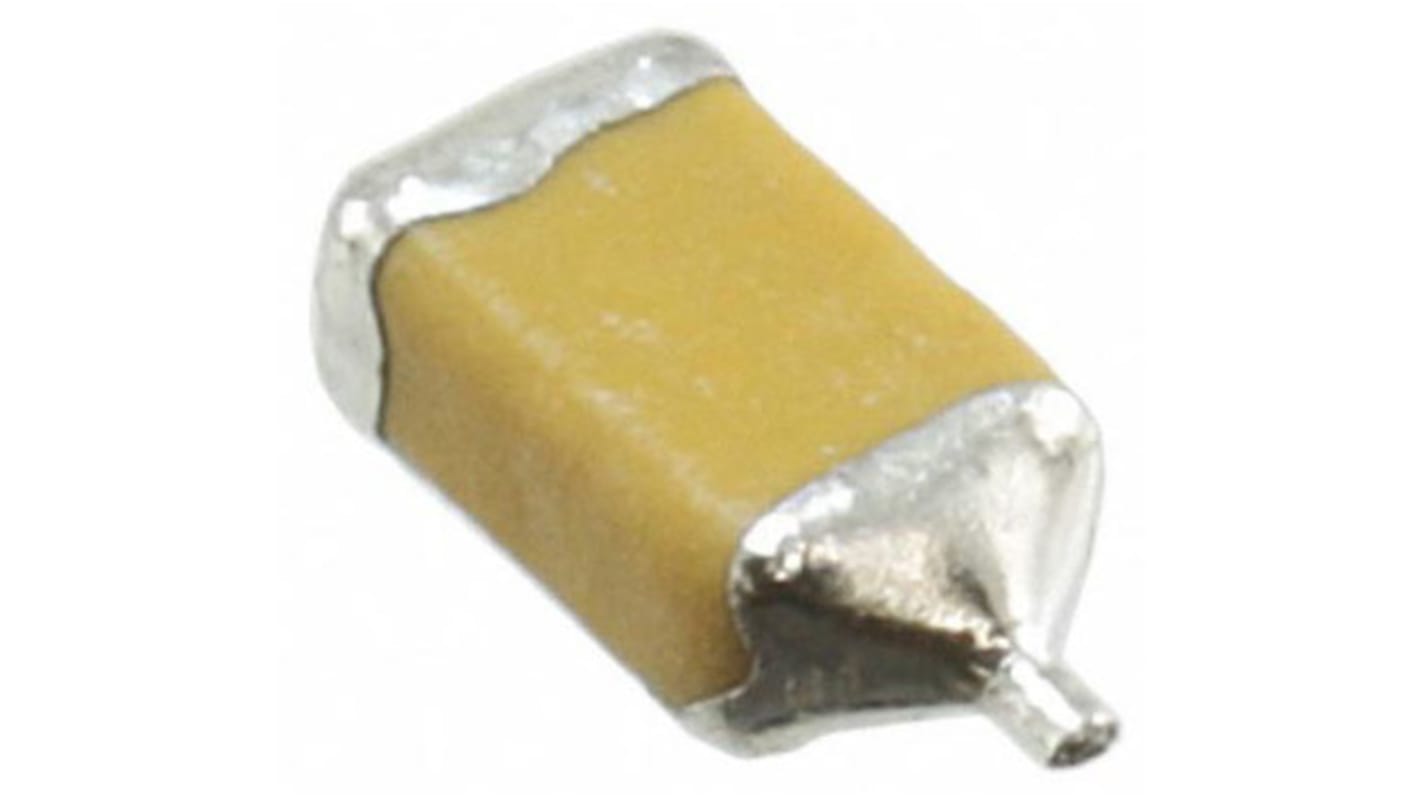

KYOCERA AVX 100μF Electrolytic Tantalum Capacitor 6.3V dc, F95 Series

View all Tantalum Capacitors

Subtotal (1 reel of 3000 units)*

£1,665.00

(exc. VAT)

£1,998.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.555£1,665.00

*price indicative

RS Stock No.:
136-1244
Mfr. Part No.:
F950J107MPAAQ2
Brand:
KYOCERA AVX
Find similar products by selecting one or more attributes.
Select all

Brand

KYOCERA AVX

Technology

Electrolytic

Capacitance

100µF

Voltage

6.3V dc

Mounting Type

Surface Mount

Package/Case

0905

Equivalent Series Resistance

1.2Ω

Length

2.2mm

Height

1mm

Dimensions

2.2 x 1.25 x 1mm

Series

F95

Maximum Operating Temperature

+125°C

Electrolyte Type

Solid

Terminal Type

SMD

Polarised

Polar

Dissipation Factor

35%

Dielectric Material Family

Tantalum

Minimum Operating Temperature

-55°C

Leakage Current

12.6 μA

Tantalum Capacitor, F95 Series (Resin Coated Chip)


Capacitance tolerance: ±20%
Operating temperature range: -55 to +125°C (rated temperature: +85°C)
Leakage current: less than 0.01 CV or 0.5 μA, whichever is the greater (20°C, 1 minute value), less than 0.1 CV or 5 μA, whichever is the greater (85°C, 1 minute value), less than 0.125 CV or 6.3 μA, whichever is the greater (125°C, 1 minute value)
