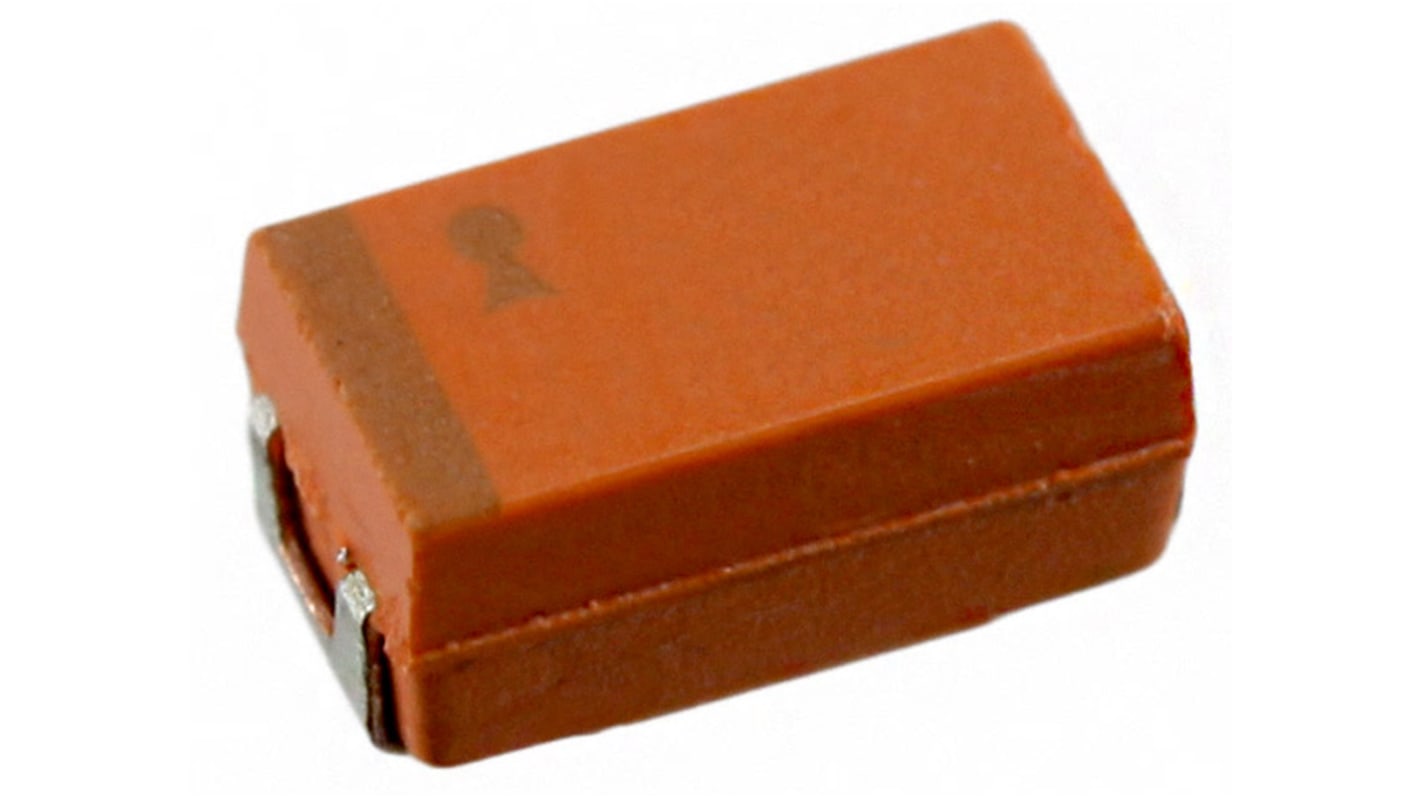

KYOCERA AVX 22 μF Tantalum Tantalum Capacitor 20V dc, Surface, TAJ Series
- RS Stock No.:
- 136-0284
- Mfr. Part No.:
- TAJC226M020RNJ
- Brand:
- KYOCERA AVX
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 136-0284
- Mfr. Part No.:
- TAJC226M020RNJ
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Technology | Tantalum | |
| Product Type | Tantalum Capacitor | |
| Capacitance | 22μF | |
| Voltage | 20V dc | |
| Packaging | Reel | |
| Mount Type | Surface | |
| Package/Case | 6032-28 | |
| Polarity | Polar | |
| Equivalent Series Resistance ESR | 1.6Ω | |
| Automotive Standard | AEC-Q200 | |
| Tolerance ± | -20% | |
| Terminal Type | Surface Mount | |
| Minimum Operating Temperature | -55°C | |
| Hermetic Seal | No | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Depth | 3.2mm | |
| Standards/Approvals | RoHS | |
| Series | TAJ | |
| Height | 2.6mm | |
| Length | 6mm | |
| Electrolyte Type | Solid | |
| Surge Voltage | 26V | |
| Dissipation Factor | 6% | |
| Leakage Current | 4.4μA | |
| Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Technology Tantalum | ||
Product Type Tantalum Capacitor | ||
Capacitance 22μF | ||
Voltage 20V dc | ||
Packaging Reel | ||
Mount Type Surface | ||
Package/Case 6032-28 | ||
Polarity Polar | ||
Equivalent Series Resistance ESR 1.6Ω | ||
Automotive Standard AEC-Q200 | ||
Tolerance ± -20% | ||
Terminal Type Surface Mount | ||
Minimum Operating Temperature -55°C | ||
Hermetic Seal No | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Depth 3.2mm | ||
Standards/Approvals RoHS | ||
Series TAJ | ||
Height 2.6mm | ||
Length 6mm | ||
Electrolyte Type Solid | ||
Surge Voltage 26V | ||
Dissipation Factor 6% | ||
Leakage Current 4.4μA | ||
TAJ Standard Series 20 to 50Vdc
TAJ Series are General Purpose SMT Chip Tantalum Capacitors
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
