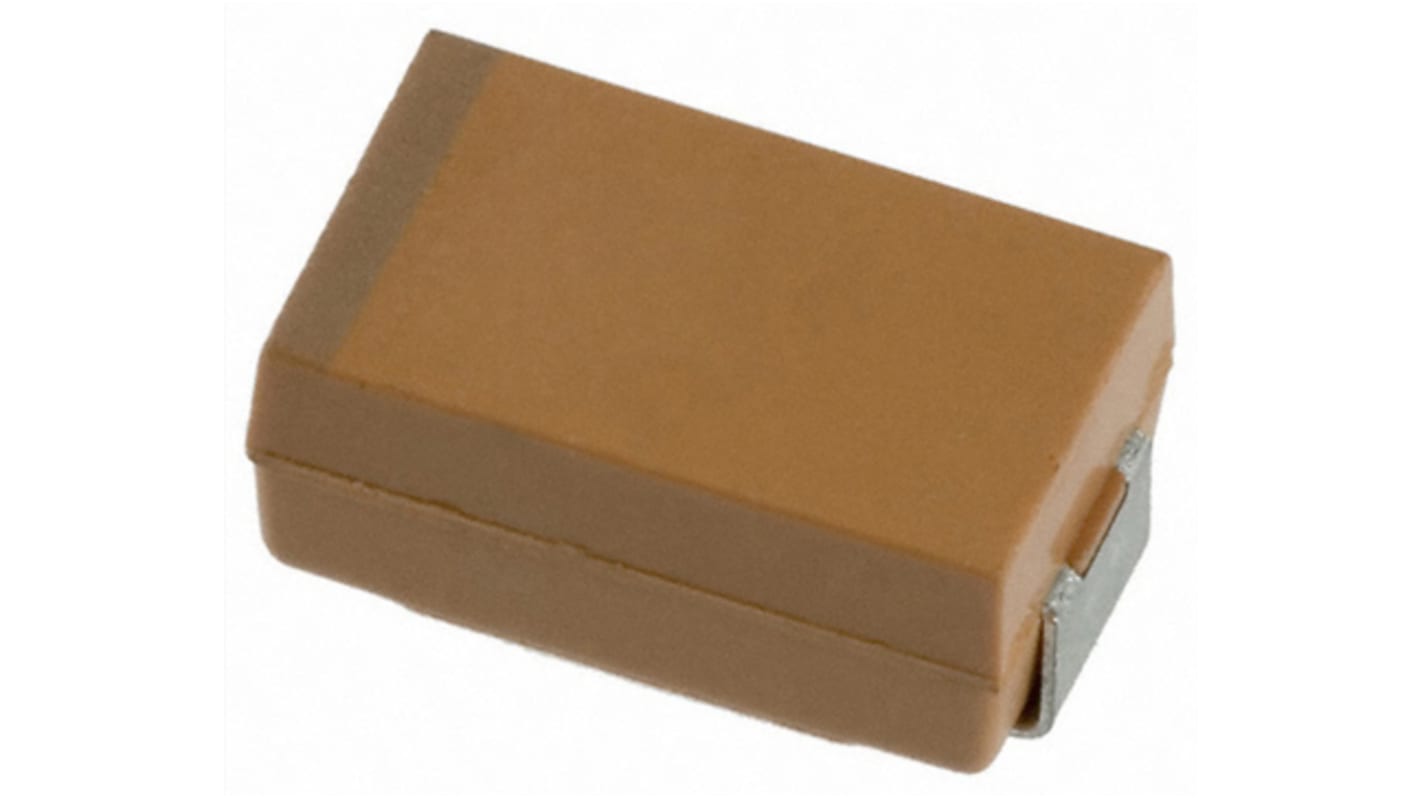

KYOCERA AVX 100μF Electrolytic Tantalum Capacitor 20V dc, TPS Series

View all Tantalum Capacitors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
136-0064P
Mfr. Part No.:
TPSD107K020R0085
Brand:
KYOCERA AVX
Find similar products by selecting one or more attributes.
Select all

Brand

KYOCERA AVX

Technology

Electrolytic

Capacitance

100µF

Voltage

20V dc

Mounting Type

Surface Mount

Package/Case

2917

Equivalent Series Resistance

85mΩ

Lead Pitch

4.4mm

Length

7.3mm

Height

2.9mm

Dimensions

7.3 x 4.3 x 2.9mm

Series

TPS

Electrolyte Type

Solid

Maximum Operating Temperature

+125°C

Surge Voltage

16 V dc @ +125 °C, 26 V dc @ +85 °C

Dielectric Material Family

Tantalum

Minimum Operating Temperature

-55°C

Terminal Type

SMT

Polarised

Polar

Leakage Current

20 μA

Dissipation Factor

6%

AVX TPS (D) Series of Tantalum Capacitors


The TPS series from AVX offers a wide range of low ESR solid electrolyte capacitors. These robust capacitors have a CV range 0.15-1500μF / 2.5-50V and are available in 14 different case sizes. AVX’s TPS Mn02 capacitors are an excellent choice for power supply applications as well as medium power DC/DC converters.

Features & Benefits


Low ESR series of solid electrolyte capacitors
CV range 0.15-1500μF / 2.5-50V
Available in 14 different case sizes

Applications


Power supply applications
Medium power DC/DC converters
